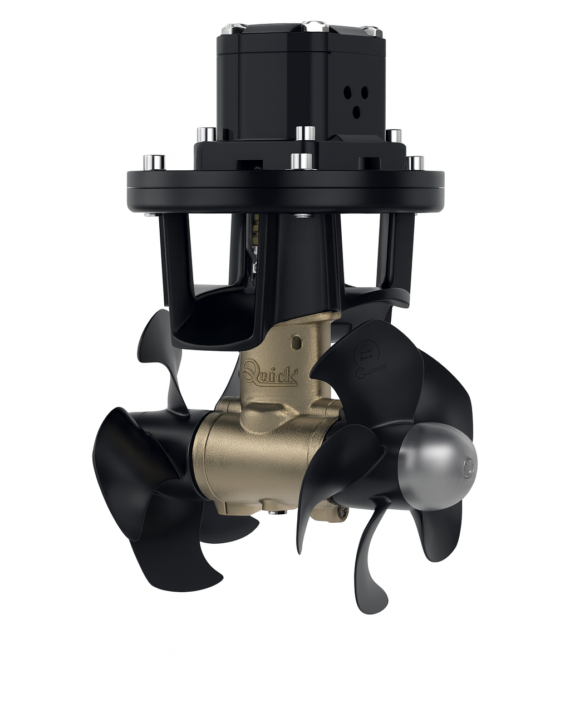

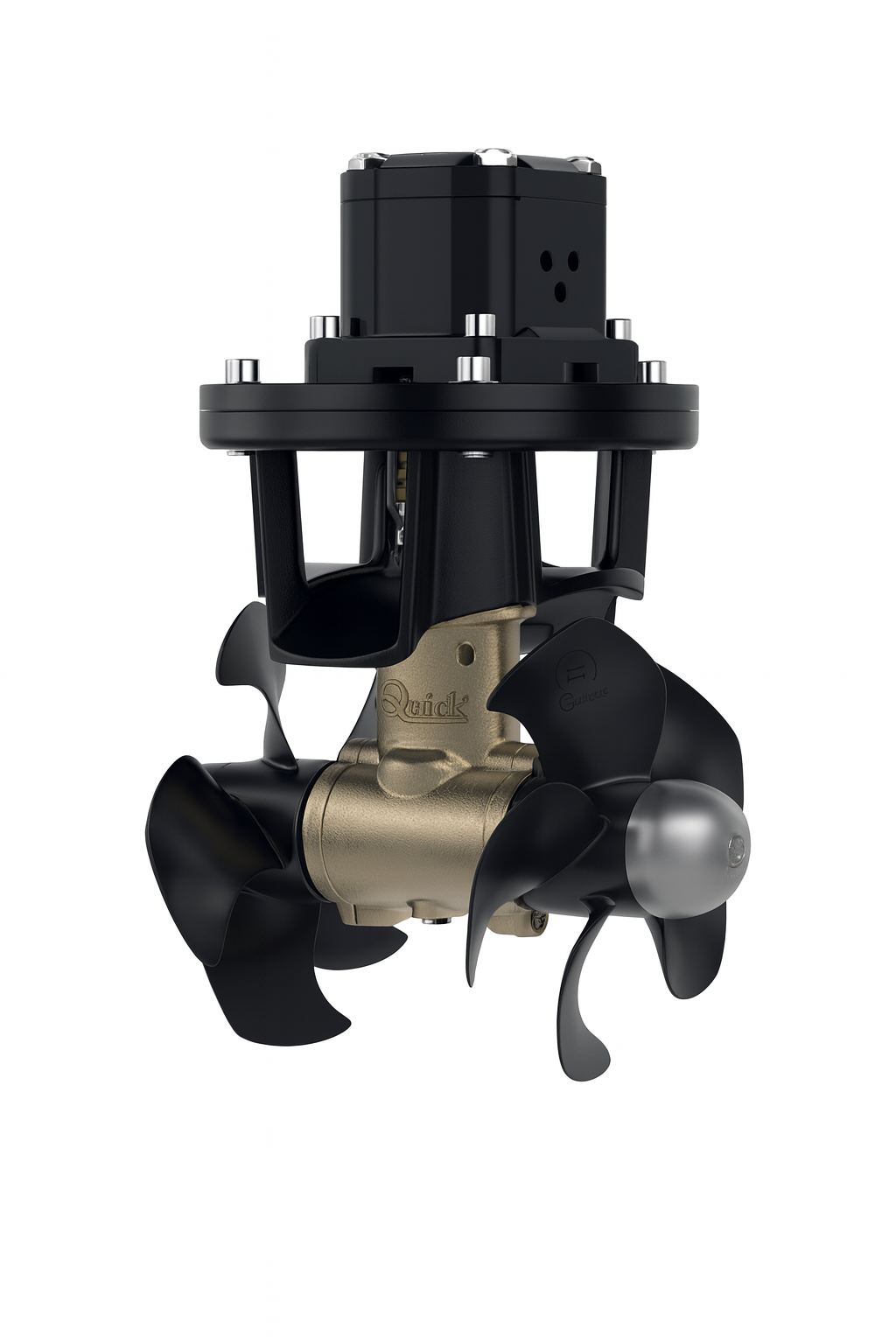

HYDRAULIC THRUSTER BTH185 Ø 185 mm – Twin counter – Rotating propellers – boat length from 10 – 18 m

€1,940.50 ex. VAT 19%

Hydraulic thrusters

Quick enters the hydraulic world by powering its thrusters with reversible hydraulic motors gears type made in Italy. High quality production, assembly and testing standards as well as special, specific marine environment treatments make Quick hydraulic thrusters a safe and reliable, component.

BTH 185 – Double counter – Rotating thruster
• Double propeller made in sturdy composite material
• Recommended boat length 10-18 m (33-59 ft)
• Gearbox in bronze
• Zinc anode independent from the gearbox and hence easy replaceable
• Equipped with elastic coupling.

Ordering Information

HYDRAULIC THRUSTER BTH185 Ø 185 mm – Twin counter – Rotating propellers – boat length from 10 – 18 m

Part No. Description Price ex. VAT 19%
FGBT185HY100A00 Twin counter rotating props – 105KGF – Hydraulic – Ø 185 mm – 8,0kW € 1,940.50

Specifications

General specifications
Model BTH 185-105
Propulsion system Double Propeller
Ø Tunnel 185 mm
7″ 9/32
Motor Type Reversible gear-type
Displacement 0,39 in3 / 6,4 cc
Boat Size (the indication may vary according to the boat type) 14 – 18 m
46 – 59 ft
Weight 11,8 kg / 26 lbs
Flow Rate 7,4U SGpm
28,0 lt/min
Pressure (Values of regulation recommended by QUICK) 2760 psi / 190 bar
Power (Values of regulation recommended by QUICK)
 10.7 Hp / 8,0 Kw
Thrust 105 Kgf / 231.5 lbs
