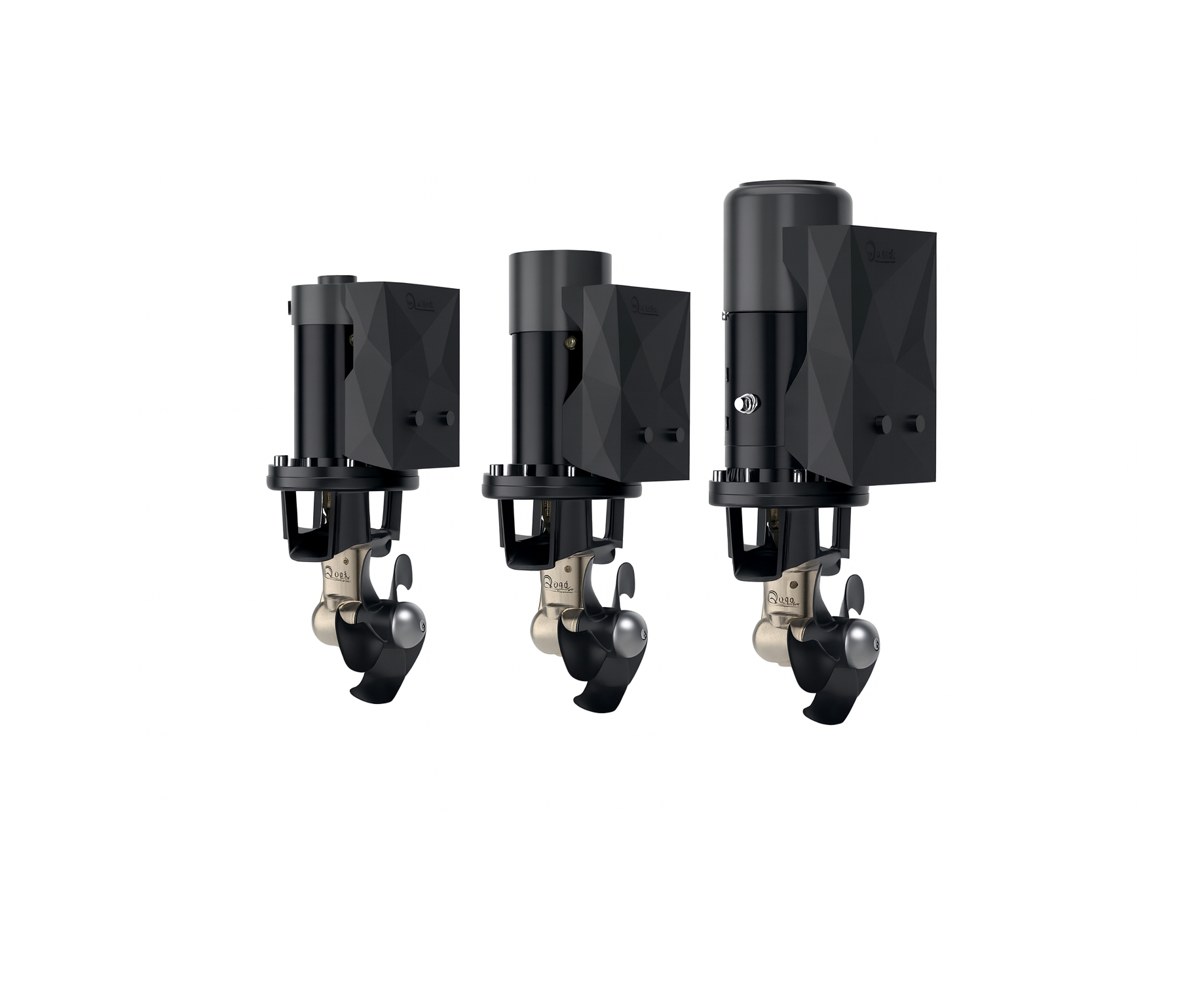

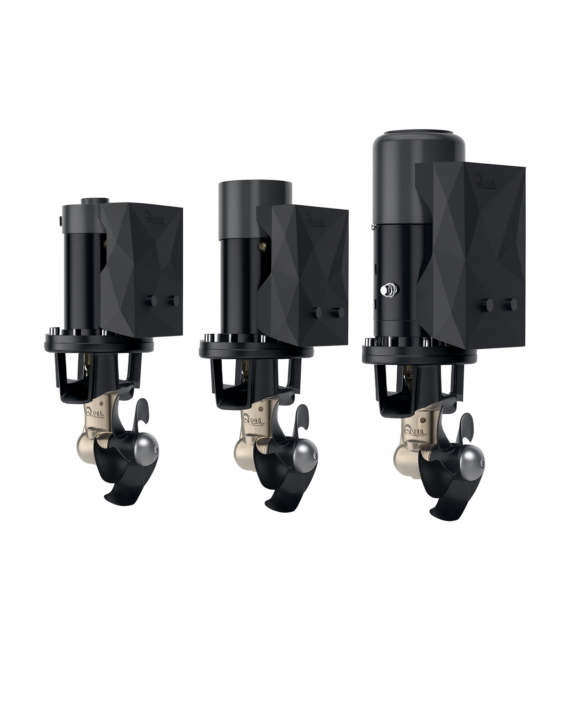

DC THRUSTER BTQ 185 Ø 185 mm – Single propeller – boat length from 8 – 15 m

€1,878.50–€3,670.00 ex. VAT 19%

Clear

Quick bow thrusters
Mooring is not always a straightforward operation, especially when beyond not ideal wind and sea conditions a scarce space availability adds up.
This is the reason why today bow thrusters have become a very common way to render manoeuvrability of the vessel practical and functional, through remote commands.
The model choice covers the needs of boats with a length from 8 to 30 metres and a thrust range from 20 to 400 KGF.

BTQ 185 – Single propeller
• Single propeller made in sturdy composite material
• Recommended boat length from 8-15 m (26-49 ft)

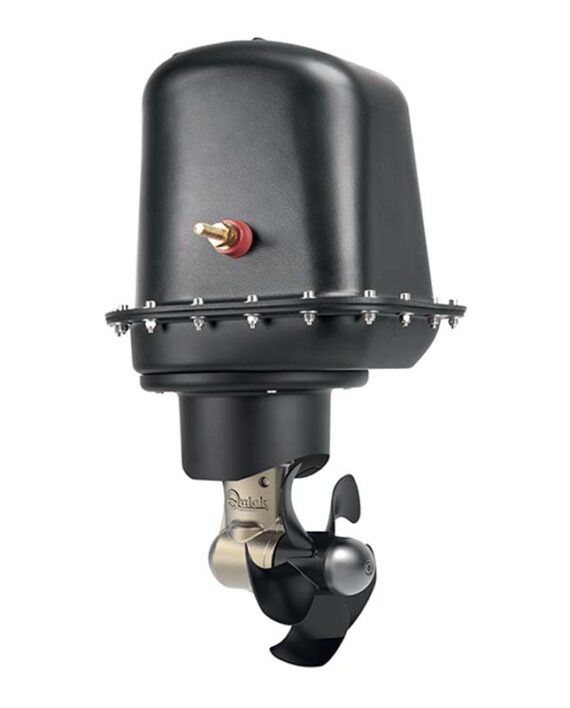

• Solenoids protection carter in sturdy composite material
• Gearbox in bronze
• Zinc anode independent from the gearbox and hence easily replaceable
• Equipped with elastic coupling.

Ordering Information

DC THRUSTER BTQ 185 Ø 185 mm – Single propeller – boat length from 8 – 15 m

Part No. Description Price ex. VAT 19%
BTQ1805512 1 single prop – 55KGF – 12V – Ø 185 mm – 3.0kW € 1,878.50
BTQ1805524 1 single prop – 55KGF – 24V – Ø 185 mm – 3.0kW € 1,936.50
BTQ1807512 1 single prop – 75KGF – 12V – Ø 185 mm – 4.0kW € 2,135.00
BTQ1807524 1 single prop – 75KGF – 24V – Ø 185 mm – 4.0kW € 2,176.00
BTQ1809512 1 single prop – 95KGF – 12V – Ø 185 mm – 6.0kW € 3,670.00
BTQ1809524 1 single prop – 95KGF – 24V – Ø 185 mm – 6.0kW € 3,670.00

Specifications



General specifications
Models BTQ1805512 BTQ1805524 BTQ1807512 BTQ1807524 BTQ1809512 BTQ1809524
Propulsion system single propeller single propeller single propeller single propeller single propeller single propeller
Tunnel Diameter 185 mm
7 9/32″		 185 mm
7 9/32″		 185 mm
7 9/32″		 185 mm
7 9/32″		 185 mm
7 9/32″		 185 mm
7 9/32″
Motor Power 3 kW 3 kW 4 kW 4 kW 6 kW 6 kW
Voltage 12 V 24 V 12 V 24 V 12 V 24 V
Thrust 55 Kgf (121.2 lbs) 55 Kgf (121.2 lbs) 75 Kgf (163.3 lbs) 75 Kgf (163.3 lbs) 95 Kgf (209.5 lbs) 95 Kgf (209.5 lbs)
Weight 17,2kg/37.8lbs 17,5kg/38.5lbs 17,5kg/38.5lbs 20,5kg/45.1lbs 27,2kg/59.8lbs 24,4kg/53.7lbs
Boat Size
 8 – 11 m
26 – 36 ft		 8 – 11 m
26 – 36 ft		 10 – 13 m
33 – 43 ft		 10 – 13 m
33 – 43 ft		 12 – 15 m
39 – 49 ft		 12 – 15 m
39 – 49 ft
