DC THRUSTER BTQ 300 Ø 300 mm – Double counter – Rotating propellers – boat length from 20 – 30 m

€6,271.00–€8,499.00 ex. VAT 19%

Clear

Quick bow thrusters
Mooring is not always a straightforward operation, especially when beyond not ideal wind and sea conditions a scarce space availability adds up.
This is the reason why today bow thrusters have become a very common way to render manoeuvrability of the vessel practical and functional, through remote commands.
The model choice covers the needs of boats with a length from 8 to 30 metres and a thrust range from 20 to 400 KGF.

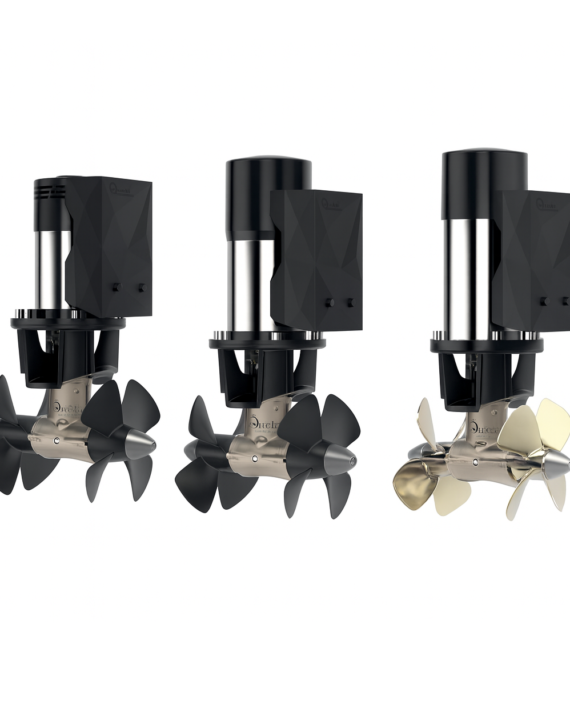

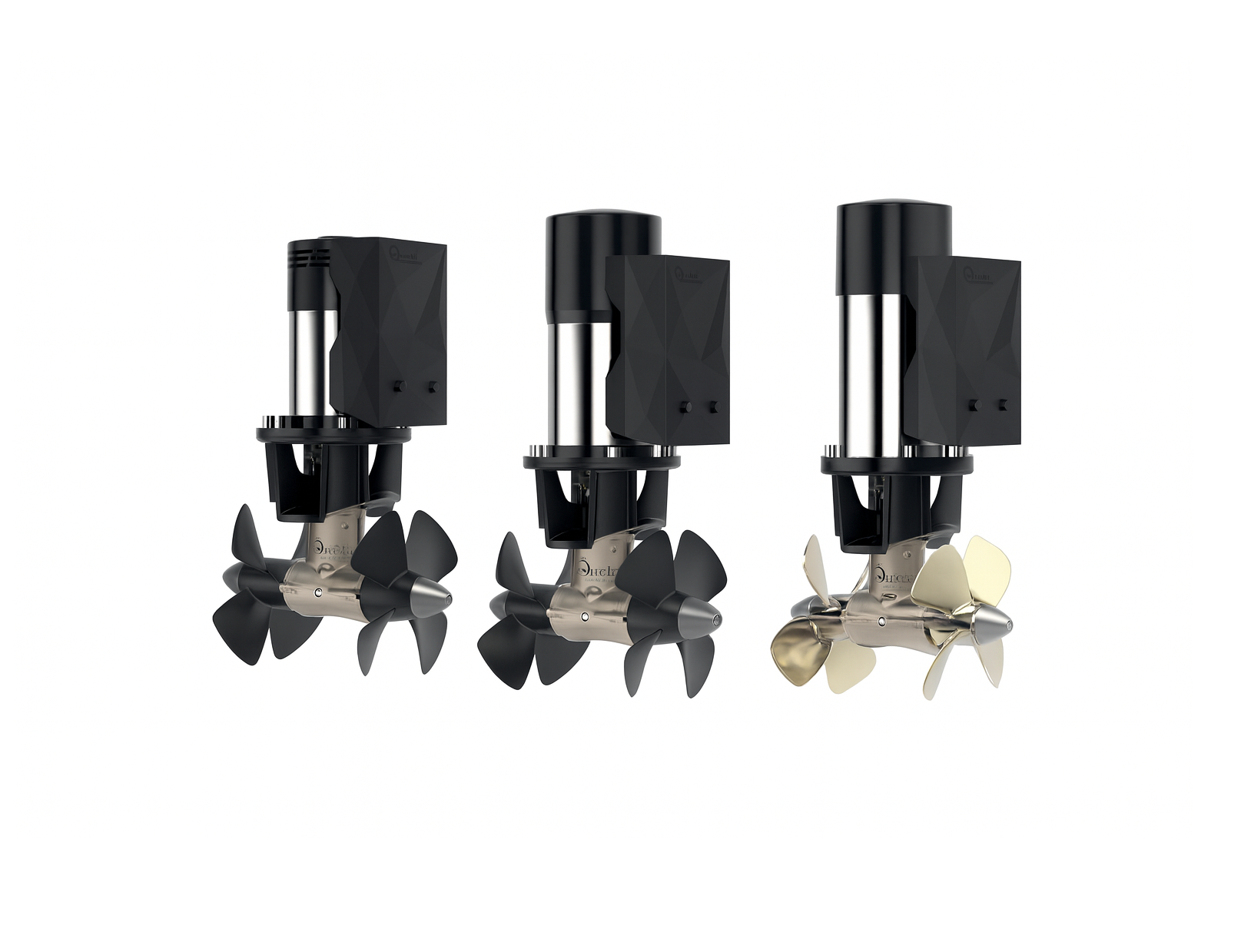

BTQ 300 – Double counter – Rotating propellers
• Double propellers made in sturdy composite material (BTQ 300-300 NIBRAL)
• Recommended boat length from 20-30 m (65-99 ft)
• Solenoids protection carter in sturdy composite material
• Gearbox in bronze
• Zinc anode independent from the gearbox and hence easily replaceable
• Equipped with elastic coupling.

Ordering Information

DC THRUSTER BTQ 300 Ø 300 mm – Double counter – Rotating propellers – boat length from 20 – 30 m

Part No. Description Price ex. VAT 19%
BTQ3025024 Twin counter rotating props – 250KGF – 24V – Ø 300 mm – 10.0kW € 6,271.00
BTQ3027024 Twin counter rotating props – 270KGF – 24V – Ø 300 mm – 12.0kW € 7,071.00
BTQ3030048N Twin counter rotating props – 300KGF – 48V – Ø 300 mm – 15.0kW € 8,499.00

Specifications



General specifications
Models BTQ3025024 BTQ3027024 BTQ3030048
Propulsion system Double propeller Double propeller Double propeller (NIBRAL)
Tunnel Diameter 300 mm
11″ 13/16		 300 mm
11″ 13/16		 300 mm
11″ 13/16
Motor Power 10 kW 12 kW 15 kW
Voltage 24 V 24 V 48 V
Thrust 250 Kgf(551lbs) 270 Kgf(595lbs) 300 Kgf (660 lbs)
Weight 48,0 kg
105.8 lbs		 55,2 kg
121.7 lbs		 58,2 kg
128.3 lbs
Boat Size
 20 – 26 m
65 – 85 ft		 23 – 30 m
75 – 99 ft		 20 – 26 m
65 – 85 ft
