DC THRUSTER BTQ 125 Ø 125 mm – Single propeller – boat length from 6 – 9 m

1,135.501,307.50 ex. VAT 19%

Clear

Quick bow thrusters
Mooring is not always a straightforward operation, especially when beyond not ideal wind and sea conditions a scarce space availability adds up.
This is the reason why today bow thrusters have become a very common way to render manoeuvrability of the vessel practical and functional, through remote commands.
The model choice covers the needs of boats with a length from 8 to 30 metres and a thrust range from 20 to 400 KGF.

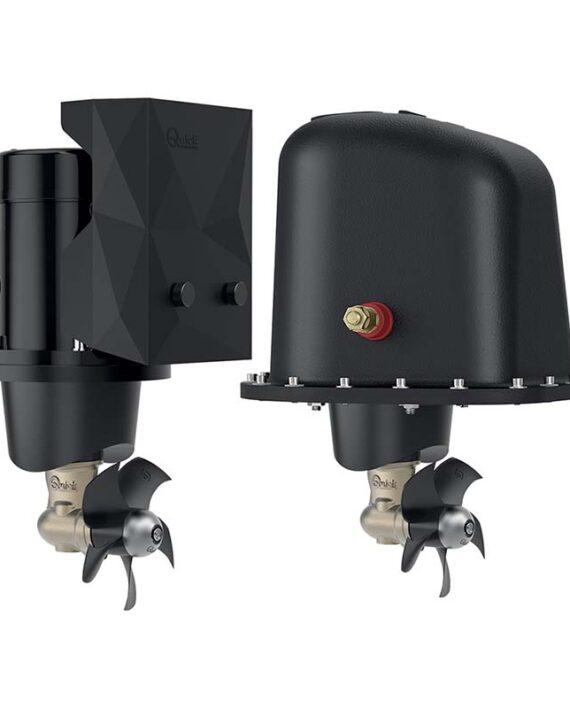

BTQ 125 – Single propeller
• Single propeller made in sturdy composite material
• Recommended boat length from 6-9 m (20-29 ft)
• Solenoids protection carter in sturdy composite material
• Gearbox in bronze
• Zinc anode independent from the gearbox and hence easily replaceable
• Equipped with elastic coupling.

Ordering Information

DC THRUSTER BTQ 125 Ø 125 mm – Single propeller – boat length from 6 – 9 m

Part No. Description Price ex. VAT 19%
BTQ1253012 1 single prop – 30KGF – 12V – Ø 125 mm – 1.5kW €1.135.50
BTQ1254012 1 single prop – 40KGF – 12V – Ø 125 mm – 2.2kW €1,307.5

Specifications



General specifications
Models BTQ 125-30 BTQ 125-40
Propulsion system single propeller single propeller
Tunnel Diameter 125 mm
5″
125 mm
5″
Motor Power 1.5 kW 2.2 kW
Voltage 12 V 12 V
Thrust 30 Kgf (66.1 lbs) 40 Kgf (88.2 lbs)
Weight 18 kg / 39.7 lbs 18,3 kg/40.3 lbs
Boat Size (the indiction may vary according to the boat type)
6 – 8,5 m
20-28 ft
7 – 9 m
23-29 ft

SKU: N/A Categories: ,
