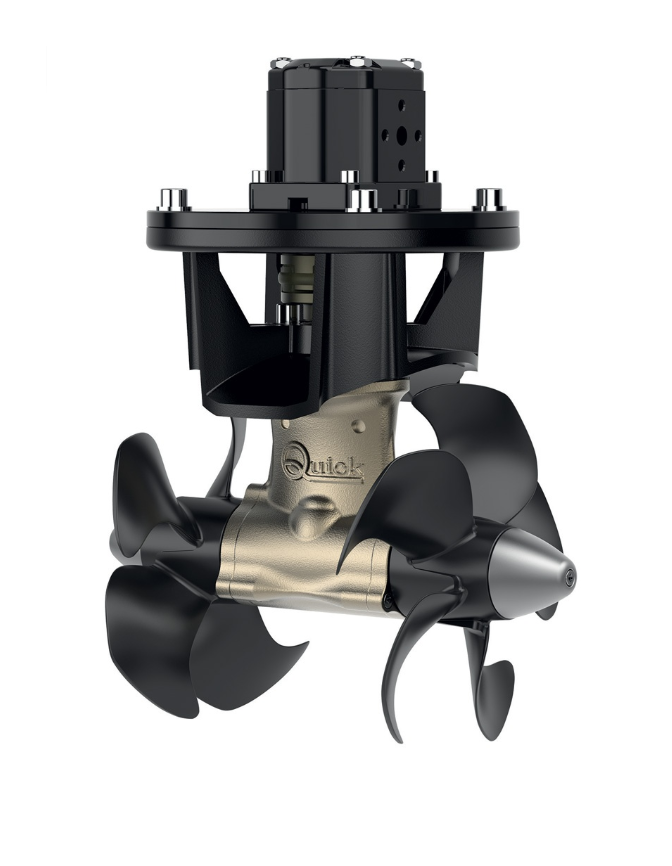

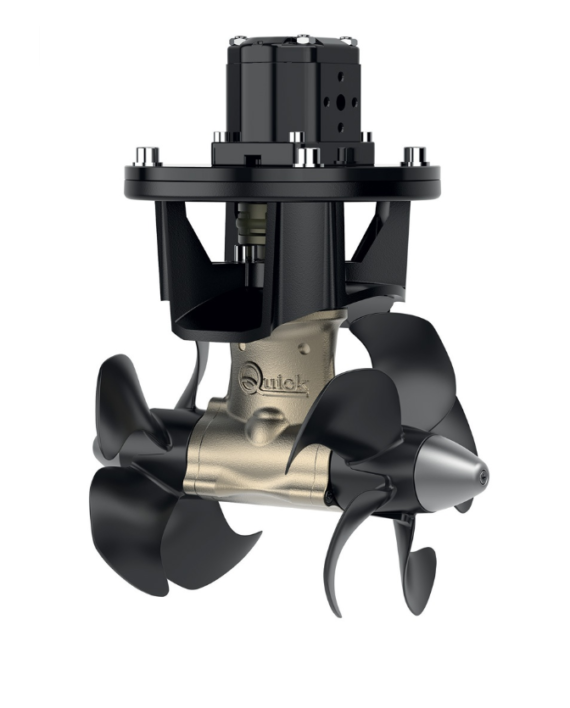

HYDRAULIC THRUSTER BTH250 Ø 250 mm – Twin counter – Rotating propellers – boat length from 16 – 22 m

€2,305.00–€2,790.00 ex. VAT 19%

Clear

Hydraulic thrusters

Quick enters the hydraulic world by powering its thrusters with reversible hydraulic motors gears type made in Italy. High quality production, assembly and testing standards as well as special, specific marine environment treatments make Quick hydraulic thrusters a safe and reliable, component.

BTH 250 – Double counter – Rotating thruster
• Double propeller made in sturdy composite material
• Recommended boat length 16-22 m (52-72 ft)
• Gearbox in bronze
• Zinc anode independent from the gearbox and hence easy replaceable
• Equipped with elastic coupling.

Ordering Information

HYDRAULIC THRUSTER BTH250 Ø 250 mm – Twin counter – Rotating propellers – boat length from 16 – 22 m

Part No. Description Price ex. VAT 19%
FGBT250HY150A00 Twin counter rotating props – 150KGF – Hydraulic – Ø 250 mm – 9,2kW € 2,305.00
FGBT250HY220A00 Twin counter rotating props – 220KGF – Hydraulic – Ø 250 mm – 11,2kW € 2,790.00

Specifications

General specifications
Models BTH 250-150 BTH 250-220
Propulsion system Double propeller contra-rotating Double propeller contra-rotating
Ø Tunnel 250 mm
9″ 27/32		 250 mm
9″ 27/32
Motor Type Reversible gear-type Reversible gear-type
Displacement 0,59 in3 / 9,6 cc 0,86 in3 / 14,1 cc
Boat size (the indication may vary according to the boat type) 16 – 20 m
52 – 65 ft		 18 – 22 m
59 – 72 ft
Weight 16,1 kg
35.5 lbs		 16,1 kg
35.5 lbs
Flow Rate 6,75U SGpm
25,5 lt/min		 11,0 U SGpm
41,5 lt/min
Pressure (Values of regulation recommended by QUICK) 3480 psi / 240 bar 2610 psi / 180 bar
Power (Values of regulation recommended by QUICK) 12.3 Hp / 9,2 Kw 15.1 Hp / 11,2 Kw
Thrust 150 Kgf
330 lbs		 220 Kgf
485 lbs
