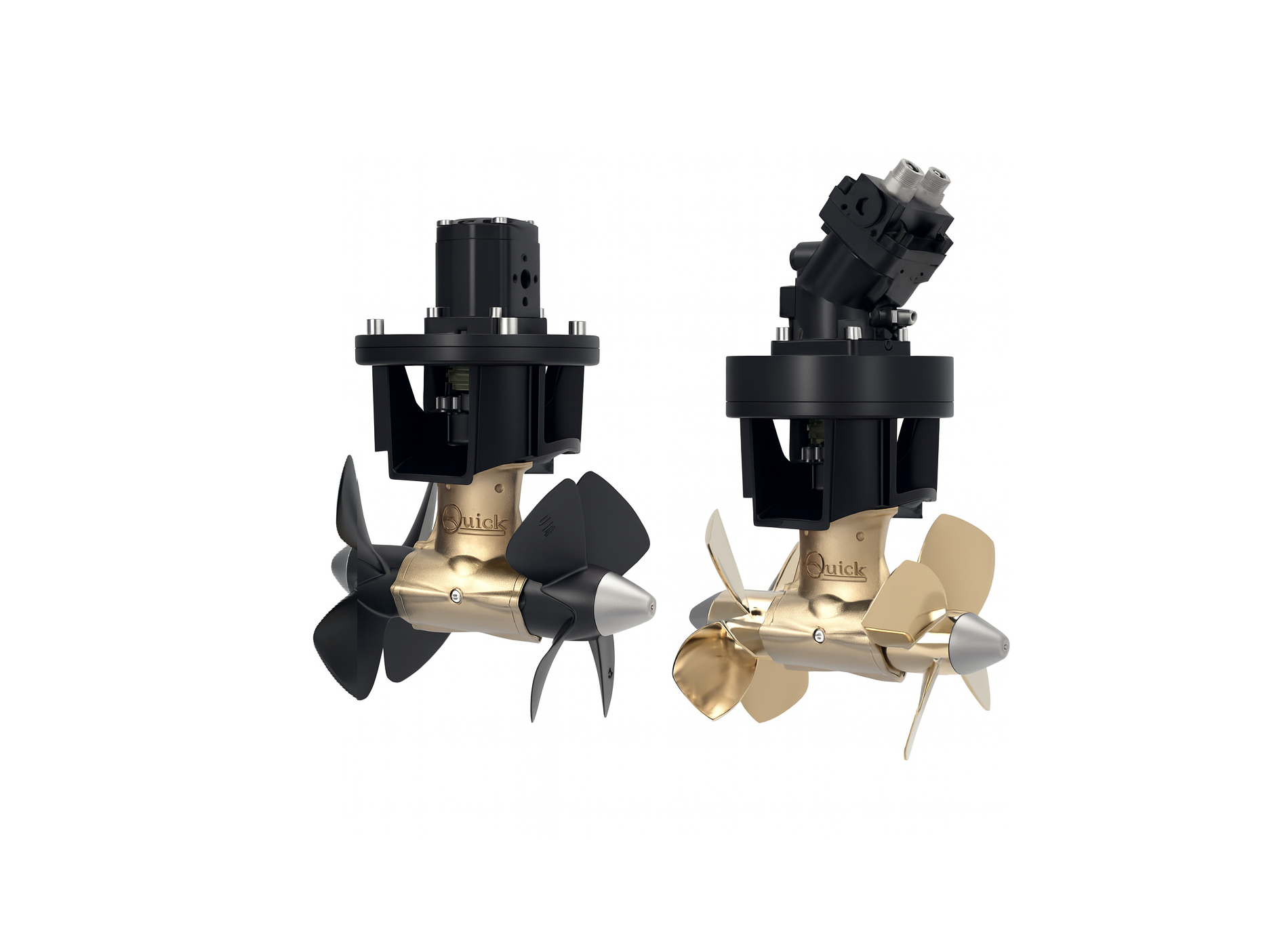

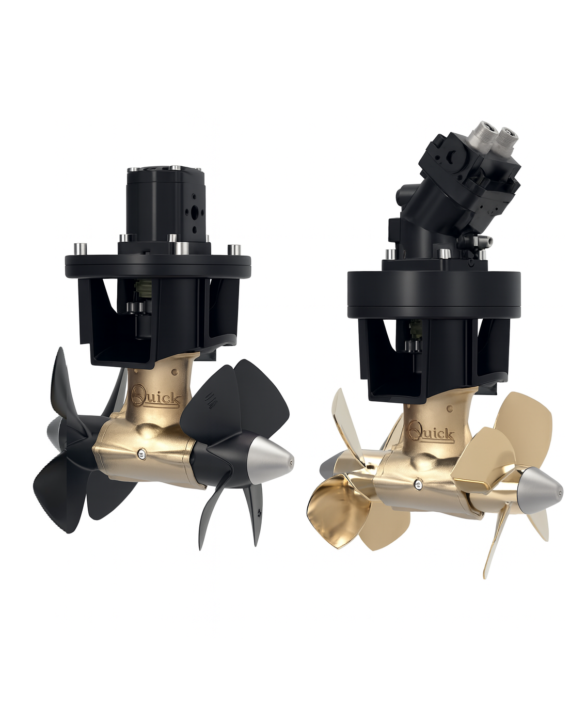

HYDRAULIC THRUSTER BTH300 Ø 300 mm – Twin counter – Rotating propellers – boat length from 22 – 36 m

€3,396.00–€6,009.50 ex. VAT 19%

Clear

Hydraulic thrusters

Quick enters the hydraulic world by powering its thrusters with reversible hydraulic motors gears type made in Italy. High quality production, assembly and testing standards as well as special, specific marine environment treatments make Quick hydraulic thrusters a safe and reliable, component.

BTH 300 – Double counter – Rotating thruster

• Double propeller made in sturdy composite material (BTH 300-400 NIBRAL)
• Recommended boat length 22-36 m (72-118 ft)
• Gearbox in bronze
• Zinc anode independent from the gearbox and hence easy replaceable
• Equipped with elastic coupling.

Ordering Information



HYDRAULIC THRUSTER BTH300 Ø 300 mm – Twin counter – Rotating propellers – boat length from 22 – 36 m

Part No. Description Price ex. VAT 19%
FGBT300HY240A00 Twin counter rotating props – 240KGF – Hydraulic – Ø 300 mm – 15,5kW € 3,119.00
FGBT300HY300A00 Twin counter rotating props – 300KGF – Hydraulic – Ø 300 mm – 20,0kW € 3,234.00
FGBT300HY400A00 Twin counter rotating props – 400KGF – Hydraulic – Ø 300 mm – 24,0kW € 5,203.00

Specifications

General specifications
Models BTH 300-240 BTH 300-300 BTH 300-400
Propulsion system Double propeller contra-rotating Double propeller contra-rotating Double propeller contra-rotating in NIBRAL
Ø Tunnel 300 mm
11″ 13/16		 300 mm
11″ 13/16		 300 mm
11″ 13/16
Motor Type Reversible gear-type Reversible gear-type Reversible gear-type
Displacement 1,09 in3 / 17,9 cc 1,34 in3 / 22,0 cc 1,34 in3 / 22,0 cc
Boat size (the indication may vary according to the boat type) 22 – 26 m
72 – 85 ft		 26 – 30 m
85 – 98 ft		 26 – 36 m
85 – 118 ft
Weight 24,9 kg / 54,9 lbs 26,5 kg / 58.4 lbs 36,0 kg / 79.3 lbs
Flow rate 11,3U SGpm
42,5 lt/min		 15,9 USGpm
60,0 lt/min		 18.5 USGpm
70,0 lt/min
Pressure (Values of regulation recommended by QUICK) 3190psi/220bar 3260psi/225bar 3335psi/230bar
Power (Values of regulation recommended by QUICK) 20.8 Hp / 15,5 Kw 26.8 Hp /  / 20 Kw 32.2 Hp / 24,0 Kw
Thrust 240 Kgf
545 lbs		 300 Kgf
660 lbs		 400 Kgf
880 lbs
