The TCD series remote control systems have been designed to control the stern and bow thrusters. Manufactured by Quick®.

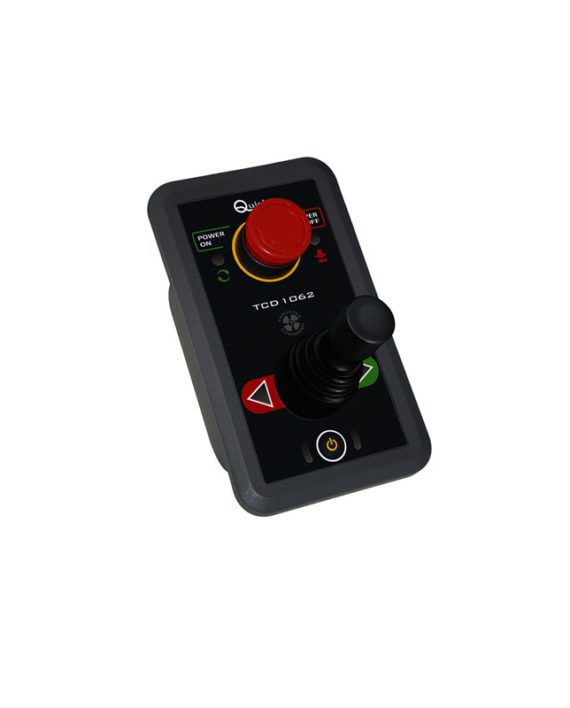

TCD1062 Joystick control panel + emergency button
€438.00 ex. VAT 19%
Joystick remote control TCD 1062 and integrated main switch command.
Ordering Information
TCD1062 Joystick control panel + emergency button
| Part No. | Description | Price ex. VAT 19% |
|---|---|---|
| TCD1062 | TCD1062 Joystick control panel + emergency button | €438.00 |
Specifications
| General specifications | |
|---|---|
| Model | TCD 1062 |
| Current capacity of thruster commands | 4A max |
| Supply Voltage (with power supply voltage less than 8 Vdc the control panel can reset) | from 8 to 31 Vdc |
| Current absorption at rest (typical value with control panel disabled) | 10 mA |
| Operating temperature | from -20 to +70 °C |
| Protection Rating (Excluding the back of the control panel – IP20) | IP66 |
| Dimensions including frame (W x H x D) | 78 x 131 x 113 mm 3″ 5/64 x 5″ 5/32 x 4″ 11/32 |
| Weight | 270 g / 0,59 lb |
