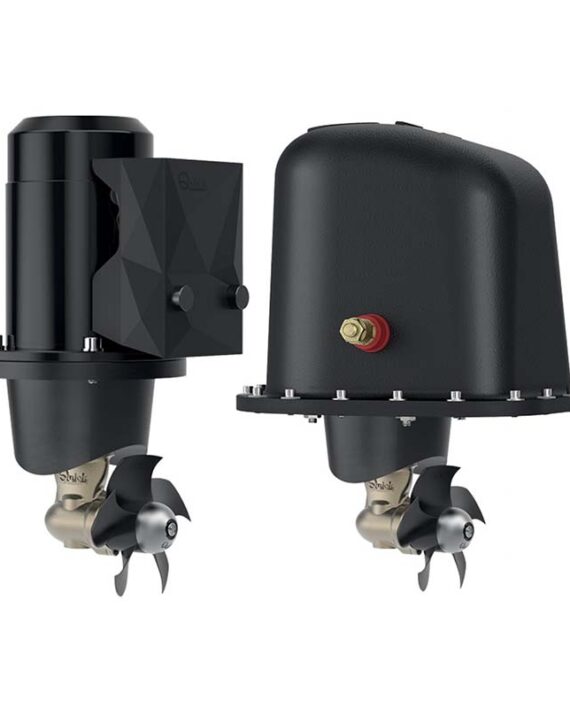

DC THRUSTER BTQ 110-25 Ø 110 mm – 1.3kW – Single propeller – boat length from 5 – 7,5 m

988.50 ex. VAT 19%

Quick bow thrusters
Mooring is not always a straightforward operation, especially when beyond not ideal wind and sea conditions a scarce space availability adds up.
This is the reason why today bow thrusters have become a very common way to render manoeuvrability of the vessel practical and functional, through remote commands.
The model choice covers the needs of boats with a length from 8 to 30 metres and a thrust range from 20 to 400 KGF.

BTQ 110- Single propeller
• Single propeller made in sturdy composite material
• Recommended boat length from 5-7,5 m (16-25 ft)
• Solenoids protection carter in sturdy composite material
• Gearbox in bronze
• Zinc anode independent from the gearbox and hence easily replaceable
• Equipped with elastic coupling.



Ordering Information

DC THRUSTER BTQ 110-25 Ø 110 mm – 1.3kW – Single propeller – boat length from 5 – 7,5 m

Part No. Description Price ex. VAT 19%
BTQ1102512 1 single prop – 25KGF – 12V – Ø 110 mm – 1.3kW € 988.50

Specifications



General specifications
Model BTQ 110-25
Propulsion system Single Propeller
Tunnel Diameter 110 mm
4″ 21/64
Motor Power 1.3 kW
Voltage 12 V
Thrust 25 Kgf (55.1 lbs)
Weight 9,8 kg / 21.6 lbs
Boat Size (the indiction may vary according to the boat type) 5 – 7,5 m
16- 25 ft
