DC THRUSTER BTQ 250 Ø 250 mm – Double counter – Rotating propellers – boat length from 13 – 21 m

€4,623.50–€4,669.50 ex. VAT 19%

Clear

Quick bow thrusters
Mooring is not always a straightforward operation, especially when beyond not ideal wind and sea conditions a scarce space availability adds up.
This is the reason why today bow thrusters have become a very common way to render manoeuvrability of the vessel practical and functional, through remote commands.
The model choice covers the needs of boats with a length from 8 to 30 metres and a thrust range from 20 to 400 KGF.

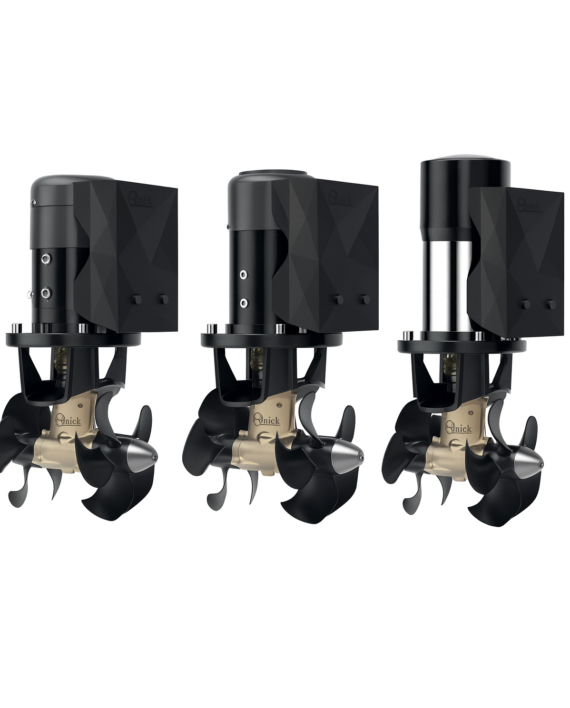

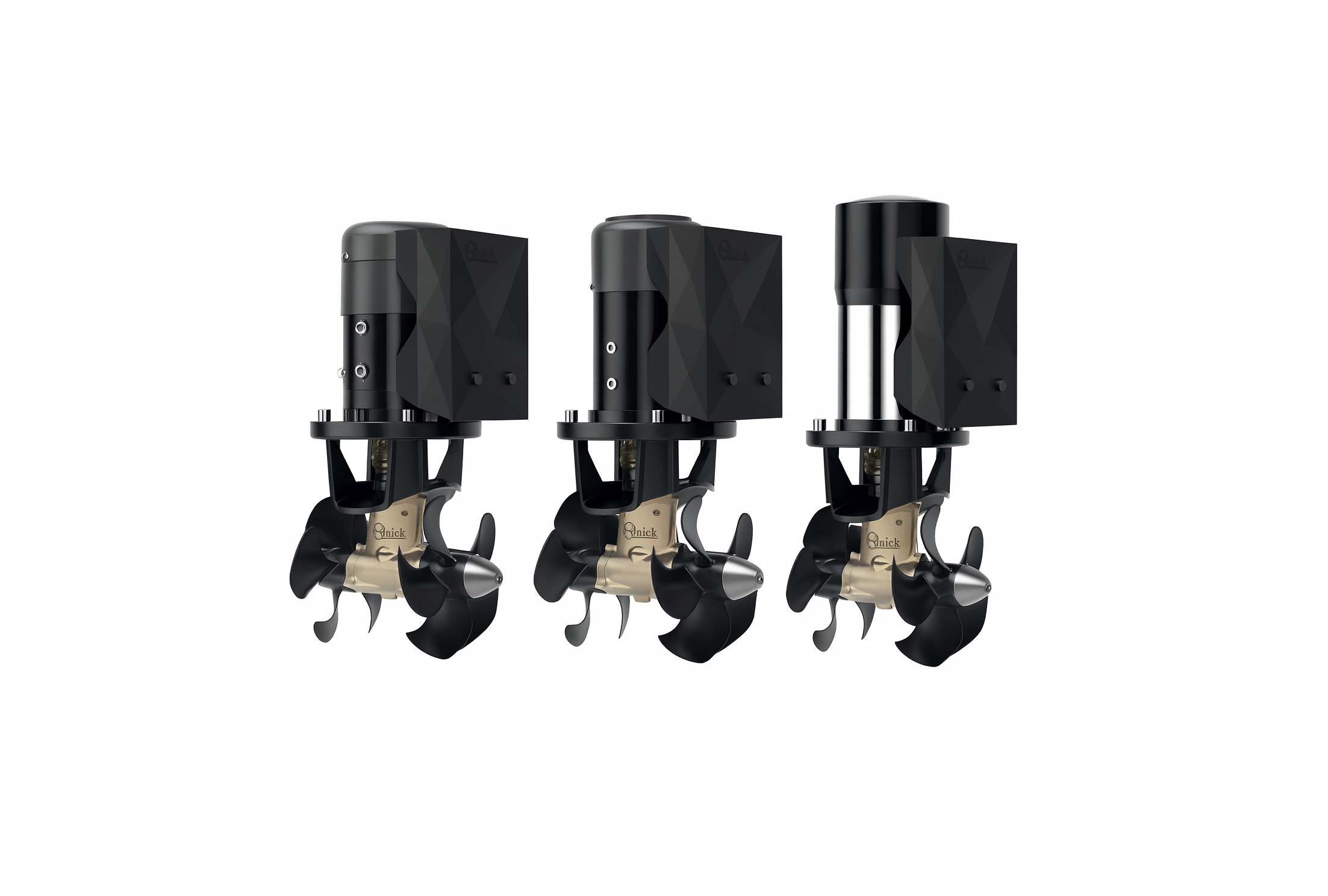

BTQ 250 – Double counter – Rotating propellers
• Double propellers made in sturdy composite material
• Recommended boat length from 14-21 m (45-69 ft)
• Solenoids protection carter in sturdy composite material
• Gearbox in bronze
• Zinc anode independent from the gearbox and hence easily replaceable
• Equipped with elastic coupling.

Ordering Information

DC THRUSTER BTQ 250 Ø 250 mm – Double counter – Rotating propellers – boat length from 13 – 21 m

Part No. Description Price ex. VAT 19%
BTQ2512012 Twin counter rotating props – 120KGF – 12V – Ø 250 mm – 6.5kW € 4,623.50
BTQ2512024 Twin counter rotating props – 120KGF – 24V – Ø 250 mm – 6.5kW € 4,623.50
BTQ2514024 Twin counter rotating props – 140KGF – 24V – Ø 250 mm – 8.0kW € 4,669.50
BTQ2524024 Twin counter rotating props – 240KGF – 24V – Ø 250 mm – 10.0kW € 4,669.50

Specifications



General specifications
Models BTQ2512012 BTQ2512024 BTQ2514024 BTQ2524024
Propulsion system Double propeller Double propeller Double propeller Double propeller
Tunnel Diameter 250 mm
9″ 27/32		 250 mm
9″ 27/32		 250 mm
9″ 27/32		 250 mm
9″ 27/32
Motor Power 6.5 kW 6.5 kW 8 kW 10 kW
Voltage 12 V 24 V 24 V 24 V
Thrust 120 Kgf (264 lbs) 120 Kgf (264 lbs) 140 Kgf (309 lbs) 240 Kgf (529 lbs)
Weight 36,6 kg/80.7 lbs 36,6 kg/80.7 lbs 39,5 kg/87.1 lbs 50,0 kg/110.2 lbs
Boat Size
 13 – 17 m
42 – 55 ft		 13 – 17 m
42 – 55 ft		 14 – 18 m
45 – 59 ft		 16 – 21 m
52 – 69 ft
