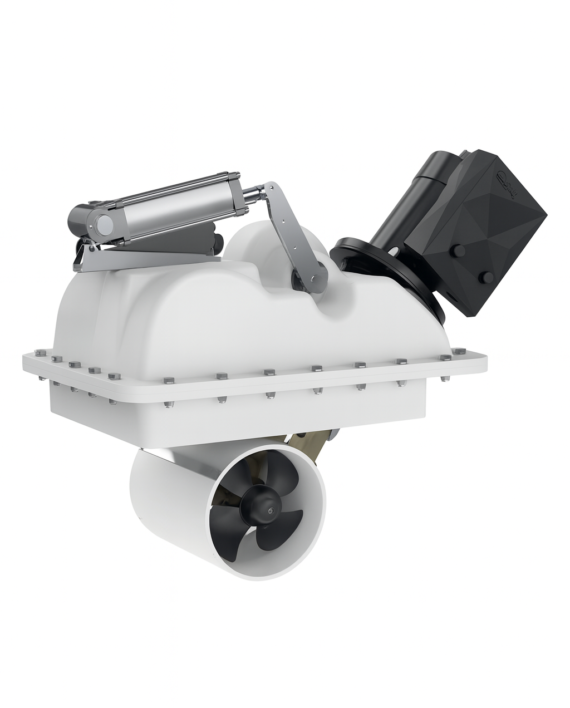

SPECIAL OFFER! DC RETRACT THRUSTER BTR185 Ø 185 mm – Twin counter – Rotating propellers – 6,3kW – boat length from 12 – 15 m

6,710.00 3,200.006,710.00 ex. VAT 19%

Clear

Retractable thrusters

To complete its thrusters range, Quick offers its version of the disappearing propeller for highly performing yachts combining and critically re-elaborating existing market products.

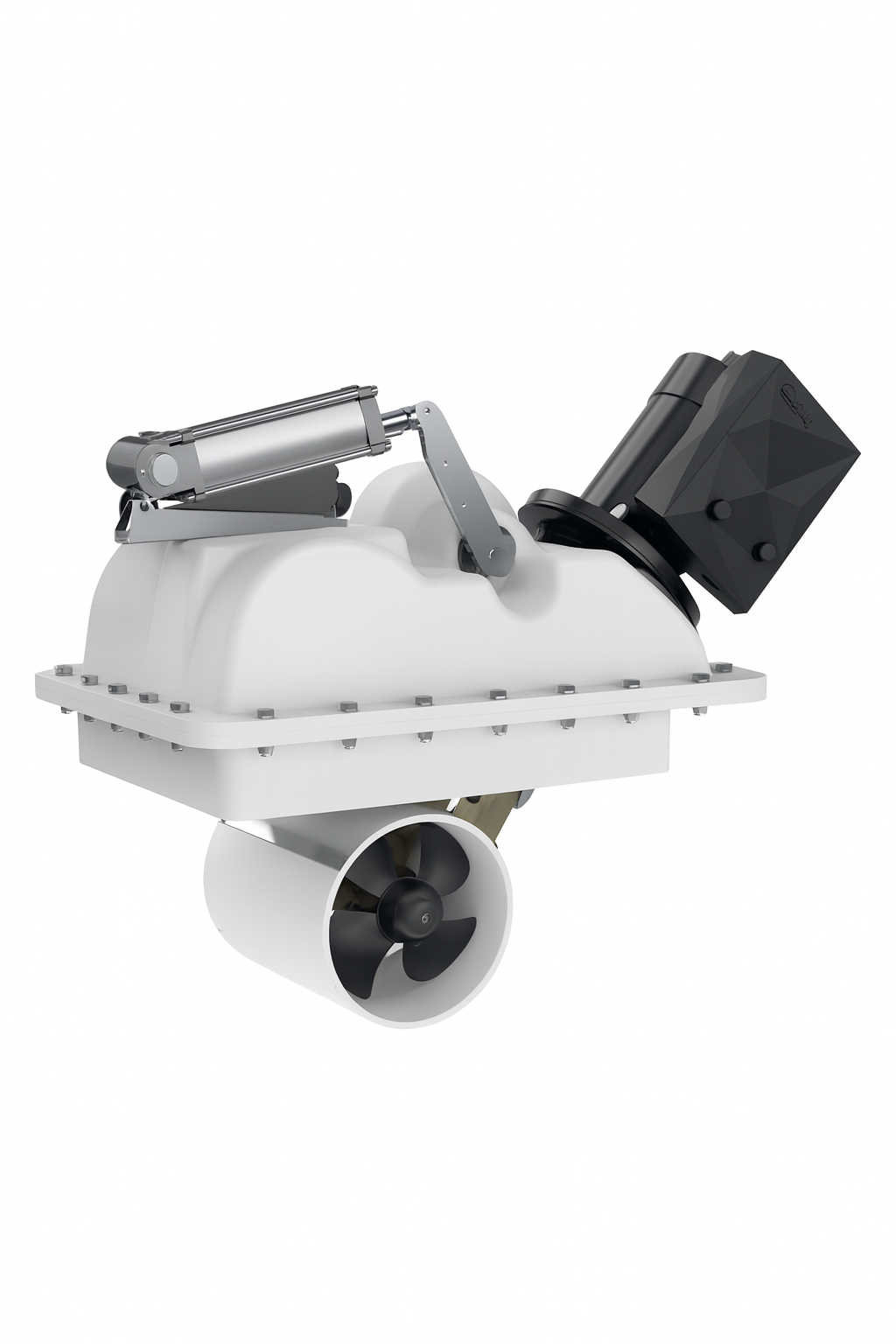

BTR 185 – Double counter – Rotating retractable thruster

The presence of a composite, aluminium or steel counter flange, separated from the system’s supporting structure, makes the installation of the entire system easy, safe and compliant to current regulations on joints requirements.
The engine joined to the structure inside the keel, and a single moving body crossing the in-out barrier as well as a protection against mechanical overloading caused by accidental impacts when the system is open, make the Quick projet especially safe.
A further guarantee of reliability is the high quality materials (Nibrall and AISI316) used for both designed and commercial parts.
High galvanic protection by means of sacrificial anodes.
Reduced sizes and integrated electronics complete the list of BTR Quick propeller advantages.

Ordering Information



DC RETRACT THRUSTER BTR185 Ø 185 mm – Twin counter – Rotating propellers – 6,3kW – boat length from 12 – 15 m

Part No. Description Price ex. VAT 19%
BTR1810512 Retract – Twin counter rotating props – 105KGF – 12V – Ø 185 mm – 6,3kW € 6,710.00
BTR1810524 Retract – Twin counter rotating props – 105KGF – 24V – Ø 185 mm – 6,3kW € 6,710.00

Specifications

General specifications
Models BTR 185-105 BTR 185-105
Propulsion system 2 Counter rotating 2 Counter rotating
Ø Tunnel 185 mm
7″ 9/32
185 mm
7″ 9/32
Motor Power 6,3 kW 6,3 kW
Voltage 12 V 24 V
Thrust 105 kgf (231.5 lbs) 105 kgf (231.5 lbs)
Weight 57 kg / 125.6 lbs 54,5 kg / 120.1 lbs
Boat size 12 – 15 m
39 – 49 ft
12 – 15 m
39 – 49 ft
