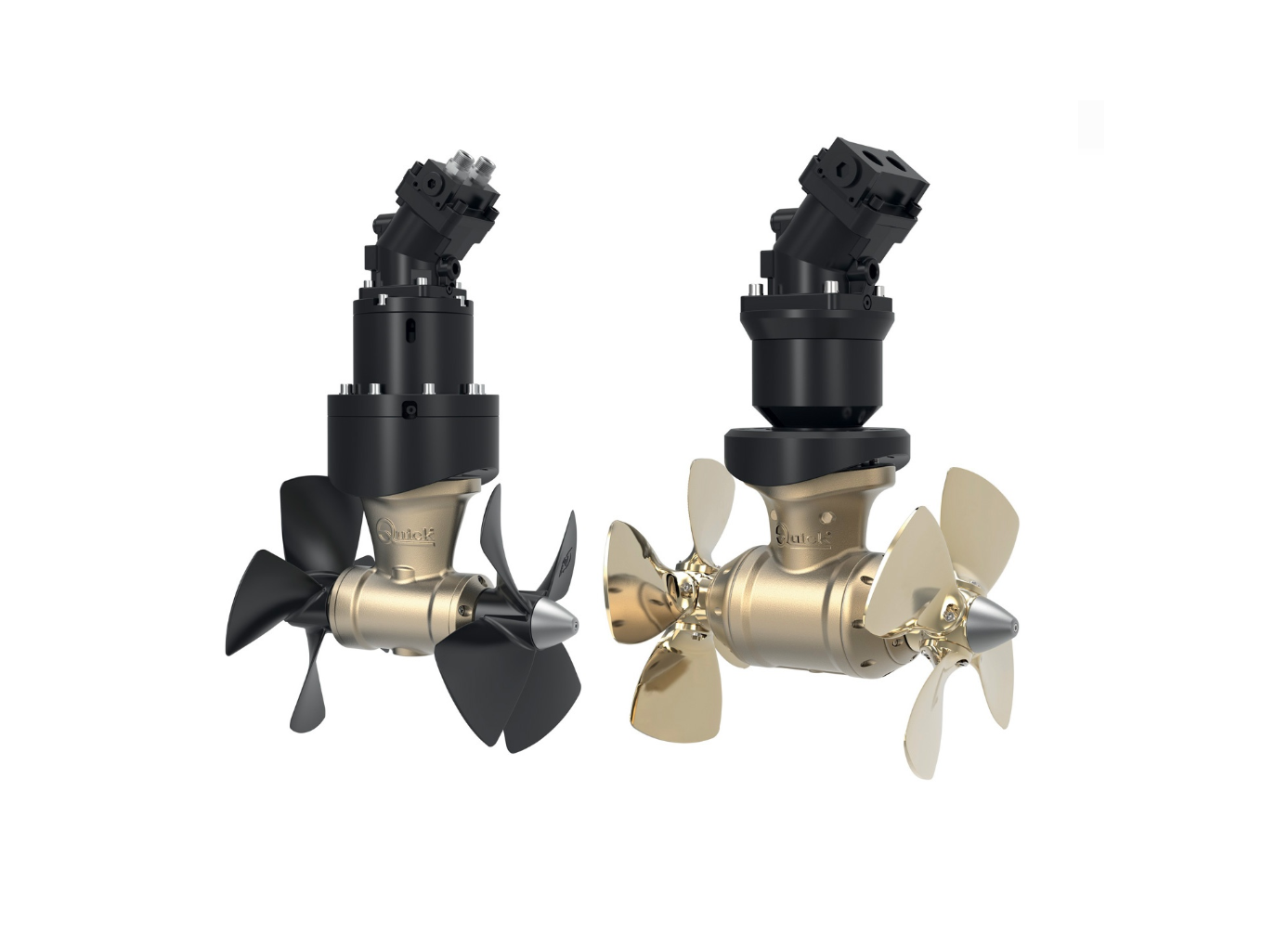

HYDRAULIC THRUSTER BTH386 Ø 386 mm – Twin counter – Rotating propellers – boat length from 22 – 40 m

14,647.5015,571.50 ex. VAT 19%

Clear

Hydraulic thrusters

Quick enters the hydraulic world by powering its thrusters with reversible hydraulic motors gears type made in Italy. High quality production, assembly and testing standards as well as special, specific marine environment treatments make Quick hydraulic thrusters a safe and reliable, component.

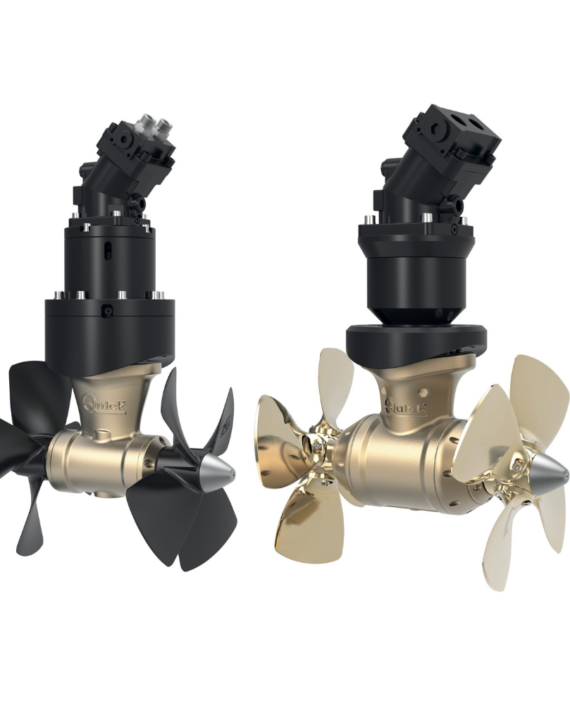

BTH 386 – Double propeller in Marine Brass
• Double propeller made in Marine Brass
• Recommended boat length 22-40 m (72-131 ft)
• Gearbox in bronze
• Zinc anode independent from the gearbox and hence easy replaceable
• Equipped with elastic coupling.

Ordering Information



HYDRAULIC THRUSTER BTH386 Ø 386 mm – Twin counter – Rotating propellers – boat length from 22 – 40 m

Part No. Description Price ex. VAT 19%
FGBT386HY550C00 Twin counter rotating props – 550KGF – Hydraulic – Ø 386 mm – 41,0kW € 13,200.00
FGBT386HY580B00 Twin counter rotating props – 580KGF – Hydraulic – Ø 386 mm – 41,0kW € 13,750.00



Specifications

General specifications
Models BTH 386-455 BTH 386-580
Propulsion system Double propeller contra-rotating in Marine Brass Double propeller contra-rotating in Marine Brass
Ø Tunnel 386 mm
15″ 13/64
386 mm
15″ 13/64
Motor Type Reversible gear-type Reversible gear-type
Displacement 1,8 in3 / 30,0 cc 1,8 in3 / 30,0 cc
Boat size (the indication may vary according to the boat type) 26 – 36 m
72 – 118 ft
25 – 40 m
82 – 131 ft
Weight 75 kg
165.3 lbs
75 kg
165.3 lbs
Flow Rate 23 USGpm / 90,0 lt/min 29 USGpm / 110,0 lt/min
Pressure (Values of regulation recommended by QUICK) 3335 psi / 250 bar 3335 psi / 250 bar
Power (Values of regulation recommended by QUICK) 45.6 Hp / 34,0 Kw 55 Hp / 41,0 Kw
Thrust 455 Kgf / 1003 lbs 580 Kgf / 1279 lbs
