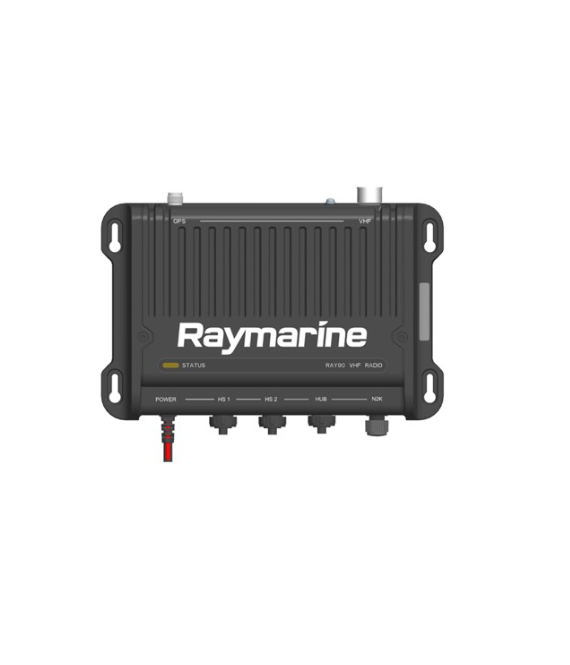

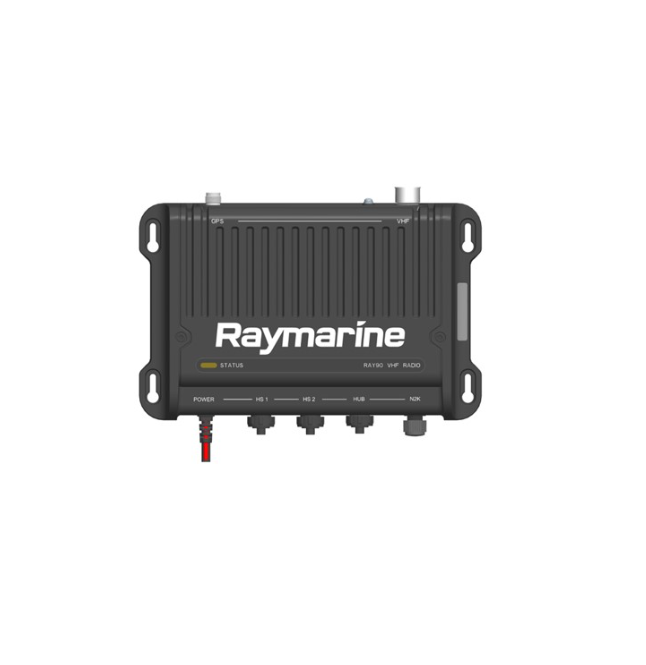

Ray 90 VHF Black Box (incl. wired handset, passive speaker and cable)

795.00 ex. VAT 19%

Raymarine’s fixed mount Ray90 modular VHF radio brings multi-station communications to a whole new level of power, performance, and flexibility. The Ray90 is a black-box design with a transceiver that hides out of sight while the ergonomic RayMic handset and remote speaker provide full control of the radio with crystal clear audio.

Key Features

  • Black box, multi-station capable VHF radio
  • Wired handset and passive speaker included
  • Expandable to 2 handsets
  • Built-in loudhailer and fog signal generator
  • Optional external GPS
  • Simple NMEA2000 and NMEA0183 Networking

Ray90 is equipped with a powerful 25-watt transmitter and commercial grade electronics for long life and superior performance. Channel scanning, dual-watch, tri-watch and weather alert are standard. Class D Digital Selective Calling radio and integrated GPS makes setting up the advanced safety and calling features easy. Simply input your vessel’s MMSI number during setup and you’re ready to go. For GPS  operation the optional GA150 passive GPS antenna is required.

Position Tracking

Use Ray90’s position tracking feature to keep tabs on up to 5 nearby DSC equipped vessels. Their positions are automatically shared with your Raymarine MFD. Keep an eye on other boats in your cruising party, monitor vessels of interest, or manage your local fleet. In Europe the Ray90 supports the ATIS system on navigable inland waterways.


Ray90’s built-in loudhailer will make you heard on-deck and across the harbour. Connect an optional hailing horn and make your presence known with 30-watts of audio output, plus 2-way talkback. When things get foggy, the loudhailer can also be set to automatically sound required fog signals for power and sailing vessels underway and at anchor.

Waterproof & Ruggedized

Ray90’s transceiver unit is cast in solid aluminum for shock and vibration resistance and maximum heat dissipation. RayMic handsets feature super-bright backlighting for easy viewing in all conditions and oversized keys provide a sure grip with easy access to commonly used functions.

Expand Your System

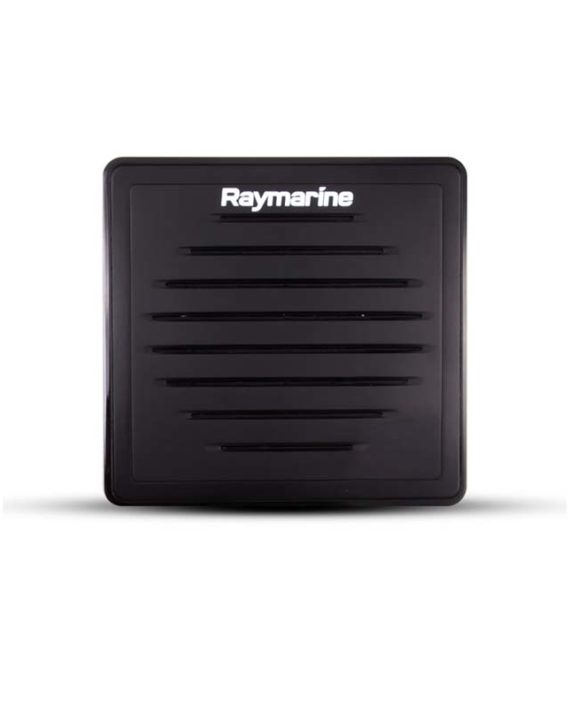

The Ray90 system includes 1 RayMic wired handset and a passive speaker kit. Expand your system with an additional RayMic handset and remote speaker. For noisy environments choose the optional active remote speaker. No matter how small or how large your vessel is, the Ray90 all the power and performance you need for essential communications on the water.

Ordering Information

Raymarine Ray90 Modular Dual-Station VHF Radio System

In Stock Part No. Description Price ex. VAT 19%
TBA E70492 Ray 90 VHF Black Box (incl. wired handset, passive speaker and cable) € 795.00



General specifications
Description Raymarine Ray90 Modular Dual-Station VHF Radio System
Size (HxWxD) Main Unit Height = 63mm (2.48 in)
Width – 235mm (9.25 in) max
Depth 160mm (6.30 in) max excl rear cables
Weight Main Unit 2.6 Kg (5.7 lbs)
Water Integrity Complies with IPX6 & IPX7 | Complies with EN60945
Operating Temperature Range -25°C to 55°C
Storage Temperature Range -25°C to 70°C
Humidity up to 95%
Communications Port NMEA 0183 (version 4.01); NMEA2000 (version 3.101)
Nominal Supply Voltage  12V DC. Reverse polarity and over voltage protected
Operating Voltage Range 9V DC to 16V DC
Current Consumption Less than 6A at High Power (13.6V) |Standby: 600 mA, Receive: 2 Amps
Channels All available US, International and Canadian VHF marine bands
Frequency Range 156.000 – 157.425 MHz , 155.500 to 161.425 MHz Private channels
Frequency Stability + / – 1.5 ppm
Channel Spacing 12.5 kHz
Power Output High Power = 25 Watt | Low Power = 1 Watt
Spurious emission  Better than -36 dBm at 25W (Less than 0.25 µW)
Maximum Deviation  +/- 5kHz
Antenna port impedance  50 ohms typical
Receiver Type Double Conversion Super Heterodyne
Channels All available US, International and Canadian VHF marine bands
Frequency Range 156.000 – 157.425 MHz | 155.500 to 161.425 MHz Private channels
Sensitivity Better than 1 microvolt EMF @ 20dB SINAD
Squelch Sensitivity Less than -2 dBµ EMF
Hum & Noise Better than -40 dB
Audio Distortion Less than 10%
Receiver Sensitivity Distance -119 dBm (0.25uV)@12 dB SINAD ← Typical
Local -110 dBm (0.7uV)@12 dB SINAD ← Typical
Adjacent Channel Selectivity More than 70 dB
Spurious Response Rejection More than 70 dB
Inter Modulation Rejection More than 70 dB
External Passive Speaker Power 5W (4Ω) / 2.5W (8Ω)
Hailer Speaker Power Output 24W (4Ω) / 12W (8Ω)
Number of Channels 72
Cold start 29s
Receiver IC Sensitivity -167 dBm (Tracking) / -148 dBM (Acquisition)
GNSS Compatibility GPS | GLONASS | *BeiDou
SBAS Compatibility WAAS | EGNOS | MSAS
Special Features Active jamming and interference reduction
Operating Frequencies GPS L1 C/A | GLONASS L10F | Beidou B1
Signal Acquisition Automatic
Almanac Update Automatic
Geodetic Datum WGS-84 (alternatives available through Raymarine MFD)
Refresh Rate 20 Hz (20 times per second concurrent GNSS)
Positional Accuracy Without SBAS: <2.5 metres 95% of the time
With SBAS: <2 metres 95% of the time
