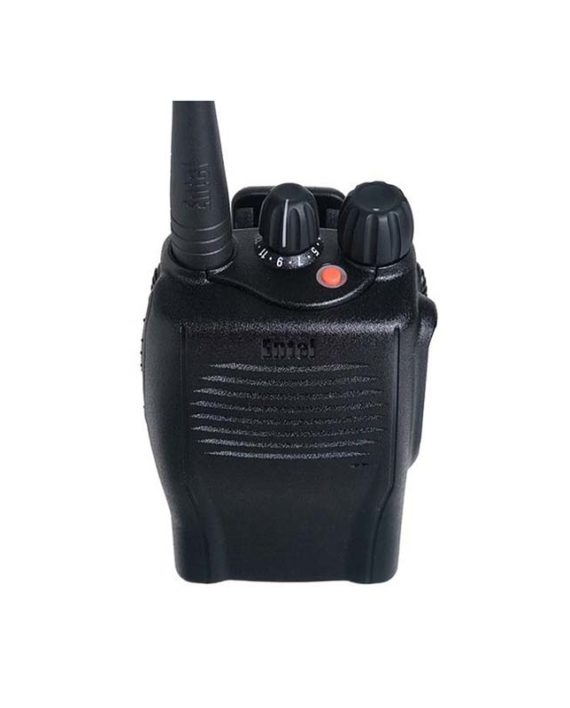

HX446E ENTEL – Land Series

275.00 ex. VAT 19%

The first time you handle Entel’s HX446 Series 2.0 portables you will be impressed by their superior build quality. From the compact ergonomic design that fits comfortably in your hand, to the exceptionally loud audio, they easily outclass the competition.

HX446 Series 2.0 portables support all the EU license free channels, are built to MIL-STD 810C/D/E/F for tough enduring performance and in addition provide superior IP55 protection against dust and liquid ingress.

Entel’s HX446 Series portables will exceed the expectations of even the most experienced radio user.

HX446E

General

Environmental protection to IP55
The practical HX446 Series 2.0 portables enjoy an IP55 rated construction, which means that they are dust protected and resistant to water ingress.

MILSTD 810C/D/E/F
Meeting MIL-STD 810C/D/E/F and providing commercial grade construction for tough, enduring performance. Entel’s HX446 Series 2.0 portables conform to stringent standards, enabling them to withstand the everyday rigours of shock, vibration and the corrosive effects of dust and moisture, ensuring many years of trouble free use.

2000mAh Li-Ion battery
HX446 Series 2.0 portables are supplied with the latest intelligent Lithium-Ion battery technology as standard. One key advantage of Lithium-Ion battery technology is the way it eliminates ‘memory effect’ meaning there is no need to fully discharge your battery before recharging. Therefore you are assured a full charge each and every time you take your Entel battery from its charger.

Flash upgradeable to add future features
Entel adds and improves features on its HX446 radios by way of software updates. Using Flash Upgrade technology your Entel HX446 radios can be upgraded by your Dealer at any time.

Robust accessory socket
When an accessory is secured to the portable, the plug / socket has been designed to withstand any amount of punishment from dropping to careless misuse.

Channels
All non-display HX446 portables provide 16 programmable license free channels. Display portables provide 255 programmable license free channels.

Convenience

Keylock
To avoid accidental operation your radios keys & controls can be locked by the user or, if set, automatically by the radio.

VOX hands free (with audio accessory)
When using an Entel VOX enabled audio accessory, your HX446 portable can operate totally hands free. All you need to do is talk and the HX446 portable will automatically transmit for you.

Scan/priority scan
The HX446 Series portables have the facility to scan for an active (or free) channel. When the channel is found, the radio will automatically select it for you. Priority scan will allow you to select one channel in the scan list that is treated as a “Priority”. It will be checked more frequently than all other channels in the list.

Programmable channel monitor button
If you have channel protection enabled on your HX446 portable, all signals other than your own networks will be filtered out. This can be temporarily disabled allowing you to monitor all signals on your channel.

Security

Programmable scrambler (voice inversion)
Used to encrypt your voice, protecting against casual eavesdropping.

Safety

Local Personal Attack Alarm
All HX446 portables include a personal attack alarm option. Once activated the speaker of your radio will emit a high pitched siren as a deterrent and provides a local call for assistance.



Ordering Information

HX644E Land Series

In Stock Part No. Description Price ex. VAT 19%
TBA HX446E Compact Land PMR446 Transceiver, no Display € 275.00

Specifications



General specifications
Frequency Range PMR446 Analogue
Channels Non LCD, 16 license free channels
LCD, 255 license free channels
Channel Spacing 12.5 kHz
Communication Method Simplex
Antenna Impedance 50 ohm
Antenna Whip / stubby
Battery type 2000 mAh Li-Ion battery pack
Power Supply Voltage 7.4V DC
Current Drain (nominal) 40mA
Duty Cycle (5/5/90) 15.5 hours
Microphone Internal condenser microphone
Operating Temperature -20° to +55°C
Construction MIL-STD 810C/D/E/F
IP Rating IP55
Size (mm) 61(W) x 100(H) x 31(D)
Weight 274g with battery and aerial
Transmitter
Receiver Type 500mW
Modulation 8K0G3E/16K0G3E
Oscillator Method PLL
Frequency Stability 2.5PPM
Maximum Deviation ±2.5 kHz(Narrow)/ ±5 kHz(Wide)
Audio Distortion < 5% (1 kHz 60%)
Spurious Emission -68 [dBc]
Hum & Noise -40 [dB]
Receiver
Receiver Type Double Super Heterodyne type
Sensitivity -0.25uV (12dB SINAD)
Frequency Stability 2.5PPM
Spurious Rejection -60 dB
Adjacent Channel Selectivity -60 dB (Narrow) , -70 dB (Wide)
Distortion < 5% (1 kHz 60%)
Hum & Noise -40 dB
Audio Output 1W
