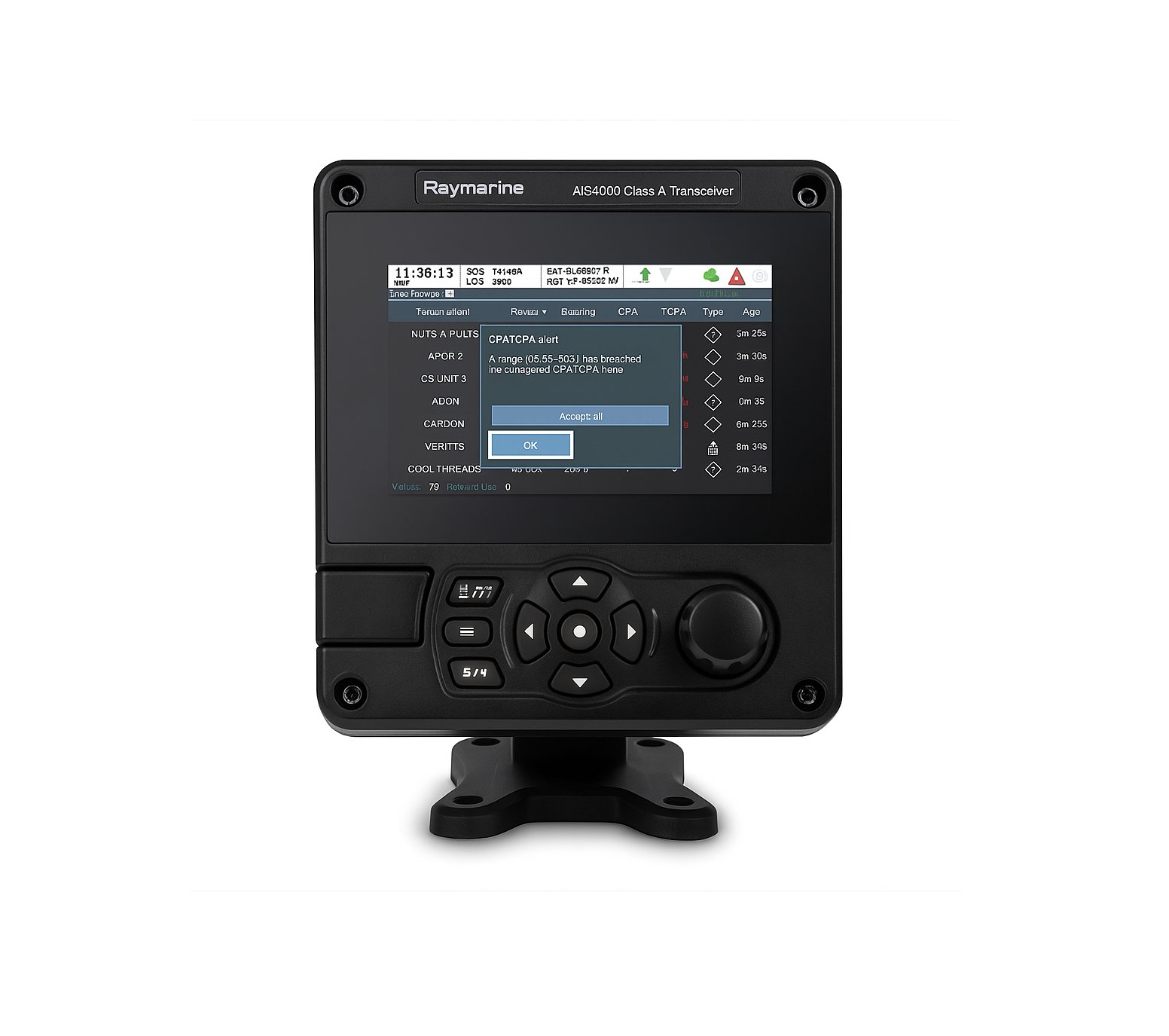

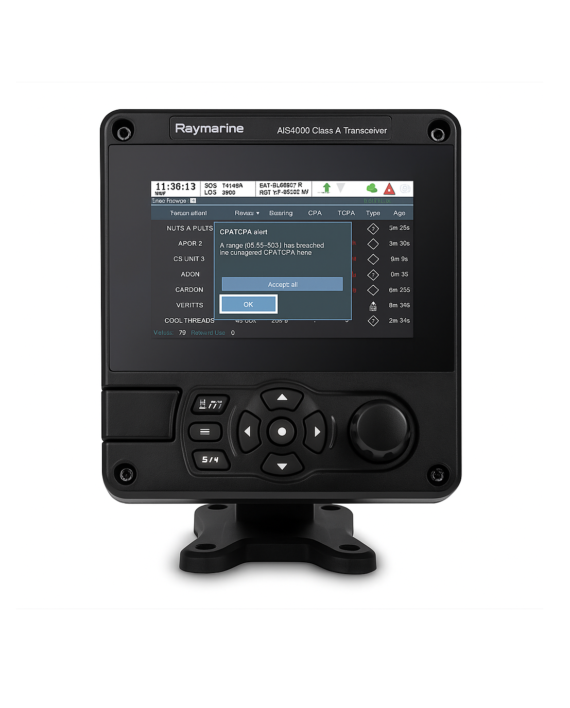

AIS4000 Class A AIS Transceiver

€2,795.00 ex. VAT 19%

Designed for commercial vessels, luxury yachts, and SOLAS high-seas shipping, the AIS4000 Automatic Identification System (AIS) transceiver delivers robust Class A AIS network capability and is engineered to withstand the harsh weather, shock, and vibration of any vessel class.
The AIS4000 boasts a high definition color display for quick access to integrated charts, alarms, and tracking. Additional support for wired and wireless networking with shipboard systems make AIS4000 a premier SOLAS and Inland Waterway-certified Class A transceiver.

BOLD, BRIGHT, AND HIGHLY CAPABLE

The full-featured AIS4000 brings a new level of functionality to Class A transceivers.

• Large 5” 800 × 480 color display

• Integrated Wi-Fi

• NMEA 2000

• Easy-to-use, intuitive interface

ADVANCED CLASS A AIS CAPABILITIES

AIS4000 is a full-function Automatic Identification System transceiver certified for SOLAS and Inland Waterway applications.

• Fourth generation AIS technology for expanded speed, range, and processing performance

• Full color target display with optional C-MAP ENC mapping

• Integrated Man Overboard/PLB alerting and tracking system

• CPA/TCPA data and alarms

RUGGED AND VERSATILE

Designed for harsh conditions, AIS4000 is right at home on any vessel class.

• Certified to the highest industry standards for waterproofness, shock, and vibration

• Compact enclosure with NMEA2000 and NMEA0183 connectivity

• Junction box included for expanded shipboard sensor and ECDIS connectivity

• Flexible overhead, bulkhead, desktop, and surface mount options

Ordering Information

AIS4000 Transceiver

In Stock Part No. Description Price ex. VAT 19%
TBA E70601 AIS4000 Class A Transceiver €  2795,00

Specifications



General specifications
Physical
Overall Dimensions
W x H x D		 152 mm × 165 mm × 70 mm
Product Weight (kg) 1
Electrical
Power Supply 12 to 24 VDC
Power Consumption
 0.5A at 12v (6W)
Connectors
VHF antenna connector Yes
GNSS antenna connector Yes
Power Two-pin connector (cable provided)
Serial interfaces and alarm relay 18-pin connector (cable provided)
Serial inputs 14-pin connector (cable provided)
NMEA 2000 NMEA 2000 micro connector
Data Interfaces
NMEA 0183 (IEC61162-2) bi-directional ports 3
NMEA 0183 (IEC61162-1) bi-directional ports 3
DGPS correction data input (ITU-R M.823-2) 1
Alarm relay output 1
NMEA 2000 1
Wi-fi 802.11 b/g/n
Pilot Port 1 (optional)
Standards Compliance
AIS standard IEC 61993-2 Ed 2.0
ITU-R M.1371-5
CCNR VTT Ed 2.0
Serial data interface standards IEC 61162-1 Ed 4.0
IEC 61162-2 Ed 1.0
IEC 61162-3 2008 Ed 1.2
Environmental Standard IEC 60945 Ed 4.0
GNSS performance standard
 IEC 61108-1 Ed 2.0
IEC 61108-2 Ed 1.0
Product safety IEC 60945 Ed 4.0
VHF Transceiver
Transmitter 1
Receiver 3
Frequency 156.025 MHz to 162.025 MHz
Output Power
 1 W or 12.5 W (automatic)
Channel Bandwidth 25 kHz
Channel Step 25 kHz
Modulation Modes CMSK-TDMA
Bit Rate 9,600 bits/sec
Receiver Sensitivity -107 dBm @ 20% PER
GNSS Receiver and Transceiver
Channels 72
GNSS systems Supports parallel dual mode operation from GPS, GLONASS, and BeiDou
IEC61108-1 Compliant
IEC61108-2
 Compliant
GNSS antenna Supplied
User Interface
 5” 800 × 480 full color LCD display
 Rotary encoder for selection and entry
 Four menu keys and four direction keys
 microSD™ slot for software updates and charts
Environmental
Waterproof IPx6 and IPx7-rated for water ingress
IEC 60945 ‘Protected’ category
Operating Temperature -15°c to +55°c
