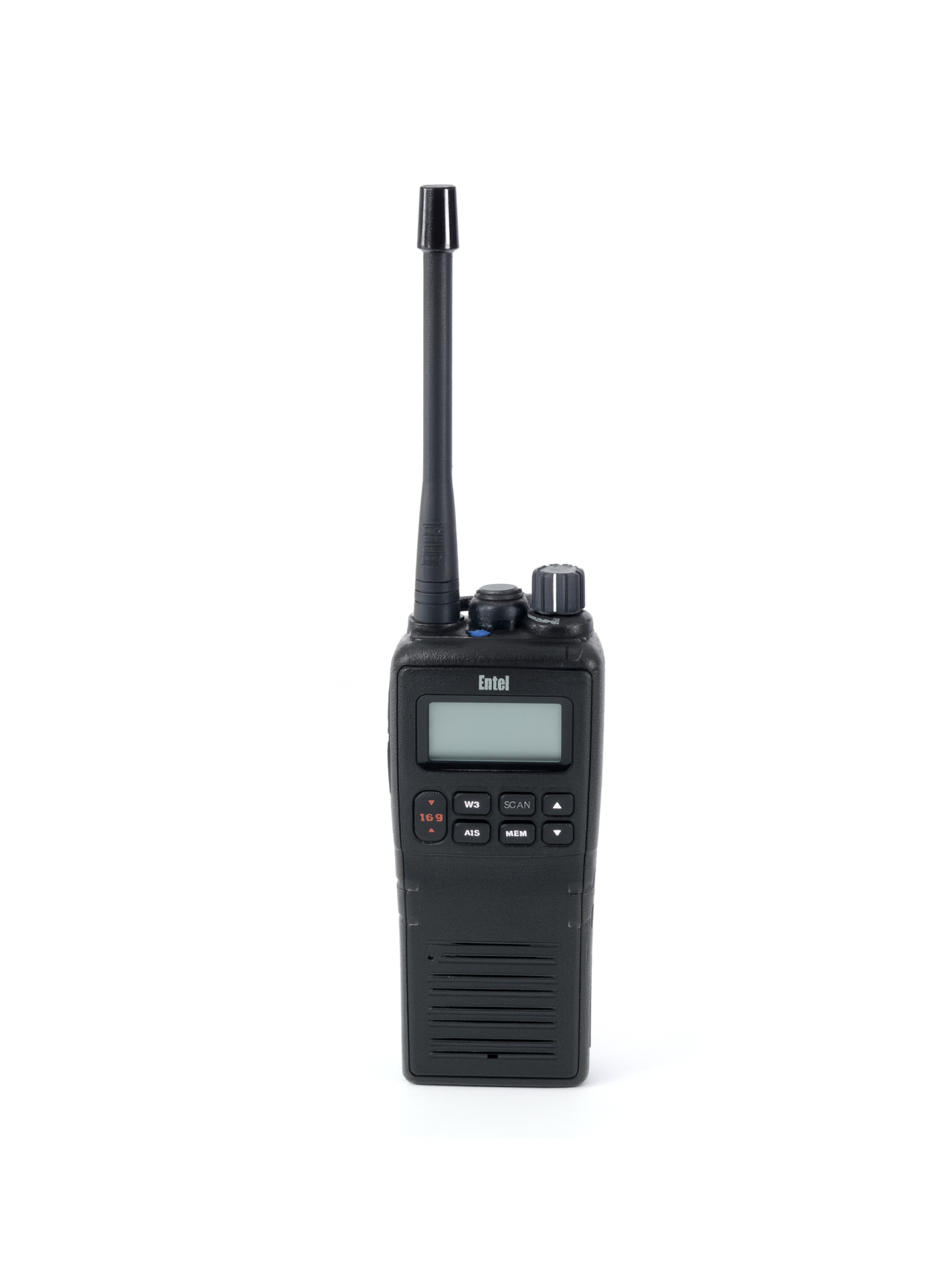

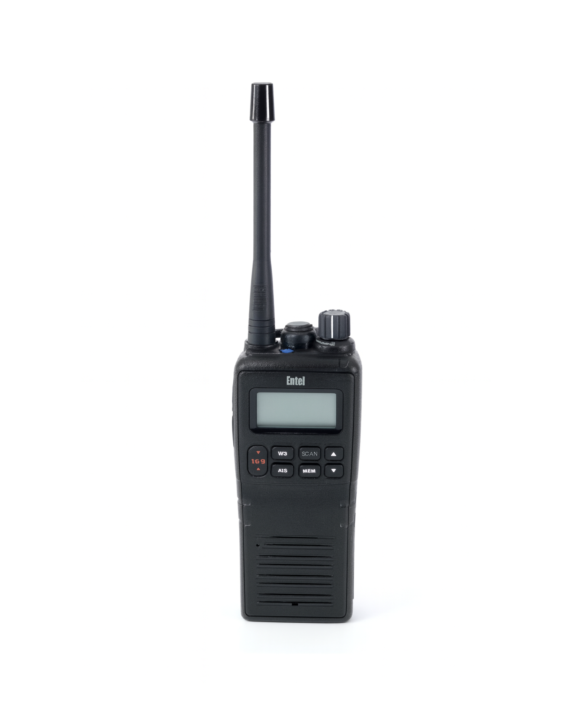

HT644 ENTEL – Fully Submersible Marine Radio

255.00 ex. VAT 19%

The first time you handle Entel’s HT644 Series 2.0 portable you will be impressed by its superior build quality. The HT644 has been designed specifically for those requiring a no compromise marine portable.
From the rugged ergonomic design that fits comfortably in your hand, to the exceptionally loud audio, the HT644 Series 2 portable easily outclasses the competition.
The HT644 Series 2 portable is built to MIL-STD 810C/D/E/F for tough enduring performance and in addition it is fully Submersible to IP68 (2 meters depth for 4 hours).
Entel’s HT644 Series 2 portable will exceed the expectations of even the most experienced radio user.

HT644

General

Environmental protection to IP68 (2 Meters for 4 hours)
The practical HT644 Series 2.0 portable enjoys an IP68 (2 Meters for 4 hours) rated construction, which means that they are dust protected and fully submersible.

MILSTD 810C/D/E/F
Meeting MIL-STD 810C/D/E/F and providing commercial grade construction for tough, enduring performance. Entel’s HT644 Series 2.0 portable conforms to stringent standards, enabling it to withstand the everyday rigours of shock, vibration and the corrosive effects of dust and moisture, ensuring many years of trouble free use.

2000mAh Li-Ion battery
The HT644 Series 2.0 portable is supplied with the latest intelligent Lithium-Ion battery technology as standard. One key advantage of Lithium-Ion battery technology is the way it eliminates ‘memory effect’ meaning there is no need to fully discharge your battery before recharging. Therefore you are assured a full charge each and every time you take your Entel battery from its charger.

Robust accessory socket
The socket has been specifically designed so that when an accessory is secured to the portable, the connection can withstand any amount of punishment; from dropping to careless misuse. Furthermore, the securing bolt incorporates a shearing point to protect the connector.

Channels
The HT644 portable provides all INT, USA & CAN Marine channels.

Convenience

Keylock
To avoid accidental operation your radios keys & controls can be locked by the user or, if set, automatically by the radio.

VOX hands free (with audio accessory)
When using an Entel VOX enabled audio accessory, your HT644 portable can operate totally hands free. All you need to do is talk and the HT644 portable will automatically transmit for you.

Scan
The HT644 Series portable has the facility to scan for an active channel. When the channel is found, the radio will automatically select the channel for you.

Ordering Information

HT644 ENTEL – FULLY SUBMERSIBLE MARINE RADIO

Part No. Description Price ex. VAT 19%
HT644-A HT644 ENTEL – FULLY SUBMERSIBLE MARINE RADIO € 255.00

Specifications



General specifications
Frequency Range 156 – 163.275MHz
Channels All international, USA & CAN Marine Channels
Channel Spacing 25 kHz
Communication Method Simplex / semi duplex
Antenna Impedance 50 ohm
Antenna Whip / stubby
Battery type 2000 mAh Li-Ion battery pack
Power Supply Voltage 7.4V DC
Current Drain (nominal) 40mA
Duty Cycle (5/5/90) 12.5 hours
Microphone Internal condenser microphone
Operating Temperature -20° to +55°C
Construction MIL-STD 810C/D/E/F
IP Rating IP68 (2 meters depth for 4 hours)
Size (mm) 59.5(W) x 130(H) x 37(D)
Weight 277g with battery and aerial
Transmitter
Power Output High – 5W / Low – 1W
Modulation 8K0G3E/16K0G3E
Oscillator Method PLL
Frequency Stability 2.5PPM
Maximum Deviation ±5 kHz
Audio Distortion < 5% (1 kHz 60%)
Spurious Emission -68 [dBc]
Hum & Noise -40 [dB]
Receiver
Receiver Type Double Super Heterodyne type
Sensitivity -0.25uV (12dB SINAD)
Frequency Stability 2.5PPM
Spurious Rejection -60 dB
Adjacent Channel Selectivity -60 dB (Narrow) , -70 dB (Wide)
Distortion < 5% (1 kHz 60%)
Hum & Noise -40 dB
Audio Output 1W
