€8,010.00–€30,103.00 ex. VAT 19%
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Chemistry | LiFePO4 |
| Module configuration (12 V module) | 2s2p |
| Number of modules | 4 |
| Nominal voltage | 24 V |
| Open circuit voltage | 26,4 V |
| Nominal capacity | 210 Ah |
| Nominal energy | 5,5 kWh |
| Cycle Life DOD 80% | >3500 cycles (at 1C charge / discharge, 80% DoD |
| Self discharge | <3% per month |
| Weight modules (excel. aluminum cabinet), kg (lb) | 40 (88.2) |

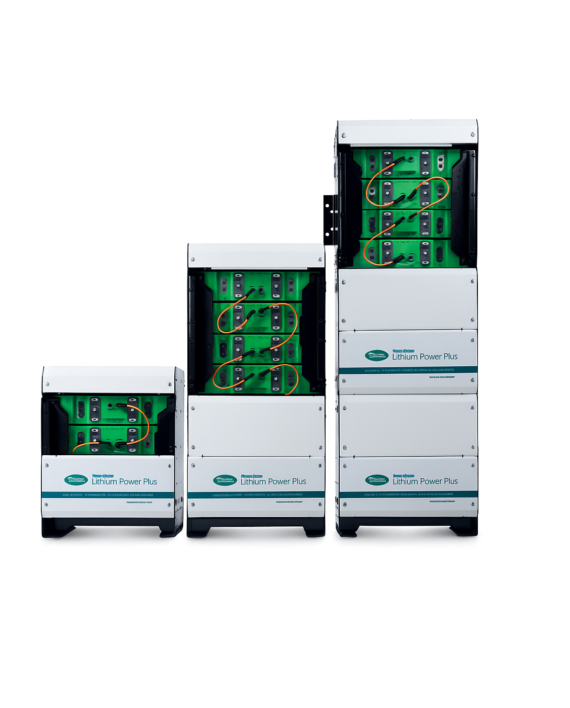

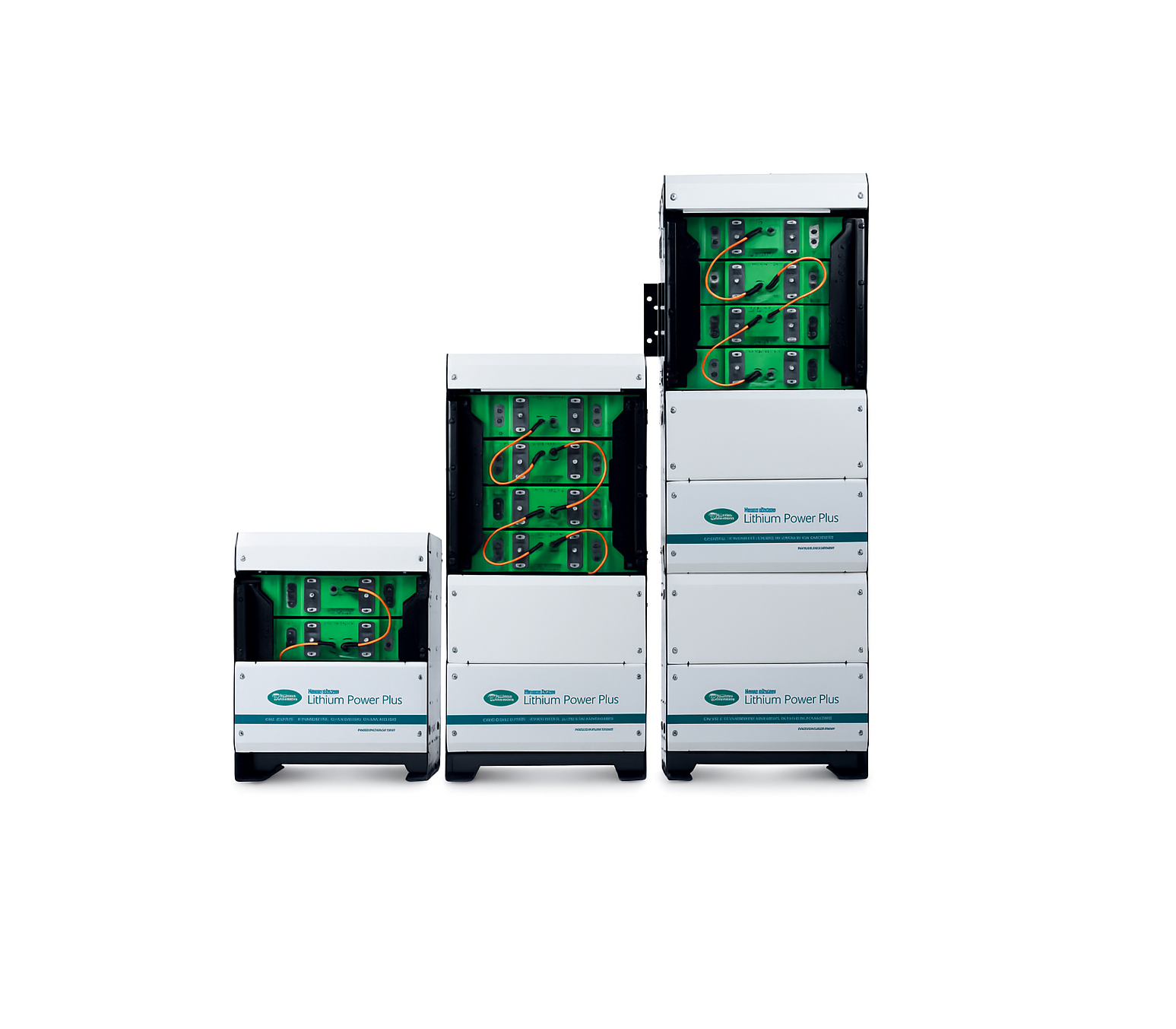

WP Lithium Power Plus – Bulk
| 40290223 | WP Lithium Power Plus 5.5kWh – 24 V / 210 Ah Battery – Bulk | € 8.010,00 |
| 40290225 | WP Lithium Power Plus 11.1kWh – 24 V / 420 Ah Battery – Bulk | € 15.688,00 |
| 40290226 | WP Lithium Power Plus 16.6kWh – 24 V / 630 Ah Battery – Bulk | € 23.464,00 |
| 40290231 | WP Lithium Power Plus 5.5 kWh – 48 V / 105 Ah Battery – Bulk | € 8.010,00 |
| 40290235 | WP Lithium Power Plus 11.1 kWh – 48 V / 210 Ah Battery – Bulk | € 15.688,00 |
| 40290236 | WP Lithium Power Plus 16.6 kWh – 48 V / 315 Ah Battery – Bulk | € 23.464,00 |
| 40290238 | WP Lithium Power Plus 22.2 kWh – 48 V / 420 Ah Battery – Bulk | € 31.103,00 |
| 40290243 | WP Lithium Power Plus 11.1 kWh – 96 V / 105 Ah Battery – Bulk | € 15.694,00 |
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Chemistry | LiFePO4 |
| Module configuration (12 V module) | 2s2p |
| Number of modules | 4 |
| Nominal voltage | 24 V |
| Open circuit voltage | 26,4 V |
| Nominal capacity | 210 Ah |
| Nominal energy | 5,5 kWh |
| Cycle Life DOD 80% | >3500 cycles (at 1C charge / discharge, 80% DoD |
| Self discharge | <3% per month |
| Weight modules (excel. aluminum cabinet), kg (lb) | 40 (88.2) |
| DISCHARGE PARAMETERS | |
|---|---|
| Discharge cut-off voltage | 21,6V |
| Recommended discharge current | 105 A (0.5C) |
| Maximum discharge current | 210 A (1.0C) |
| Discharge pulse current | 420 A (2.0C) |
| Fuse protection | 400 A T-class |
| CHARGE PARAMETERS | |
|---|---|
| Charge method | CCCV |
| Maximum charge voltage | 29,8 V |
| Recommended charge voltage | 28,6 V |
| Recommended charge current | 105 A (0.5 C) |
| Continuous charge current | 210 A (1.0 C) |
| CONFIGURATION | |
|---|---|
| Series configuration | Yes, up to 4 max |
| Parallel configuration | Yes, up to 2 max |
| Redundant mode | Yes, using double BIM |
| ENVIRONMENTAL | |
|---|---|
| Operating temperature charge | 0°C to 55 °C / 32°F to 131°F |
| Operating temperature discharge | -20°C to 55°C / -4°F to 131°F |
| Storage temperature | -20°C to 55°C / -4°F to 131°F |
| Humidity (Non-condensing) | <95% |
| MECHANICAL | |
|---|---|
| Power connections | M10 stud, max 20NM |
| Cable connections | Option: Top or Bottom |
| IP-Protection class | IP 66 cell IP20 connection |
| Cooling | Natural air convection |
| Module material | PC-ABS, UL94-V0 |
| Battery case material | Aluminium Powdercoat |
| Dimensions (l x w x h), mm | 480 x 280 x 465 (540) |
| Dimensions (l x w x h), inches | 18,9 x 11 x 18,3 (21,3”) |
| Total weight module plus cabinet | ±55-60 kg / 121-132 lbs |
| SAFETY | |
|---|---|
| Balancing | Passive method |
| Battery Management System (BMS) | External WP-BIM module |
| Communication CAN-Bus | whisperconnect/NMEA2000 |
| EMC: Emission | EN-IEC 61000-6-3:2007/A1:2011/C11:2012 |
| EMC: Immunity | EN-IEC 61000-6-1:2007 |
| Low voltage directive | EN 60335-1:2012/AC:2014 |
| Certifications | CE, FCC, UN 38.3, UL 1642 (Cells), UN ECE R10.06, EN/IEC 62620(ESTRIN) |
| Shipping classification | UN3480 |
