€4,263.00 ex. VAT 19%
In a WhisperPower system the battery has a central role: it is the energy tank, dictating when power sources (battery charging devices) should start to refill “the tank”. The selection of the right battery capacity and technology determines the functionality and durability of such systems. WhisperPower has been a supplier of premium batteries for over the past 20 years.

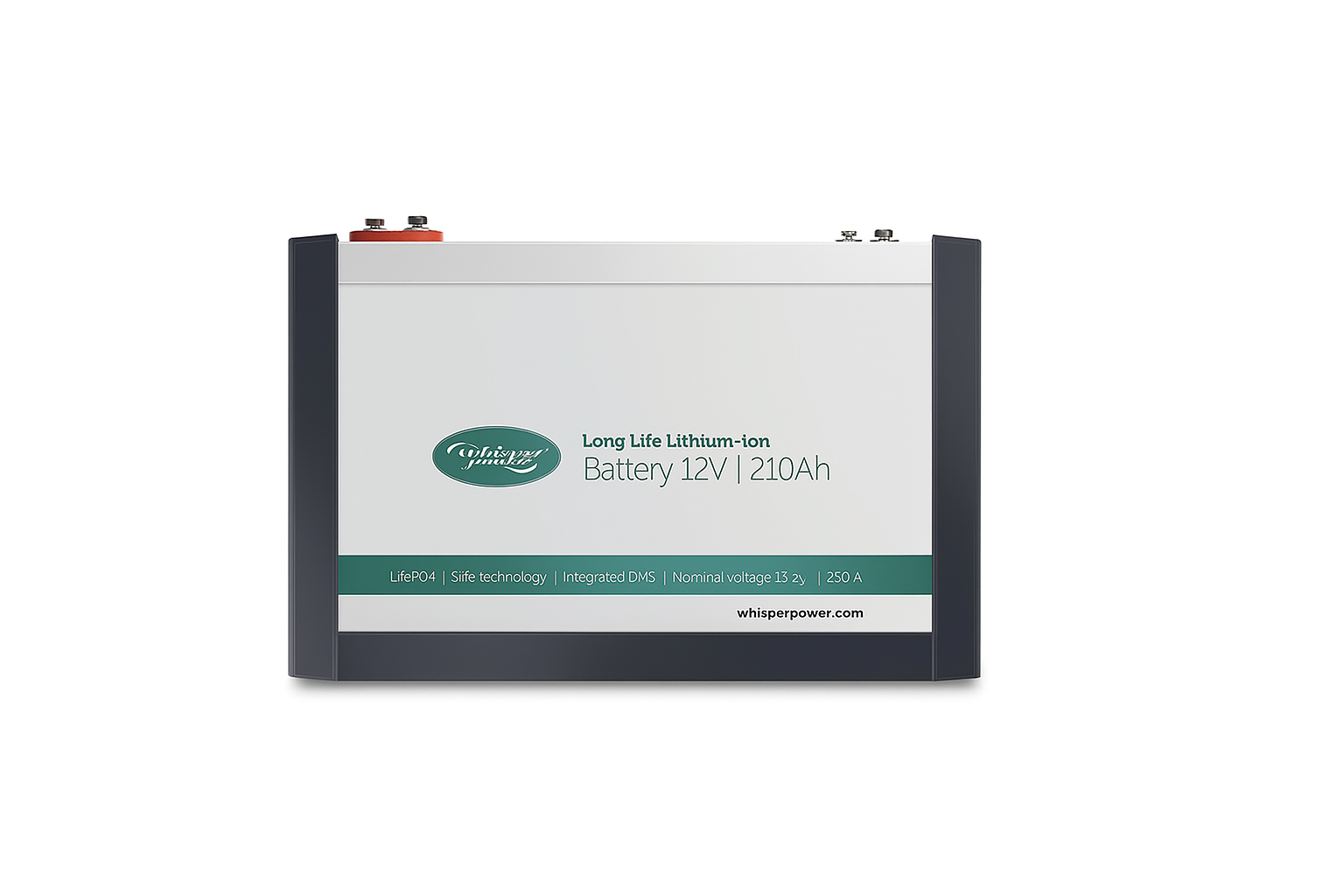

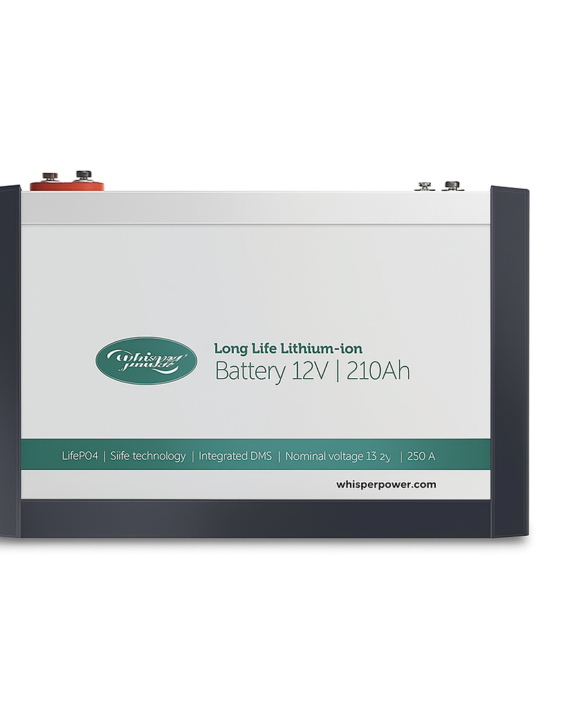

The Lithium Power Plus 12 V 210 Ah battery, is a Lithium Iron Phosphate rechargeable battery with a rated capacity of 210 Ah. The unique combination of state-of-the art technology and smart software makes this lithium battery a robust, safe and easy to use energy storage solution.
Compared to conventional lead-acid batteries, the WP Power Plus lithium batteries offers an enormous weight and space saving. Efficient and with extremely high performance.
| 40290209 | WP Lithium Power Plus 12 V – 210 Ah Battery | € 4.263,00 |
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Battery NR code | IFpP/36/130/195 |
| Dimensions (L x W x H) mm | 227 x 417 x 314 |
| Weight | 23 kg |
| Nominal voltage | 13.2 V |
| Maximum voltage | 15.4 VDC |
| End charge voltage | 14.3 VDC |
| Max charge current 100/c | 210 A |
| Max float charge current | 70 A |
| Minimum battery voltage | 8 VDC |
| Minimum float charge | 10 VDC |
| Max discharge current | 500 A |
| Pulsed discharge current (10 sec) | 800 A |
| Pulsed discharge current (60 sec) | 600 A |
| Usable battery capacity at – 20 ̊C | 130 Ah / 1716 Wh |
| Usable capacity / in comparison to lead acid battery | 420 Ah |
| Charge method | Constant voltage |
| Temperature range (charging) | 0°C to 45°C |
| Temperature range (discharging) | -20°C to +60°C |
| Temperature range (storage) | -20°C to +60°C |
| COMPLIANCE PARAMETERS | |
|---|---|
| Certifications | CE, FCC, UN 38.3, UN ECE R10.06, UL 1642 (Cells) |
| Shipping Classification | UN 3480 |
