YACHTSENSE™ LINK

1,395.00 ex. VAT 19%

MARINE MOBILE ROUTER

MARINE MOBILE ROUTER

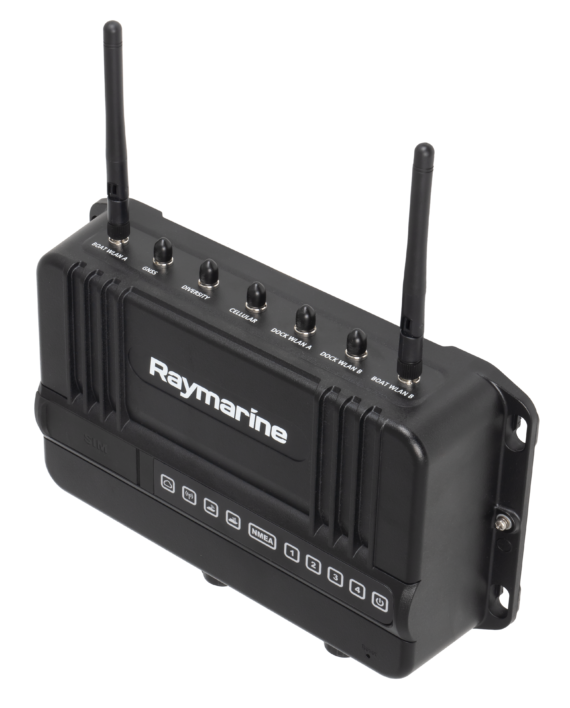

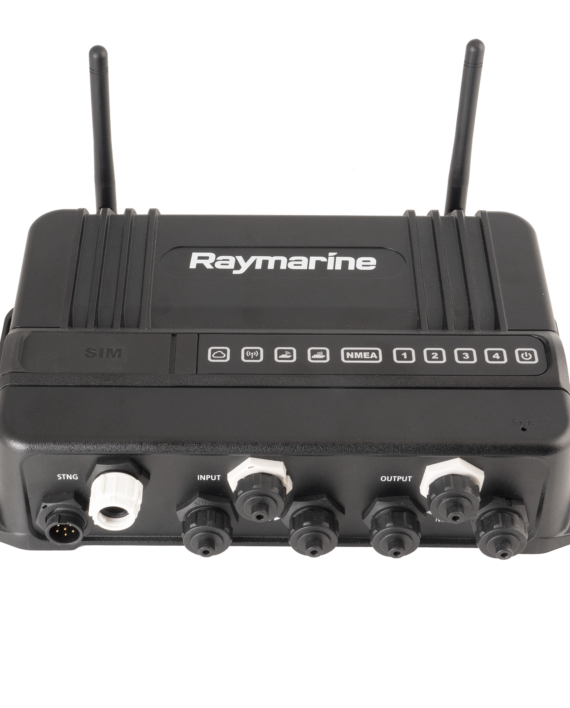

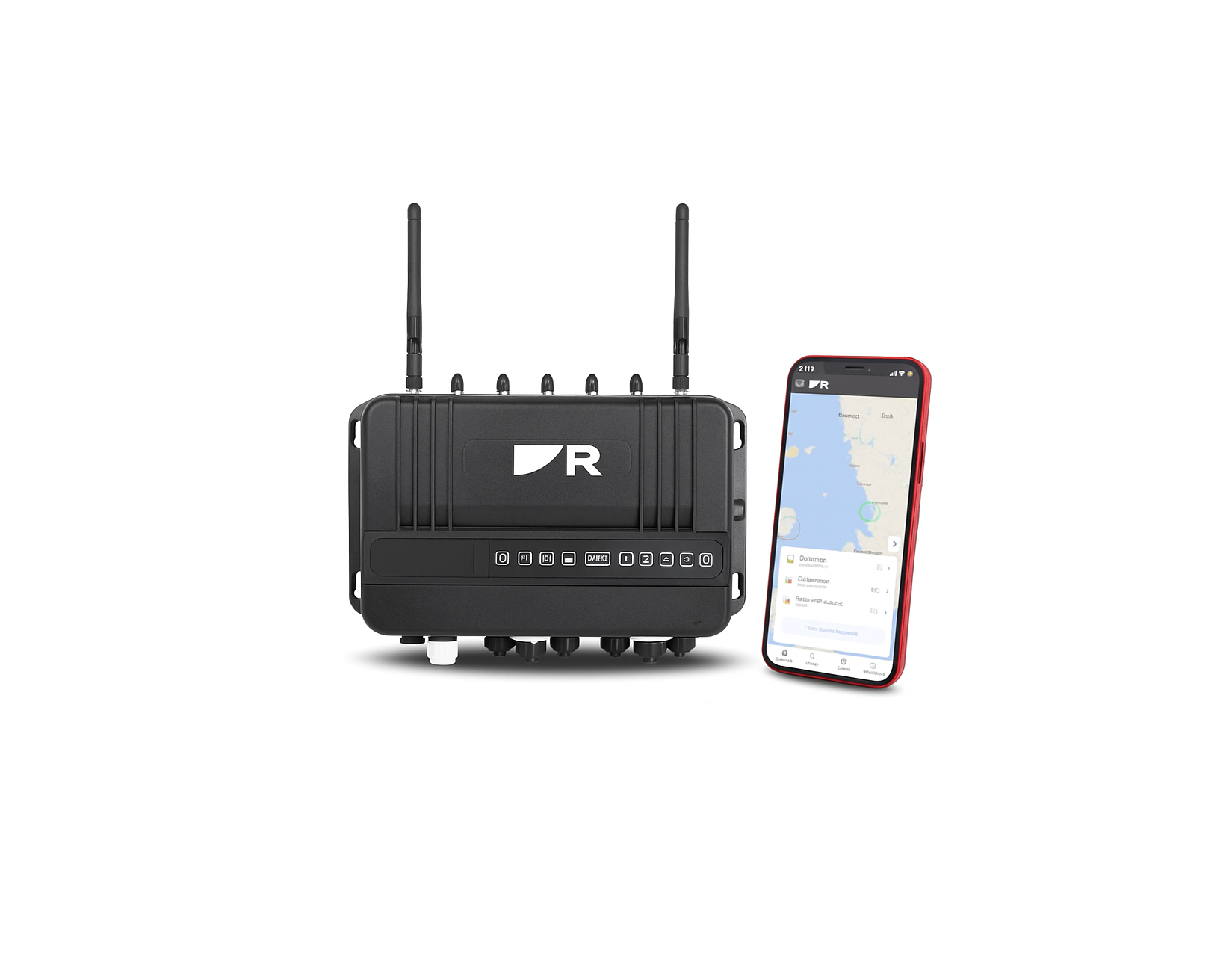

YachtSense Link is a multi-purpose marine mobile router equipped with Raynet Ethernet ports, mobile broadband connectivity, and onboard Wi-Fi. YachtSense Link allows crew and family to connect Axiom® displays, phones, tablets, and PCs to a unified onboard network. YachtSense Link automatically switches between marina Wi-Fi and mobile networks to ensure you are always connected. Combine YachtSense Link with the Raymarine mobile app for remote access to your Raymarine network and enjoy the added security of remote GeoFence vessel monitoring. YachtSense Link also features low-voltage digital switching / monitoring channels for controlling and monitoring onboard electrical devices like pumps, batteries, lighting, and more.

Ordering Information

YACHTSENSE™ LINK

YachtSense Link Router
E70640 YachtSense Link Marine Cloud Router w/ 4X GB RayNet, Wi-FI, 3G/4G, GNSS, Premium External Antenna w/ 10M cable and Input/Out Cable Set € 1.395,00

Specifications

Nominal supply voltage: 12 Vdc / 24 Vdc
Operating voltage range: 8 Vdc to 32 Vdc
Operating temperature range: -25°C (-13°F) to + 55°C (131°F)
Storage temperature range: -30°C (–22°F) to + 70°C (158°F)
Humidity: up to 93% @ 40°C (104°F)
Water ingress protection: IPx6
Dimensions (w x h x d): 242.00 mm (9.53 in) x 162.20 mm (6.39 in) x 63.00 mm (2.48 in)
Weight: 1.03 Kg (2.26 lb)
Boat Wi-Fi: Wi-Fi access point mode frequencies:

  • 2.4 GHz (2412 MHz to 2472 MHz
  • 2422 MHz to 2462 MHz): 13.28 dBm
Dock WLAN: Wi-Fi station mode frequencies:

  • 2.4 GHz:(2412 MHz to 2472 MHz / 2422 MHz to 2462 MHz): 14.79 dBm
  • 5 GHz (5150 MHz to 5350 MHz / 5470 MHz to 5725 MHz): 14.94 dBm
  • 5.8 GHz (5725 MHz to 5875 MHz): 13.74 dBm
Cellular / Diversity: 2G/3G/4G frequencies:

  • LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18 /B19/B20/B25/B26/B28
  • LTE-TDD: B38/B39/B40/B41
  • WCDMA: B1/B2/B4/B5/B6/B8/B19
  • GSM: B2/B3/B5/B8
