€8,010.00–€46,796.00 ex. VAT 19%
In a WhisperPower system the battery has a central role: it is the energy tank, dictating when power sources (battery charging devices) should start to refill “the tank”. The selection of the right battery capacity and technology determines the functionality and durability of such systems. WhisperPower has been a supplier of premium batteries for over the past 20 years.
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Chemistry | LiFePO4 |
| Module configuration (12 V module) | 2s2p |
| Number of modules | 4 |
| Nominal voltage | 24 V |
| Open circuit voltage | 26,4 V |
| Nominal capacity | 210 Ah |
| Nominal energy | 5,5 kWh |
| Cycle Life DOD 80% | >3500 cycles (at 1C charge / discharge, 80% DoD |
| Self discharge | <3% per month |
| Weight modules (excel. aluminum cabinet), kg (lb) | 40 (88.2) |

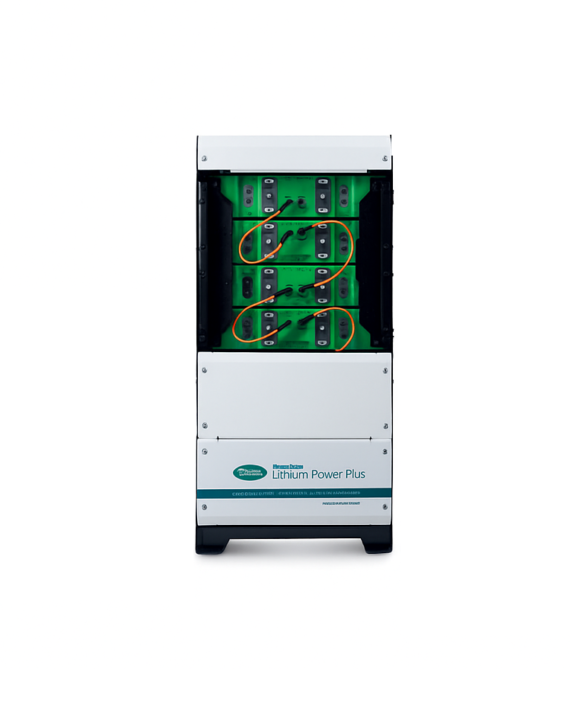

WP Lithium Power Plus – Tower
| 40290203 | WP Lithium Power Plus 5.5kWh – 24 V / 210 Ah Battery – Tower | € 8.010,00 |
| 40290204 | WP Lithium Power Plus 8.4kWh – 24 V / 315 Ah Battery – Tower | € 12.007,00 |
| 40290205 | WP Lithium Power Plus 11.1 kWh – 24 V / 420 Ah Battery – Tower | € 15,688,00 |
| 40290206 | WP Lithium Power Plus 16.6 kWh – 24 V / 630 Ah Battery – Tower | € 23.464,00 |
| 40290215 | WP Lithium Power Plus 11.1 kWh – 48 V / 210 Ah Battery – Tower | € 15.694,00 |
| 40290216 | WP Lithium Power Plus 16.6 kWh – 48 V / 315 Ah Battery – Tower | € 23.464,00 |
| 40290218 | WP Lithium Power Plus 22.2 kWh – 48 V / 420 Ah Battery – Tower | € 31.103,00 |
| 40290244 | WP Lithium Power Plus 11.1 kWh – 96 V / 105 Ah Battery – Tower | € 15.694,00 |
| 40290246 | WP Lithium Power Plus 22.2 kWh – 96 V / 210 Ah Accu – Tower | € 31.103,00 |
| 40290247 | WP Lithium Power Plus 33.3 kWh – 96 V / 315 Ah Battery – Tower | € 46.796,00 |
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Chemistry | LiFePO4 |
| Module configuration (12 V module) | 2s2p |
| Number of modules | 4 |
| Nominal voltage | 24 V |
| Open circuit voltage | 26,4 V |
| Nominal capacity | 210 Ah |
| Nominal energy | 5,5 kWh |
| Cycle Life DOD 80% | >3500 cycles (at 1C charge / discharge, 80% DoD |
| Self discharge | <3% per month |
| Weight modules (excel. aluminum cabinet), kg (lb) | 40 (88.2) |
| DISCHARGE PARAMETERS | |
|---|---|
| Discharge cut-off voltage | 21,6V |
| Recommended discharge current | 105 A (0.5C) |
| Maximum discharge current | 210 A (1.0C) |
| Discharge pulse current | 420 A (2.0C) |
| Fuse protection | 400 A T-class |
| CHARGE PARAMETERS | |
|---|---|
| Charge method | CCCV |
| Maximum charge voltage | 29,8 V |
| Recommended charge voltage | 28,6 V |
| Recommended charge current | 105 A (0.5 C) |
| Continuous charge current | 210 A (1.0 C) |
| CONFIGURATION | |
|---|---|
| Series configuration | Yes, up to 4 max |
| Parallel configuration | Yes, up to 2 max |
| Redundant mode | Yes, using double BIM |
| ENVIRONMENTAL | |
|---|---|
| Operating temperature charge | 0°C to 55 °C / 32°F to 131°F |
| Operating temperature discharge | -20°C to 55°C / -4°F to 131°F |
| Storage temperature | -20°C to 55°C / -4°F to 131°F |
| Humidity (Non-condensing) | <95% |
| MECHANICAL | |
|---|---|
| Power connections | M10 stud, max 20NM |
| Cable connections | Option: Top or Bottom |
| IP-Protection class | IP 66 cell IP20 connection |
| Cooling | Natural air convection |
| Module material | PC-ABS, UL94-V0 |
| Battery case material | Aluminium Powdercoat |
| Dimensions (l x w x h), mm | 480 x 280 x 465 (540) |
| Dimensions (l x w x h), inches | 18,9 x 11 x 18,3 (21,3”) |
| Total weight module plus cabinet | ±55-60 kg / 121-132 lbs |
| SAFETY | |
|---|---|
| Balancing | Passive method |
| Battery Management System (BMS) | External WP-BIM module |
| Communication CAN-Bus | whisperconnect/NMEA2000 |
| EMC: Emission | EN-IEC 61000-6-3:2007/A1:2011/C11:2012 |
| EMC: Immunity | EN-IEC 61000-6-1:2007 |
| Low voltage directive | EN 60335-1:2012/AC:2014 |
| Certifications | CE, FCC, UN 38.3, UL 1642 (Cells), UN ECE R10.06, EN/IEC 62620(ESTRIN) |
| Shipping classification | UN3480 |
