Ordering Information
In Stock | Part No. | Description | Price ex. VAT 19% |
---|---|---|---|

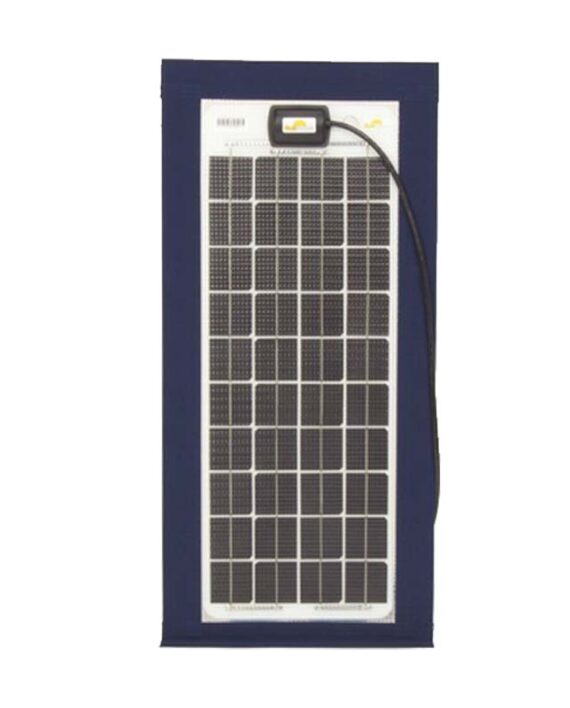

TBA | TX-11027 | 12V, 20 Wp, navy blue 668×333 mm | € 295,80 |
Specifications
Designation | Value |
---|---|
Pmax | 17.0 Wp |
Imax | 0.90 A |
Umax | 18.89 V |
Uoc | 22.8 V |
Isc | 1.00 A |
No of cells | 36 Stck. |
Cell size | 52.0 x 52.0 mm |
Laminate | ETFE/EVA/ETFE |
Length | 668.0 mm |
Width | 333.0 mm |
Product weight | 1 kg |
System Voltage | 12 V |
Protection Class | IP68 |
Base plate | Alu-Sandwich weiss/white |
Cable outlet | Front side |
Cable length | 3 m |
