Ordering Information
In Stock | Part No. | Description | Price ex. VAT 19% |
---|---|---|---|

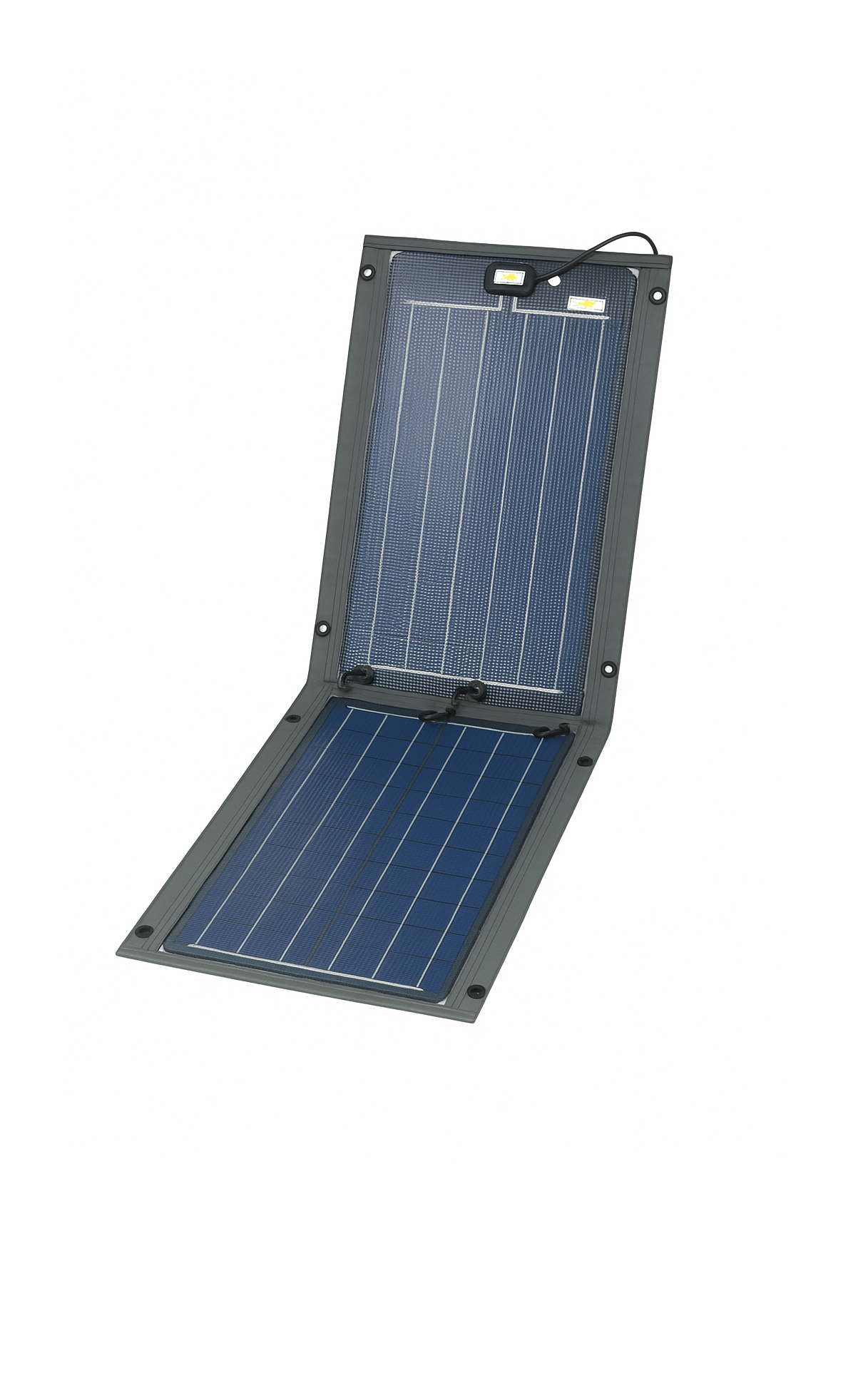

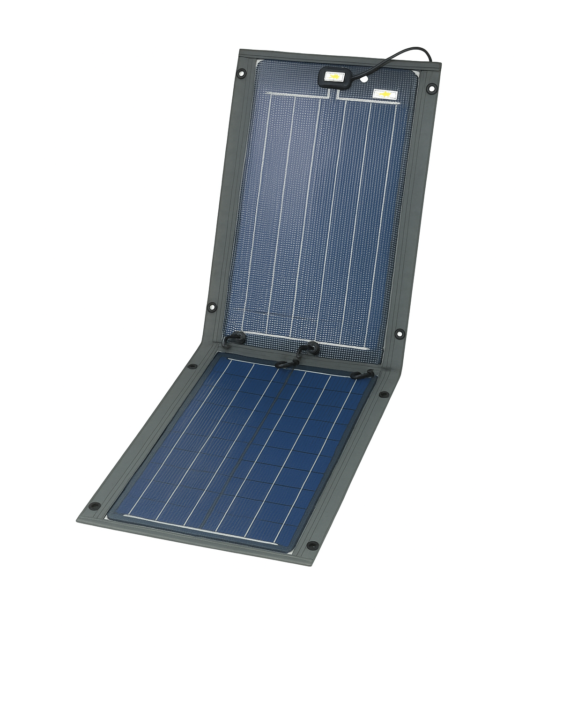

TBA | RX-21052 | 12V 50 Wp 1265 x 429 mm 2.6 kg 3.00A | €645,00 |
Specifications
Designation | Value |
---|---|
Pmax | 50.0 Wp |
Imax | 2.70 A |
Umax | 18.52 V |
Uoc | 23.5 V |
Isc | 3.00 A |
No of cells | 38 Stck. |
Cell size | 52.0 x 156.0 mm |
Laminate | ETFE/EVA/ETFE |
Length | 1265.0 mm |
Width | 429.0 mm |
Product weight | 2.6 kg |
System Voltage | 12 V |
Protection Class | IP68 |
Base plate | Alu-Sandwich dark grey |
Cable outlet | Front side |
Cable length | 5 m |
