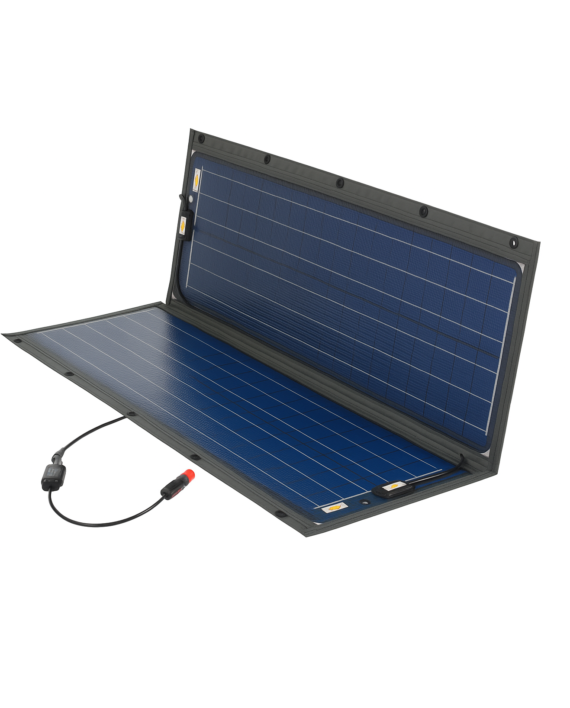

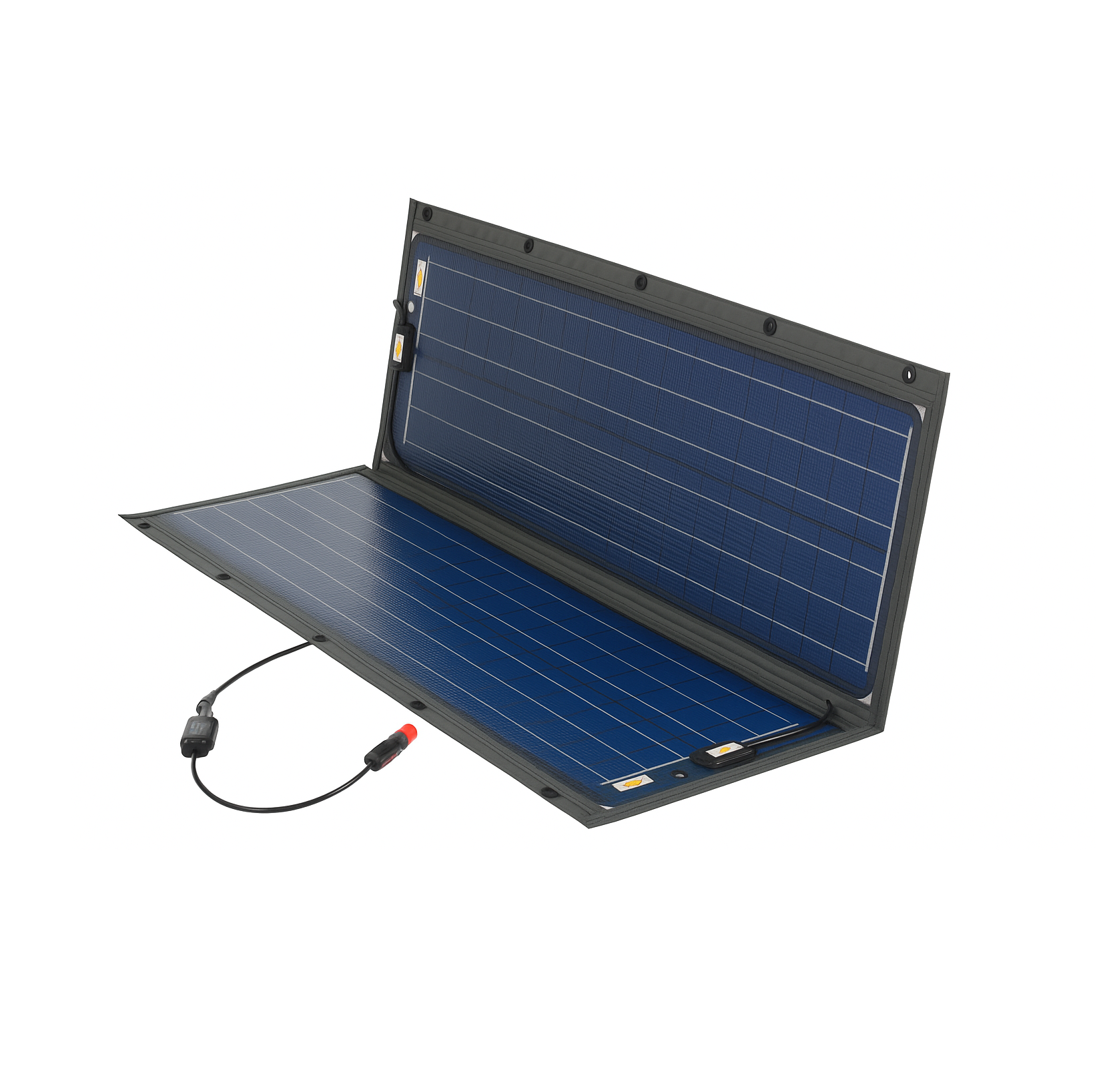

Solar Panel RX22039 – 12V 90 Wp, 9mm eyelets, dark grey 872×826 m
€974.79 ex. VAT 19%
Ordering Information
| In Stock | Part No. | Description | Price ex. VAT 19% |
|---|---|---|---|
| TBA | RX-22039 | 12V 90 Wp, 9mm eyelets, dark grey 872×826 mm | € 974,79 |
Specifications
| Designation | Value |
|---|---|
| Pmax | 76.0 Wp |
| Imax | 4.00 A |
| Umax | 19.00 V |
| Uoc | 22.8 V |
| Isc | 4.40 A |
| No of cells | 72 Stck. |
| Cell size | 39.0 x 104.0 |
| Laminate | ETFE/EVA/ETFE |
| Length | 873.0 mm |
| Width | 826.0 mm |
| Product weight | 4.2 kg |
| System Voltage | 12 V |
| Protection Class | IP68 |
| Base plate | Alu-Sandwich dark grey |
| Cable outlet | Front side |
| Cable length | 5 m |
