Ordering Information
In Stock | Part No. | Description | Price ex. VAT 19% |
---|---|---|---|

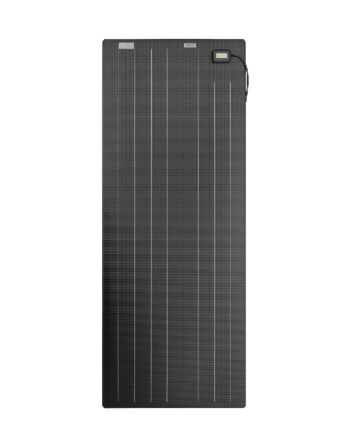

TBA | TX-22239 | 24V 76 Wp 873 x 826 mm 4.2 kg 2.20A | €863,86 |
Specifications
Designation | Value |
---|---|
Pmax | 76.0 Wp |
Imax | 2.00 A |
Umax | 38.00 V |
Uoc | 45.6 V |
Isc | 2.20 A |
No of cells | 72 Stck. |
Cell size | 39.0 x 156.0 |
Laminate | ETFE/EVA/ETFE |
Length | 873.0 mm |
Width | 826.0 mm |
Product weight | 4.2 kg |
System Voltage | 24 V |
Protection Class | IP68 |
Base plate | Alu-Sandwich white |
Cable outlet | Front side |
Cable length | 1 m |
