Ordering Information
In Stock | Part No. | Description | Price ex. VAT 19% |
---|---|---|---|

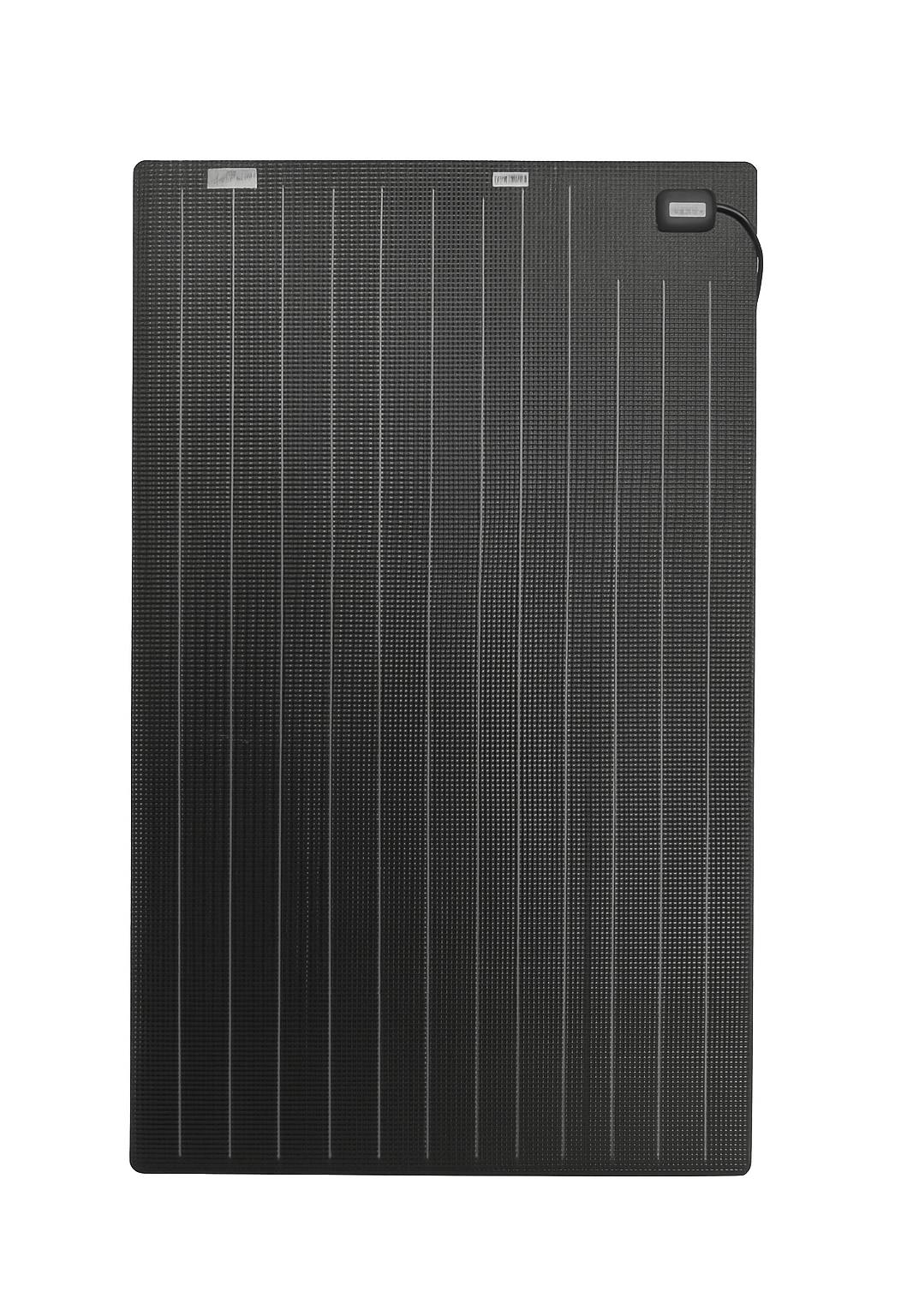

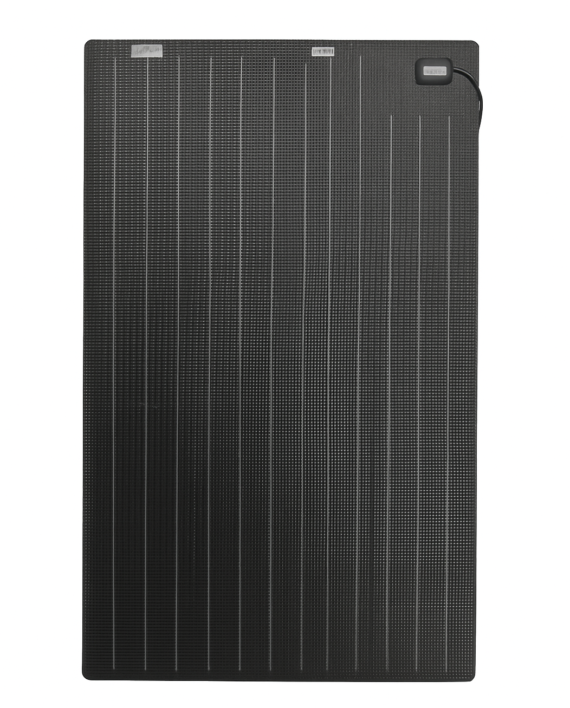

TBA | SW-20143 | 2V 14 Wp 468 x 243 mm 0.8 kg 0.72A | €245,00 |
Specifications
Designation | Value |
---|---|
Pmax | 14.0 Wp |
Imax | 0.69 A |
Umax | 20.29 V |
Uoc | 25.4 V |
Isc | 0.72 A |
No of cells | 40 Stck. |
Cell size | 39.0 x 52.0 |
Laminate | ETFE/EVA/ETFE |
Length | 468.0 mm |
Width | 243.0 mm |
Product weight | 0.8 kg |
System Voltage | 12 V |
Protection Class | IP68 |
Base plate | ALU-Sandwich white |

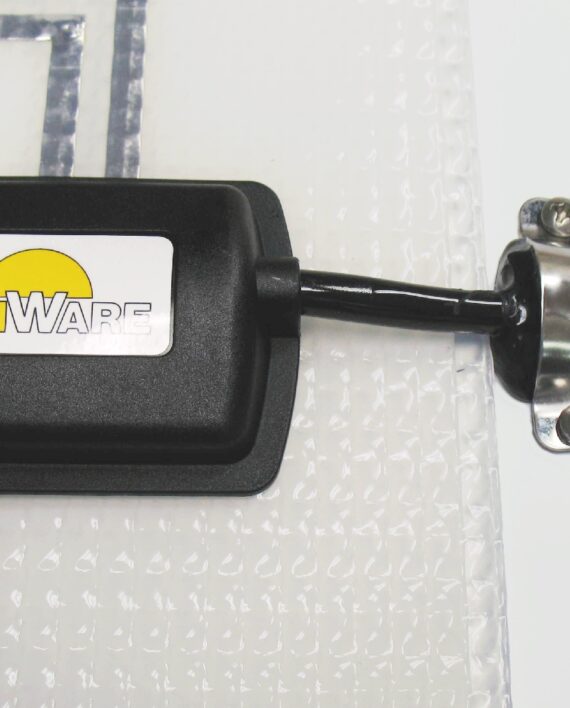

Cable outlet | Front side |
Cable length | 3 m |
