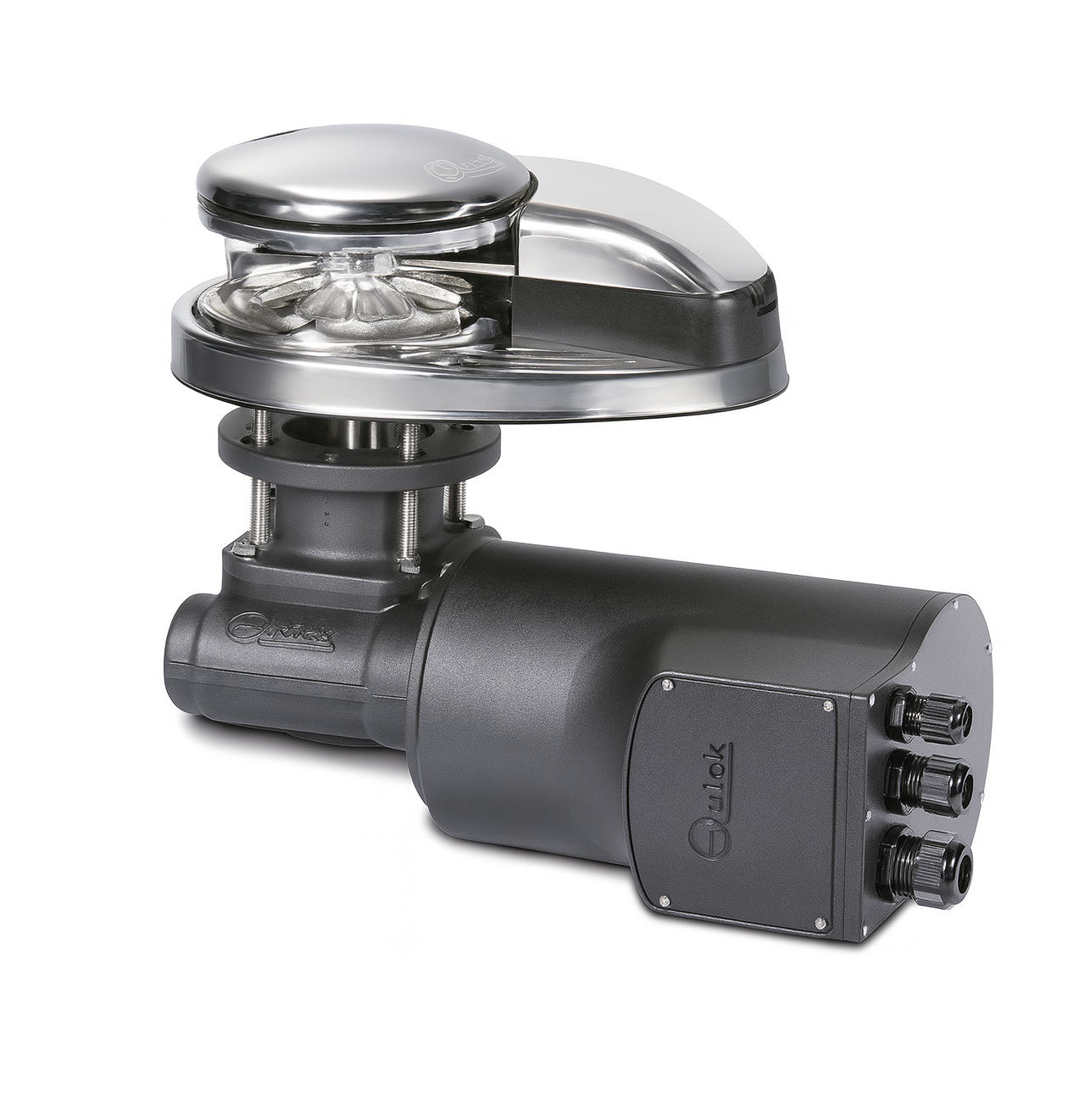

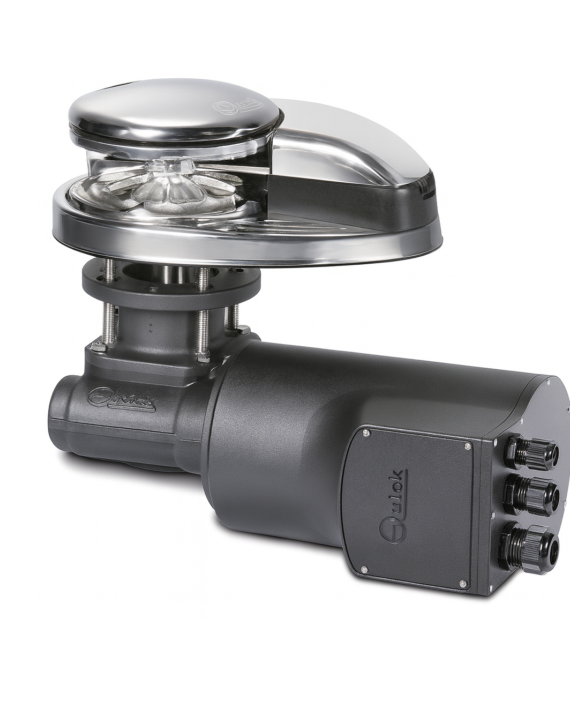

PRINCE – DP3 12/24V 1500W for boats from 12 to 15 meters (39 – 49 ft)

1,460.001,693.00 ex. VAT 19%

Prince Windlass Series – Vertical in anodized aluminium – Including solenoids unit

Clear





Prince – DP3
• Vertical windlasses
• Stainless steel Aisi 316 base
• With and without drum
• Rope and chain on a single gypsy
• Integrated sensor and magnet for chain counter
• Manual Free-Fall system
• Supplied with pressure lever
• Inspection lid
• Motor watertight to IP67
• Anodized aluminium gearbox

Gypsy and Drum
Ø 130 mm / 5″1/8

Gypsy
8 mm – 5/16″ | 10 mm – 3/8″

Rope
1/2″ (12,7 mm) – 9/16″ (14,2 mm) – 5/8″ (15,8 mm) | 5/8″ (15,8 mm)

Ordering Information

PRINCE – DP3 12/24V 1500W for boats from 12 to 15 meters (39 – 49 ft)

Part No. Description Price ex. VAT 19%
DP3 1512 1500 W – 12 V €1,460.00
DP3 1512D 1500 W – 12 V – With drum Ø 130 mm €1,542.00
DP3 1524 1500 W – 24 V €1,518.00
DP3 1524D 1500W – 24 V – With drum Ø 130 mm €1,693.00

Specifications

General specifications
Models DP3 1512
DP3 1512D
DP3 1524
DP3 1524D
Motor Power 1500 W 1500 W
Motor Supply Voltage 12 V 24 V
Maximum Pull 1100Kg/2425lbs 1100Kg/2425lbs
Maximum Working Load 470Kg/1036lbs 540Kg/1190lbs
Working Load 160Kg/353lbs 180Kg/397lbs
Current absorption at working load (after an initial period of use) 155 A 85 A
Maximum Chain Speed (measurements taken with a gypsy for a 6 mm chain) 29,2 m/min
95.8 ft/min
29,7 m/min
97.4 ft/min
Maximum Chain Speed at working load (measurements taken with a gypsy for a 6 mm chain) 16,3 m/min
53.5 ft/min
19,0 m/min
62.3 ft/min
Weight (without drum) 20,4Kg/45lbs 20,4Kg/45lbs
Weight (with drum) 21,4Kg/47.2lbs 21,4Kg/47.2lbs
