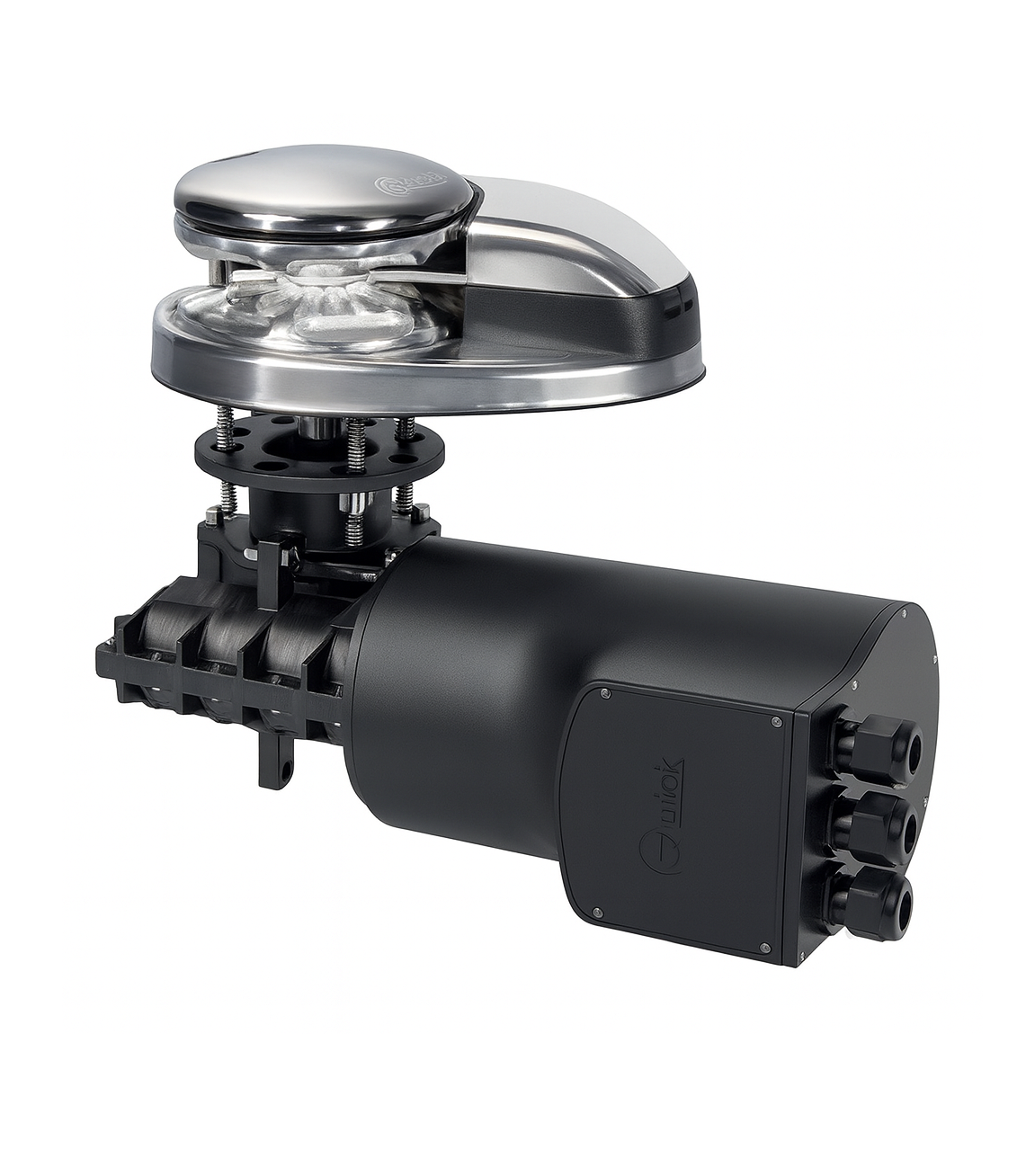

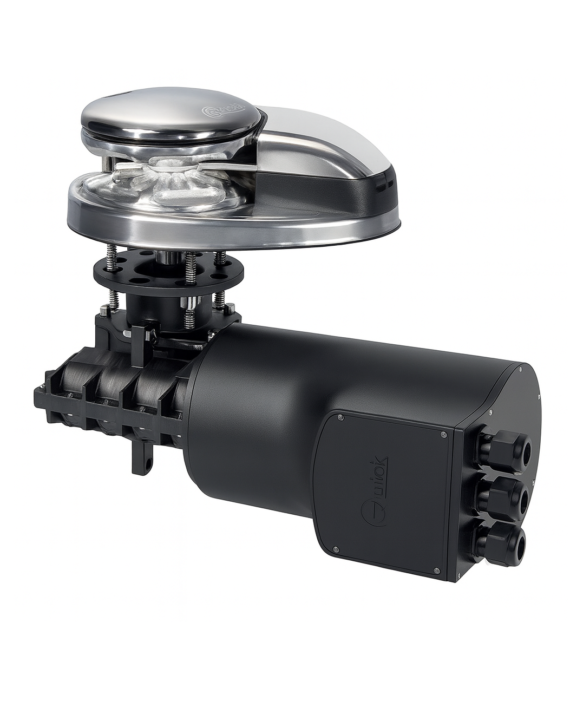

PRINCE – DP3 12/24V 1000W for boats from 10 to 13 meters (33 – 43 ft)

1,143.001,319.00 ex. VAT 19%

Prince Windlass Series – Vertical in anodized aluminium – Including solenoids unit

Clear

Prince – DP3
• Vertical windlasses
• Stainless steel Aisi 316 base
• With and without drum
• Rope and chain on a single gypsy
• Integrated sensor and magnet for chain counter
• Manual Free-Fall system
• Supplied with pressure lever
• Inspection lid
• Motor watertight to IP67
• Anodized aluminium gearbox

Gypsy and Drum
Ø 130 mm / 5″1/8

Gypsy
8 mm – 5/16″ | 10 mm – 3/8″

Rope
1/2″ (12,7 mm) – 9/16″ (14,2 mm) – 5/8″ (15,8 mm) | 5/8″ (15,8 mm)

Ordering Information

PRINCE – DP3 12/24V 1000W for boats from 10 to 13 meters (33 – 43 ft)

Part No. Description Price ex. VAT 19%
DP3 1012 1000 W – 12 V € 1,191.00
DP3 1012D 1000 W – 12 V – With drum Ø 130 mm € 1,284.00
DP3 1024 1000 W – 24 V € 1,143.00
DP3 1024D 1000W – 24 V – With drum Ø 130 mm € 1,319.00

Specifications

General specifications
Models DP3 1012
DP3 1012D
DP3 1024
DP3 1024D
Motor Power 1000 W 1000 W
Motor Supply Voltage 12 V 24 V
Maximum Pull 1000Kg/2204lbs 1000Kg/2204lbs
Maximum Working Load 370Kg/816lbs 450Kg/992lbs
Working Load 120Kg/264lbs 150Kg/331lbs
Current absorption at working load (after an initial period of use) 140 A 80 A
Maximum Chain Speed (measurements taken with a gypsy for a 6 mm chain) 39,6 m/min
129.2 ft/min
40,9 m/min
134.2 ft/min
Maximum Chain Speed at working load (measurements taken with a gypsy for a 6 mm chain) 20,4 m/min
66.9 ft/min
21,4 m/min
70.2 ft/min
Weight (without drum) 18,1Kg/39.9lbs 18,1Kg/39.9lbs
Weight (with drum) 19,1Kg/42.1lbs 19,1Kg/42.1lbs
