€2,393.50–€2,820.50 ex. VAT 19%
Dylan Windlass Series – Vertical Windlasses

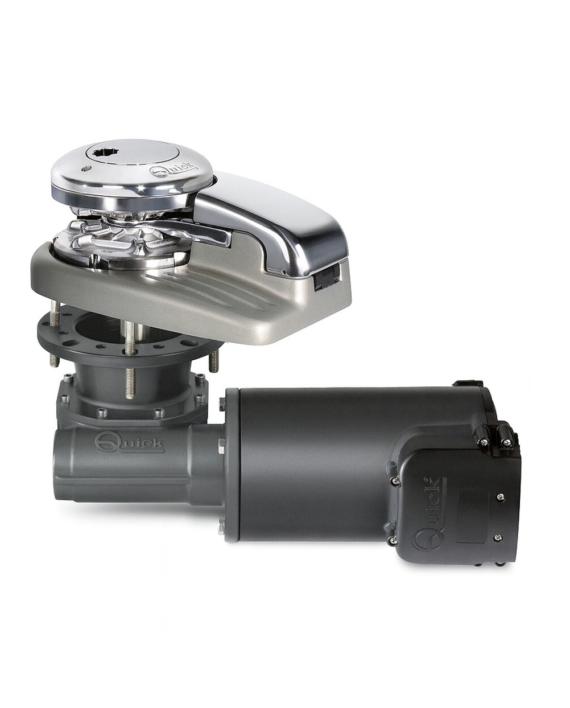

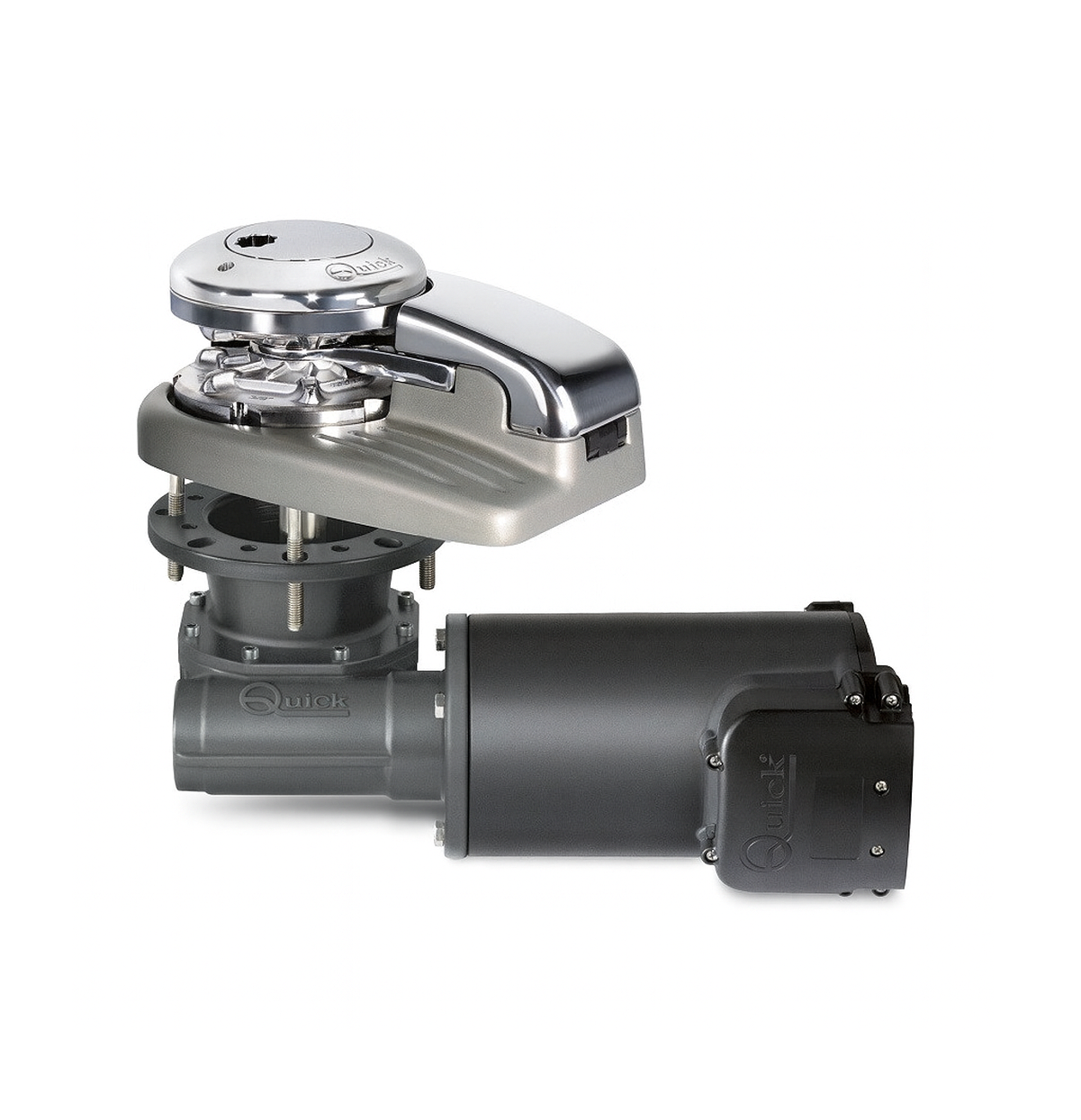

Dylan H – DH4
• Vertical windlasses
• Base in anodized aluminium in hard oxide
• With and without drum
• Rope and chain on a single gypsy
• Integrated sensor and magnet for chain counter
• Manual Free-Fall system
• Emergency manual lift system
• Supplied with pressure lever
• Inspection lid
• IP67 watertight motor
• Anodized aluminium gearbox
Gypsy and Drum
Ø 142 mm / 5″ 19/32
Gypsy
10 mm – 3/8″ | 12/13 mm
Rope
5/8″ (15,8 mm) – 3/4″ (19 mm) | 3/4″ (19 mm)
| Part No. | Description | Price ex. VAT 19% |
|---|---|---|
| DH4 1712 | 1700 W – 12 V | € 2,602.00 |
| DH4 1712D | 1700 W – 12 V – With drum Ø 142 mm | € 2,737.50 |
| DH4 1724 | 1700 W – 24 V | € 2,693.50 |
| DH4 1724D | 1700 W – 24 V – With drum Ø 142 mm | € 2,820.50 |
| General specifications | ||
|---|---|---|
| Models | DH4 1712 DH4 1712D |
DH4 1724 DH4 1724D |
| Motor Power | 1700 W | 1700 W |
| Motor Supply Voltage | 12 V | 24 V |
| Maximum Pull | 1150Kg/2535lbs | 1200Kg/2646lbs |
| Maximum Working Load | 470Kg/1036lbs | 570Kg/1257lbs |
| Working Load | 155Kg/342lbs | 190Kg/419lbs |
| Current absorption at working load (after an initial period of use) | 170 A | 95 A |
| Maximum Chain Speed (measurements taken with a gypsy for a 6 mm chain) | 33,5 m/min 109.9 ft/min |
39,0 m/min 128 ft/min |
| Maximum Chain Speed at working load (measurements taken with a gypsy for a 6 mm chain) | 16,2 m/min 53.1 ft/min |
20,8 m/min 68.2 ft/min |
| Weight (without drum) | 25,1Kg/55,3lbs | 25,1Kg/55,3lbs |
| Weight (with drum) | 26,4Kg/58.2lbs | 26,4Kg/58.2lbs |
