€910.50–€1,015.50 ex. VAT 19%

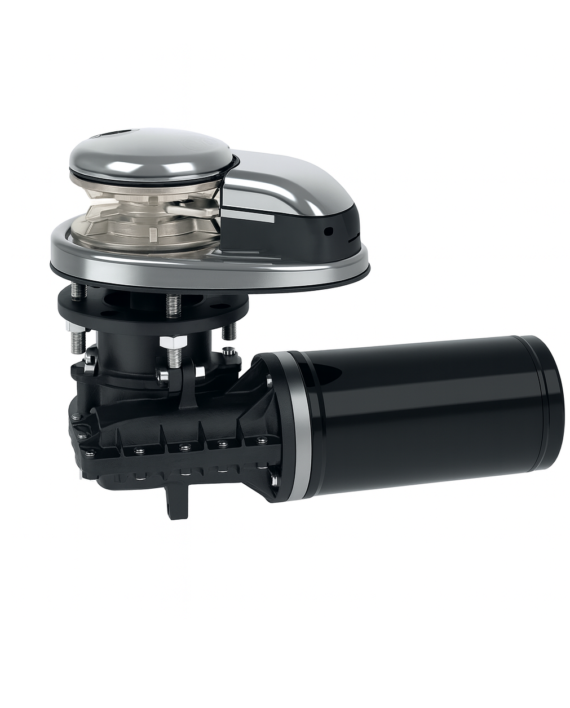

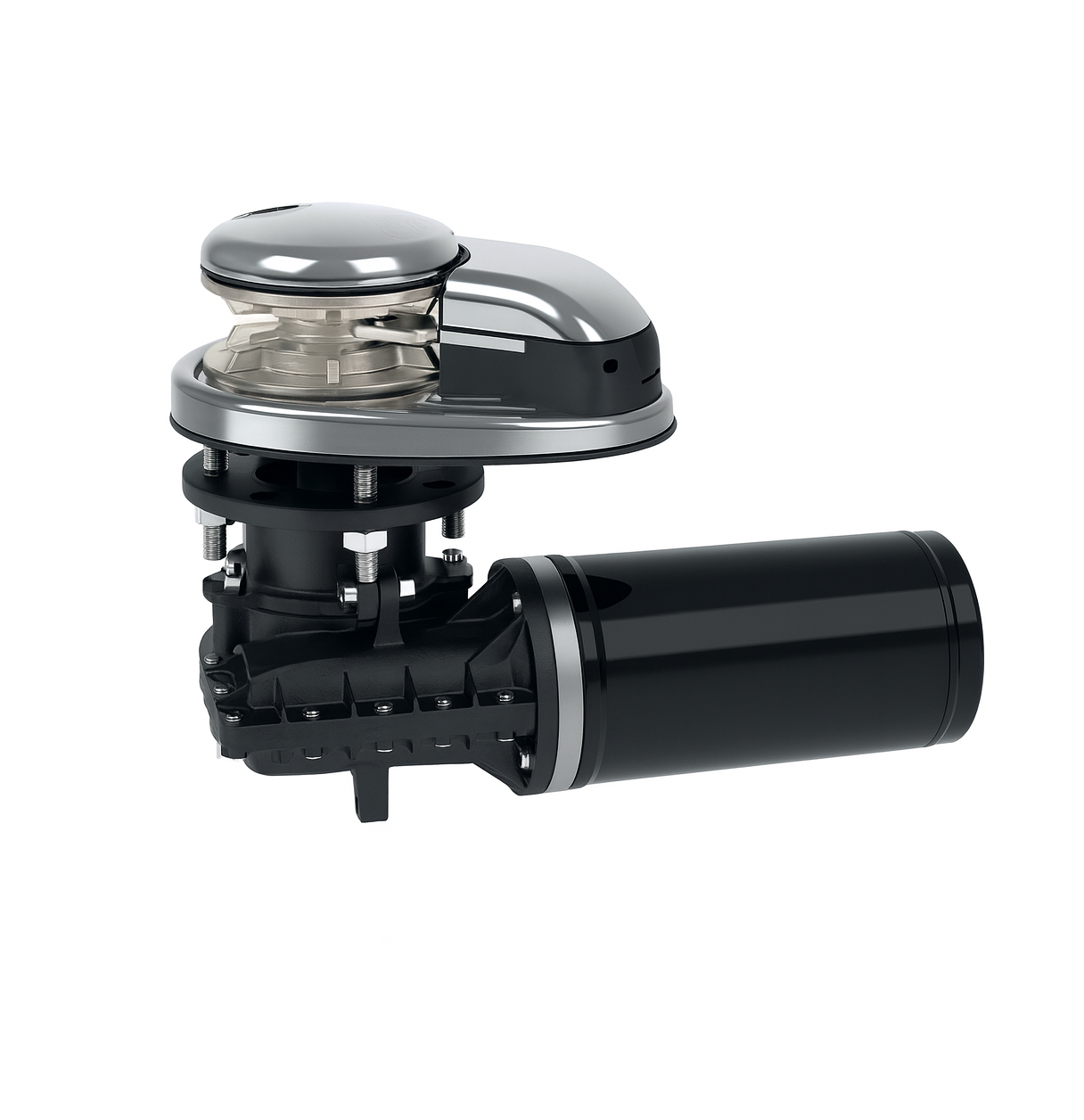

Prince Windlass Series – Vertical in anodized aluminium – Including solenoids unit
Prince – DP1
• Vertical windlasses
• Aisi 36 Stainless steel base
• With and without drum
• Integrated sensor and magnet for chain counter
• Manual Free-Fall system
• Inspection cover
• IP66 Watertight motor
• Anodized aluminium gearbox
Gypsy and Drum
Ø 90 mm / 3″ 35/64
Gypsy
6 mm | 1/4″
| Part No. | Description | Price ex. VAT 19% |
| DP1P_312 |
300 W – 12 V |
€ 910.50 |
| DP1P_312D |
300 W – 12 V – With drum Ø 90 mm |
€ 985.00 |
| DP1P_512 |
500 W – 12 V |
€ 937.00 |
| DP1P_512D |
500W – 12 V – With drum Ø 90 mm |
€ 1015.50 |
| General specifications | ||
|---|---|---|
| Models | DP1 312 DP1 312D |
DP1 512 DP1 512D |
| Motor Power | 300 W | 500 W |
| Motor Supply Voltage | 12 V | 12 V |
| Maximum Pull | 370Kg/814lbs | 660Kg/145lbs |
| Maximum Working Load | 120Kg/265lbs | 200Kg/441lbs |
| Working Load | 40Kg/88lbs | 65kg/143lbs |
| Current absorption at working load (after an initial period of use) | 60 A | 80 A |
| Maximum Chain Speed (measurements taken with a gypsy for a 6 mm chain) | 26,3 m/min 86.3 ft/min | 25,2 m/min 82,7 ft/min |
| Maximum Chain Speed at working load (measurements taken with a gypsy for a 6 mm chain) | 22,5 m/min 73.8 ft/min | 18,5 m/min 59,7 ft/min |
| Weight (without drum) | 7,4Kg/16.3lbs | 7,4Kg/16.3lbs |
| Weight (with drum) | 8,8Kg/19.4lbs | 8,8Kg/19.4lbs |
