€1,249.50–€1,406.00 ex. VAT 19%

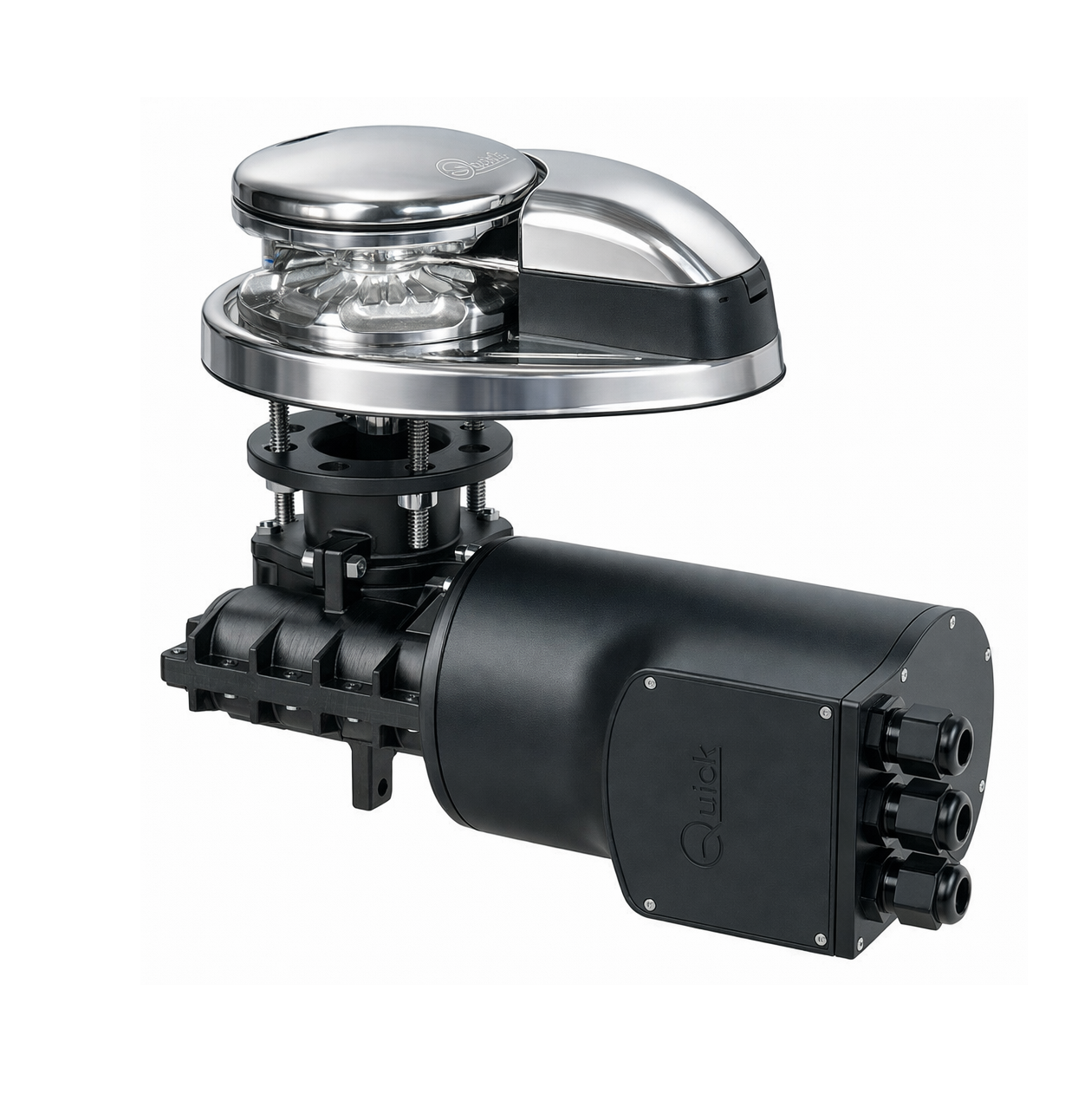

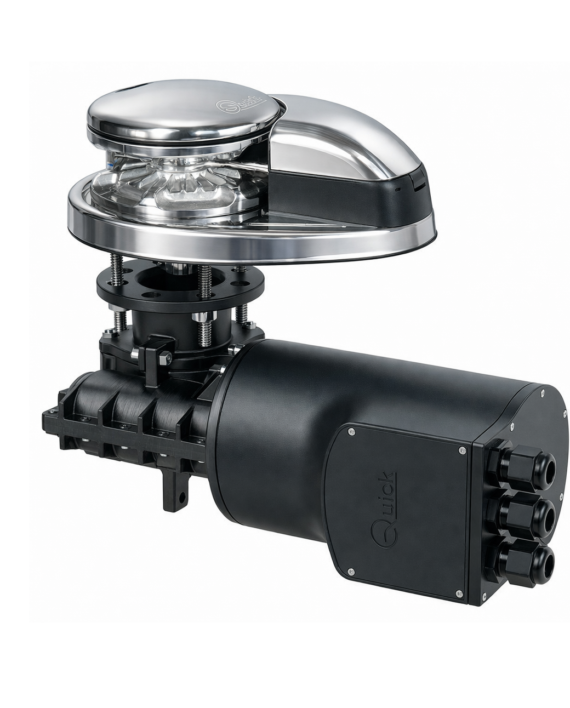

Prince Windlass Series – Vertical in anodized aluminium – Including solenoids unit
Prince – DP3
• Vertical windlasses
• Stainless steel Aisi 316 base
• With and without drum
• Rope and chain on a single gypsy
• Integrated sensor and magnet for chain counter
• Manual Free-Fall system
• Supplied with pressure lever
• Inspection lid
• Motor watertight to IP67
• Anodized aluminium gearbox
Gypsy and Drum
Ø 130 mm / 5″1/8
Gypsy
8 mm – 5/16″ | 10 mm – 3/8″
Rope
1/2″ (12,7 mm) – 9/16″ (14,2 mm) – 5/8″ (15,8 mm) | 5/8″ (15,8 mm)
| Part No. | Description | Price ex. VAT 19% |
|---|---|---|
| DP3P_712 | 700 W – 12 V | € 1,249.50 |
| DP3P_712D | 700 W – 12 V – With drum Ø 130 mm | € 1,364.00 |
| DP3P_724 | 700 W – 24 V | € 1,291.50 |
| DP3P_724D | 700W – 24 V – With drum Ø 130 mm | € 1,406.00 |
| General specifications | ||
|---|---|---|
| Models | DP3 712 DP3 712D |
DP3 724 DP3 724D |
| Motor Power | 700 W | 700 W |
| Motor Supply Voltage | 12 V | 24 V |
| Maximum Pull | 850Kg/1874lbs | 850Kg/1874lbs |
| Maximum Working Load | 250Kg/551lbs | 300Kg/661lbs |
| Working Load | 80Kg/176lbs | 100Kg/220lbs |
| Current absorption at working load (after an initial period of use) | 90 A | 55 A |
| Maximum Chain Speed (measurements taken with a gypsy for a 6 mm chain) | 27,4 m/min 89.9 ft/min |
26,4 m/min 86.6 ft/min |
| Maximum Chain Speed at working load (measurements taken with a gypsy for a 6 mm chain) | 14,4 m/min 47.2 ft/min |
14,8 m/min 48.6 ft/min |
| Weight (without drum) | 17,0Kg/37.5lbs | 17,0Kg/37.5lbs |
| Weight (with drum) | 18,0Kg/39.7lbs | 18,0Kg/39.7lbs |
