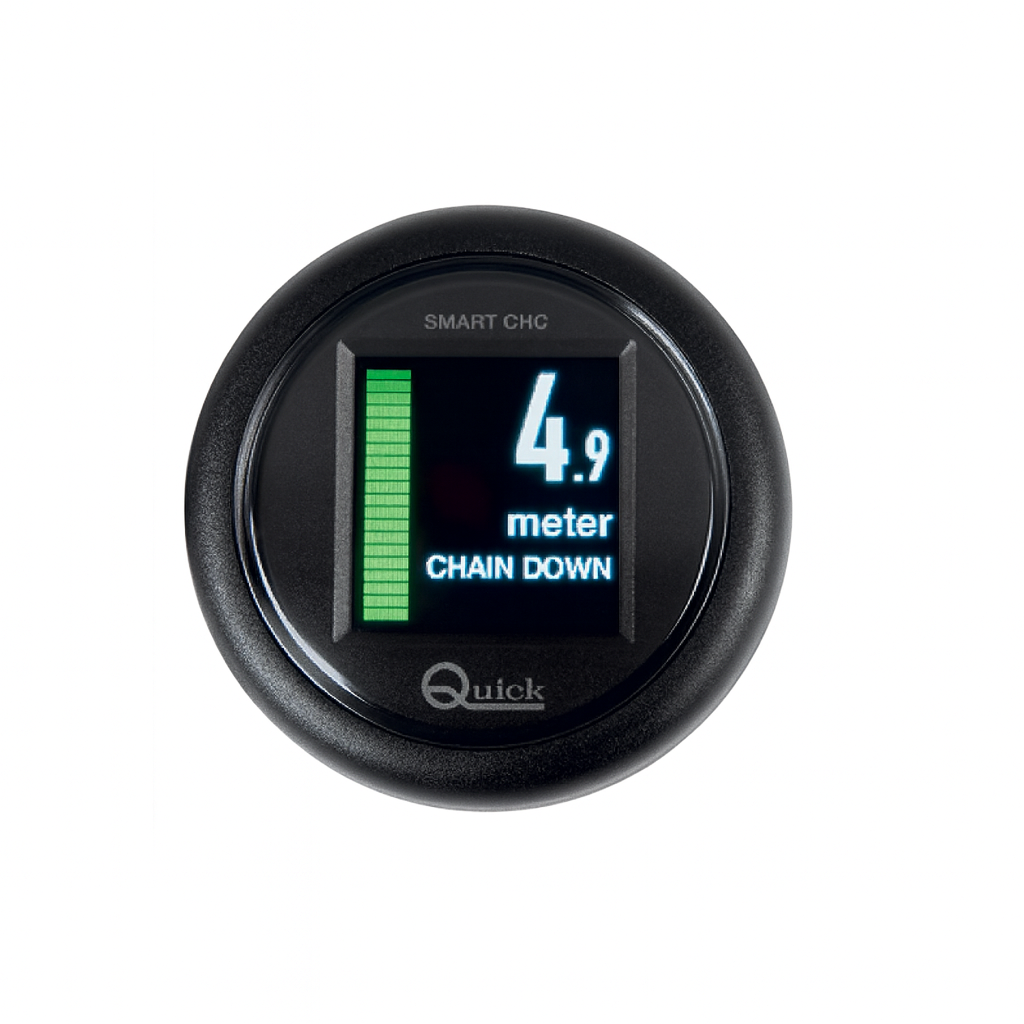

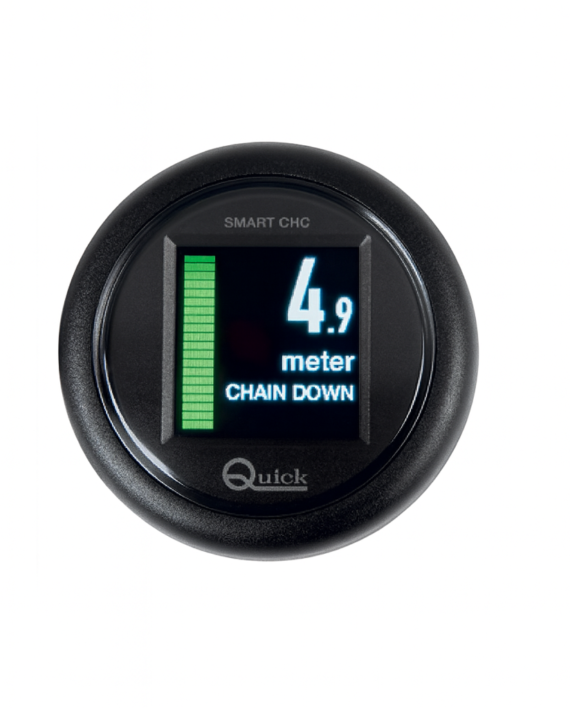

Chain counter panel CHC SMART

€197.00 ex. VAT 19%

Smart CHC is a chain counter display for recessed installation compatible on on/ff system and it is the ideal chain counter for small boats, for example bots with outboard motors.

Thanks to Smart CHC it is possible to view the chain lowered in meters or feet also directly on the smartphone, being configurable on it through NFC technology and using a dedicated app.

The colored display allows a perfect reading even in super bright light.

Smart CHC is characterized by IP67 protection rating and dimension ø52 mm.

CHC SMART
Chain counter for anchor

  • 1.44″ TFT sun readable color display
  • APP available for Android e iOS
  • Smartphone connection throught NFC
  • Protection grade: IP 67
  • Selectable meters or feet

Compatibility:
iOS: from iPhone 7 onwards (NFC tag supported), on devices running iOS13 or later
Android: NFC-enabled smartphones running Android 6 or later.

Ordering Information

Chain counter panel CHC SMART

Part No. Description Price ex. VAT 19%
CHC SMART Chain counter panel – Flash mount € 197.00

Specifications

General specifications
Supply Voltage 9 / 32 Vdc
Current absorbed when idling 60 mA
Operating temperature -20°C / +70°C (-4°F / +158°F)
Degree of protection IP67
