€2,260.00–€2,283.00 ex. VAT 19%
Eagle Windlass Series – Horizontal in hard-cote aluminium – Including solenoids unit

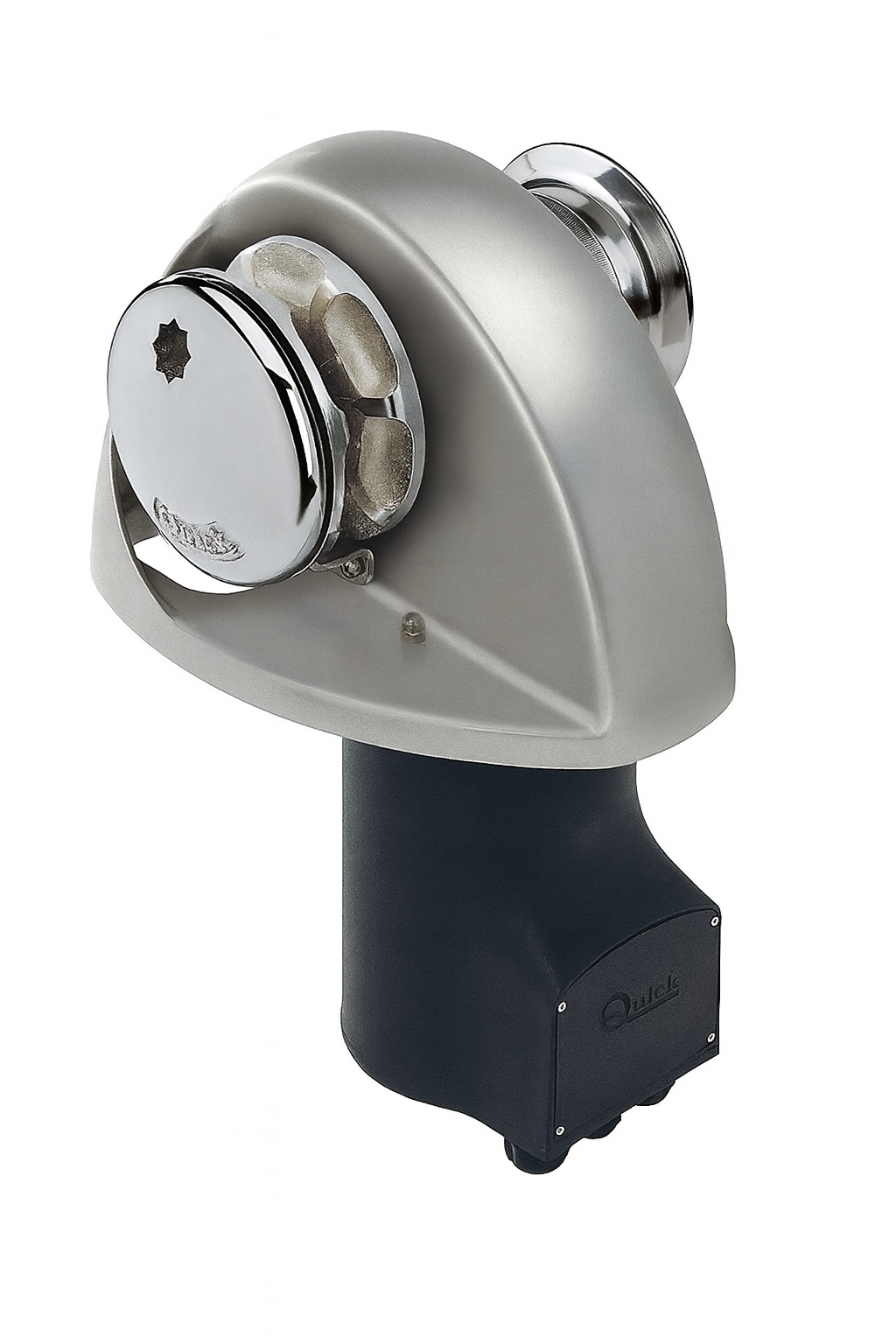

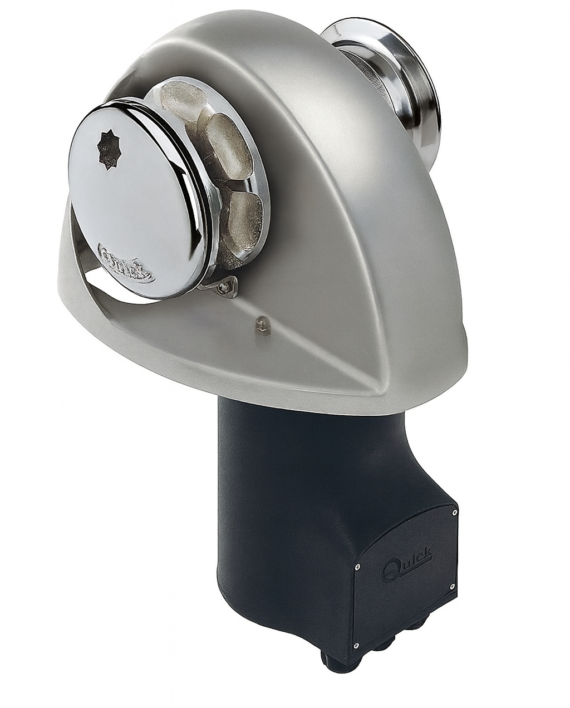

Eagle – E3
• Horizontal windlasses
• Base in anodized aluminum in hard oxide
• Integrated sensor and magnet for chain counter
• Manual Free-Fall system
• IP67 watertight motor
Gypsy and Drum
Ø 130 mm / 5″ 1/8
Gypsy
6 mm | 8 mm – 5/16″ | 10 mm – 3/8″

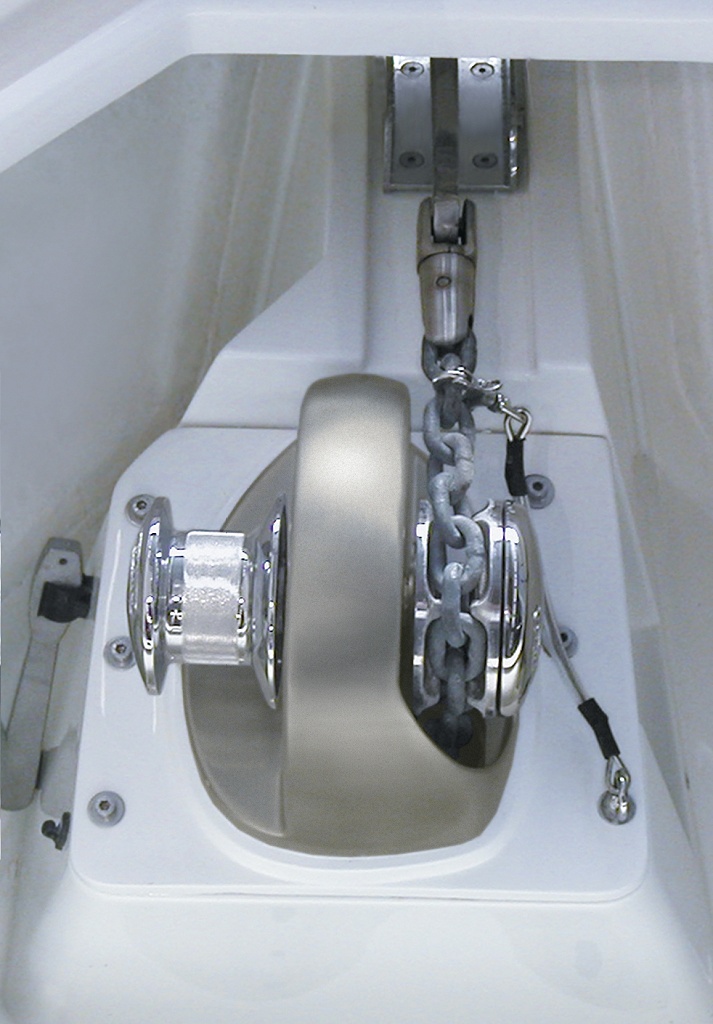

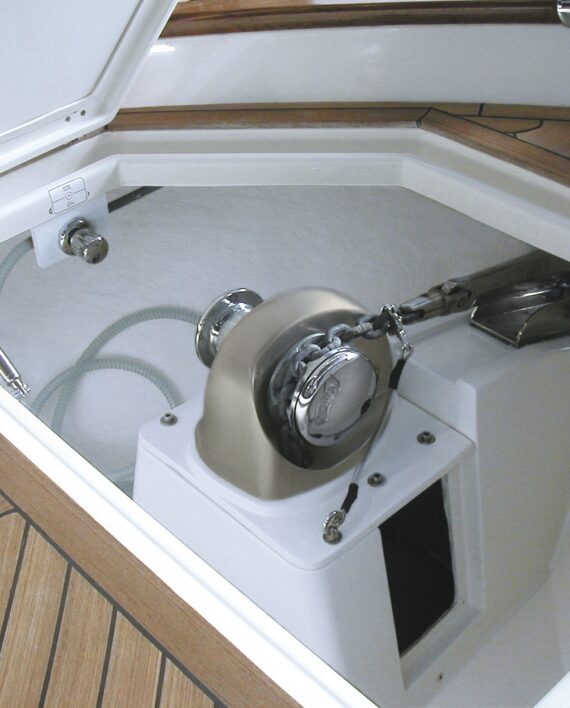

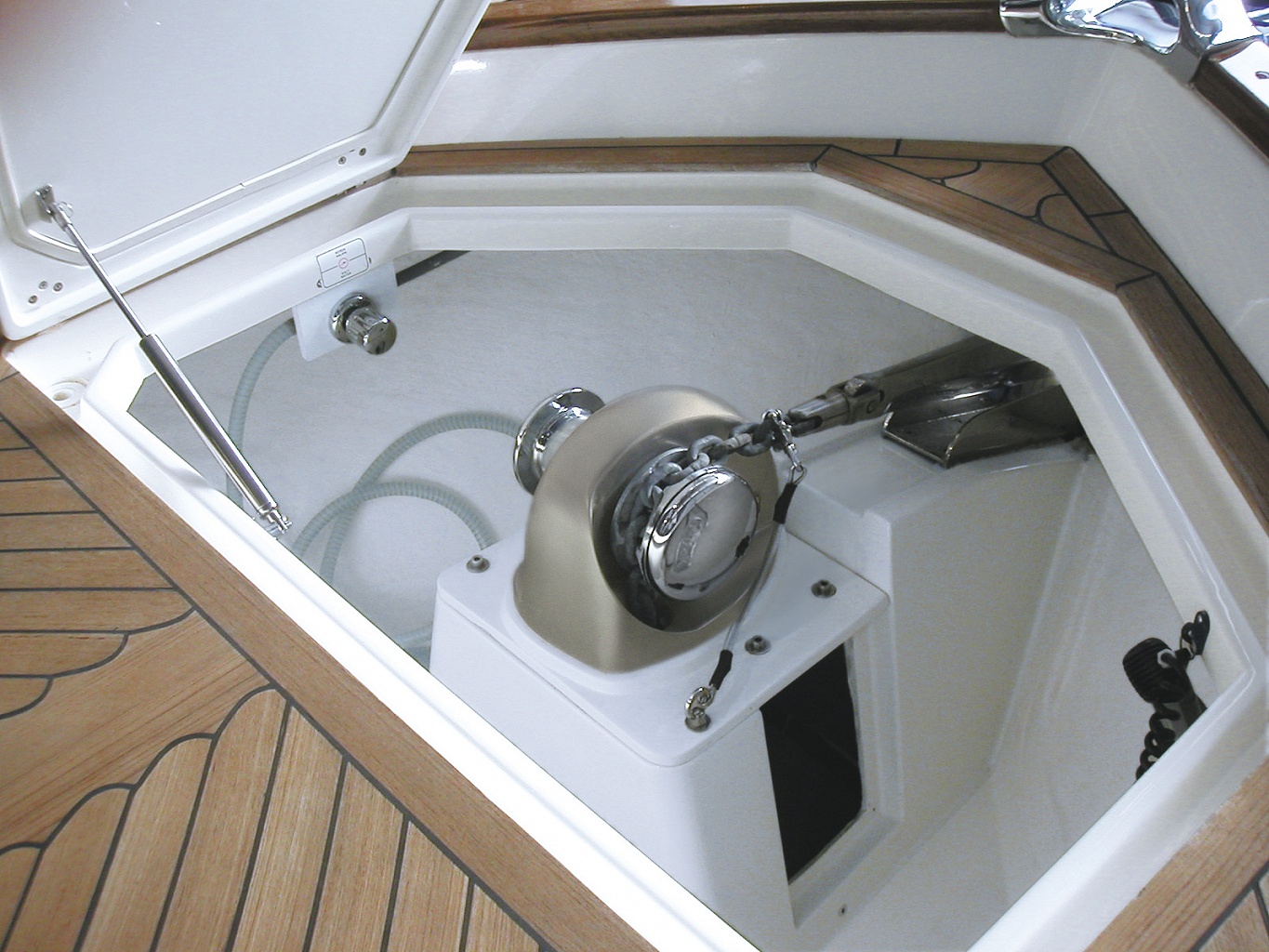

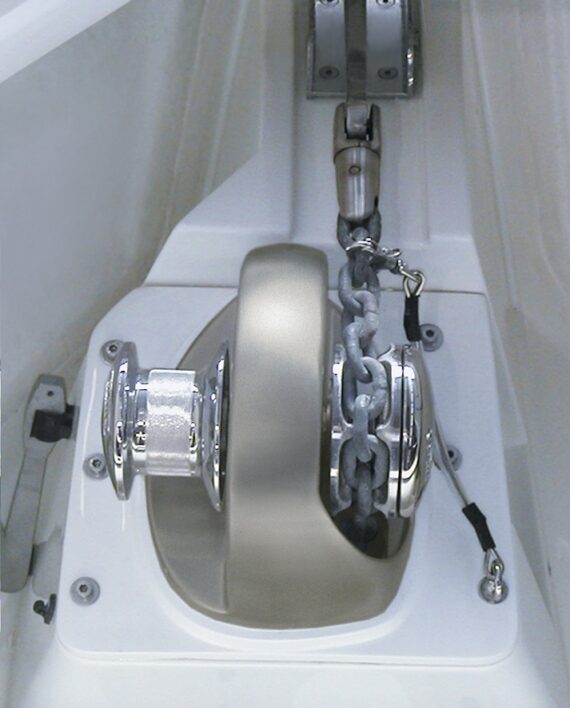

Easy Installation
The vertical motor allows for extremely
simple and quick installation.
| Part No. | Description | Price ex. VAT 19% |
|---|---|---|
| E3_712D | 700 W – 12 V – With drum Ø 130 mm | € 2,260.00 |
| E3_724D | 700 W – 24 V – With drum Ø 130 mm | € 2,283.00 |
| General specifications | ||
|---|---|---|
| Models | E3 712D | E3 724D |
| Motor Power | 700 W | 700 W |
| Motor Supply Voltage | 12 V | 24 V |
| Maximum Pull | 1070Kg/2359lbs | 1070Kg/2359lbs |
| Maximum Working Load | 300 Kg/661 lbs | 370 Kg/816 lbs |
| Working Load | 100Kg/220lbs | 125Kg/276lbs |
| Current absorption at working load (after an initial period of use) | 90 A | 60 A |
| Maximum Chain Speed (measurements taken with a gypsy for a 6 mm chain) | 28,7 m/min 94.2 ft/min |
33,5 m/min 109.9 ft/min |
| Maximum Chain Speed at working load (measurements taken with a gypsy for a 6 mm chain) | 15,8 m/min 51.8 ft/min |
15,0 m/min 49.2 ft/min |
| Weight | 22,2Kg/48.9lbs | 22,2Kg/48.9lbs |
