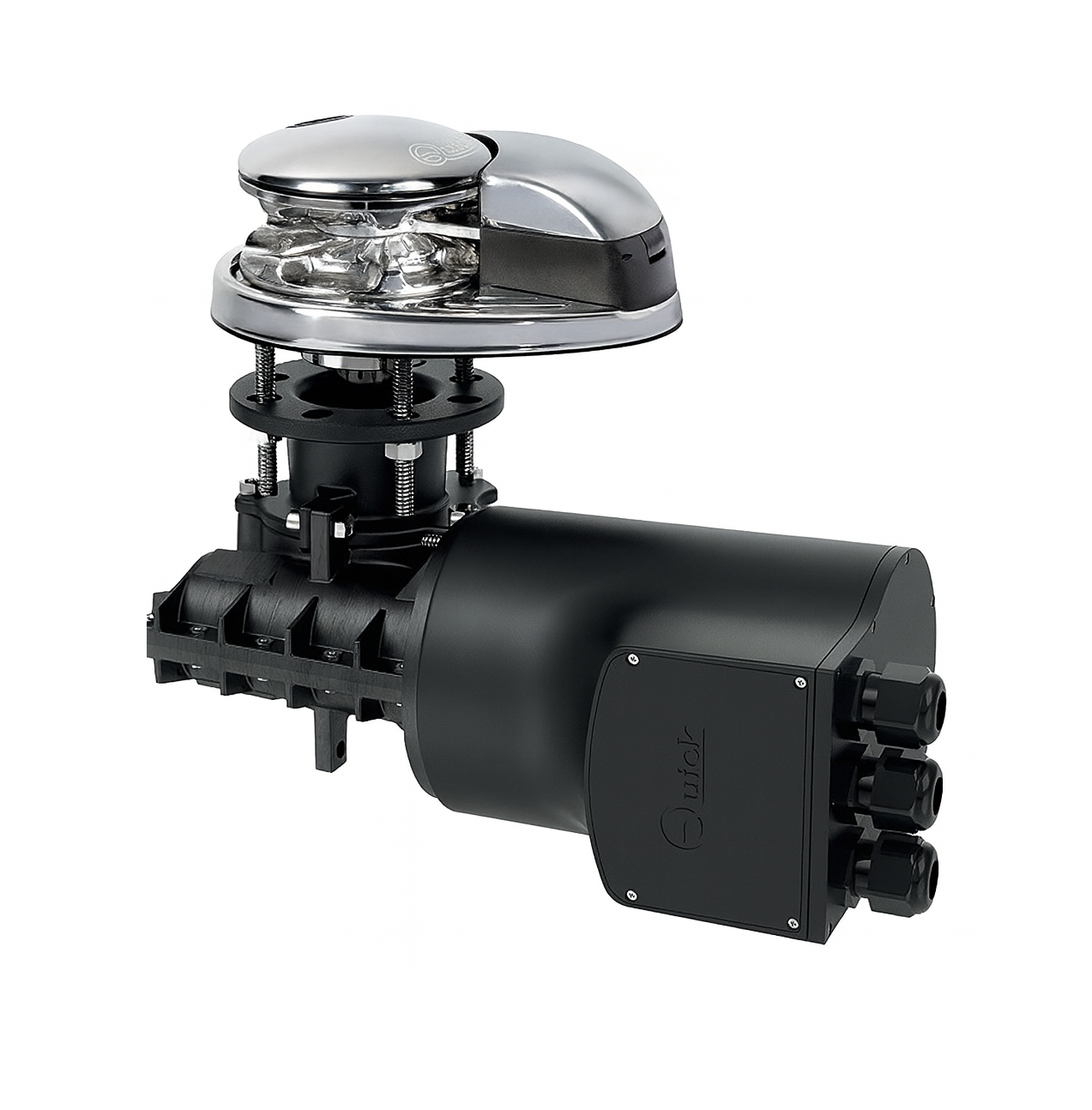

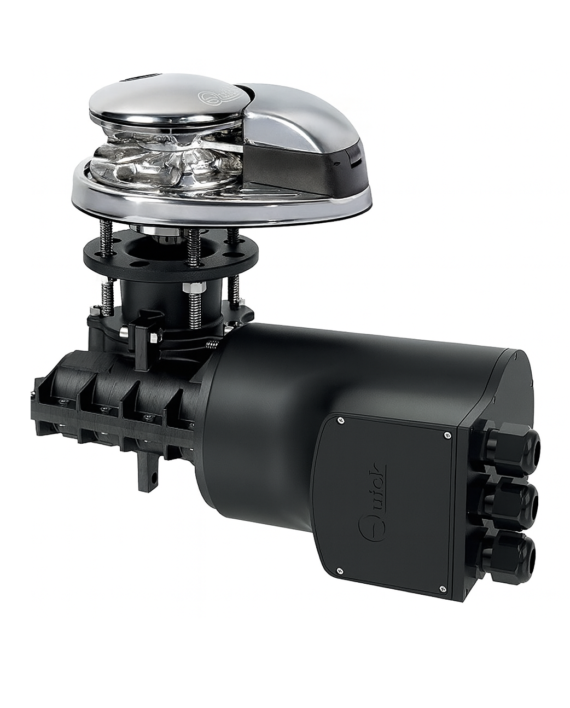

PRINCE – DP2 12/24V 700W for boats from 7 to 10 meters (23 – 33 ft)

1,070.001,197.00 ex. VAT 19%

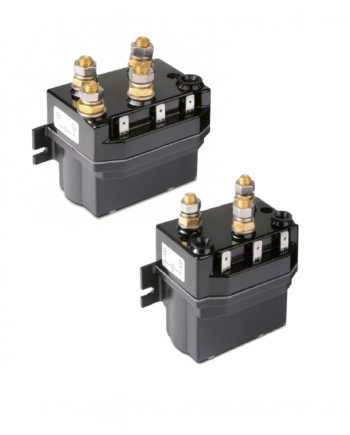

Prince Windlass Series – Vertical in anodized aluminium – Including solenoids unit

Clear

Prince – DP2
• Vertical windlasses
• Stainless steel Aisi 316 base
• With and without drum
• Rope and chain on a single gypsy
• Integrated sensor and magnet for chain counter
• Manual Free-Fall system
• Supplied with pressure lever
• Inspection lid
• IP67 Motor watertight
• Anodized aluminium gearbox

Gypsy and Drum
Ø 105 mm / 4″ 9/64

Gypsy
6 mm | 7 mm – 1/4″ | 8 mm | 5/16″

Rope
1/2″ (12,7 mm)

Ordering Information

PRINCE – DP2 12/24V 700W for boats from 7 to 10 meters (23 – 33 ft)

In Stock Part No. Description Price ex. VAT 19%
TBA  DP2 712 700 W – 12 V € 1,070.00
TBA  DP2 712D 700 W – 12 V – With drum Ø 105 mm € 1,161.00
TBA  DP2 724 700 W – 24 V € 1,095.00
TBA  DP2 724D 700 W – 24 V – With drum Ø 105 mm € 1,197.00

Specifications

General specifications
Models DP2 712
DP2 712D
DP2 724
DP2 724D
Motor Power 700 W 700 W
Motor Supply Voltage 12 V 24 V
Maximum Pull 680Kg/1499lbs 680Kg/1499lbs
Maximum Working Load 300Kg/661 lbs 320Kg/705lbs
Working Load 100Kg/220lbs 107Kg/236lbs
Current absorption at working load (after an initial period of use) 95 A 50 A
Maximum Chain Speed (measurements taken with a gypsy for a 8 mm chain) 22,6 m/min
74.1 ft/min
25,3 m/min
83.0 ft/min
Maximum Chain Speed at working load (measurements taken with a gypsy for a 8 mm chain) 11,6 m/min
39.1 ft/min
14,4 m/min
47.2 ft/min
Weight (without drum) 15,6Kg/34.4lbs 15,6Kg/34.4lbs
Weight (with drum) 16,3Kg/35.9lbs 16,3Kg/35.9lbs
