€1,265.50–€1,457.50 ex. VAT 19%

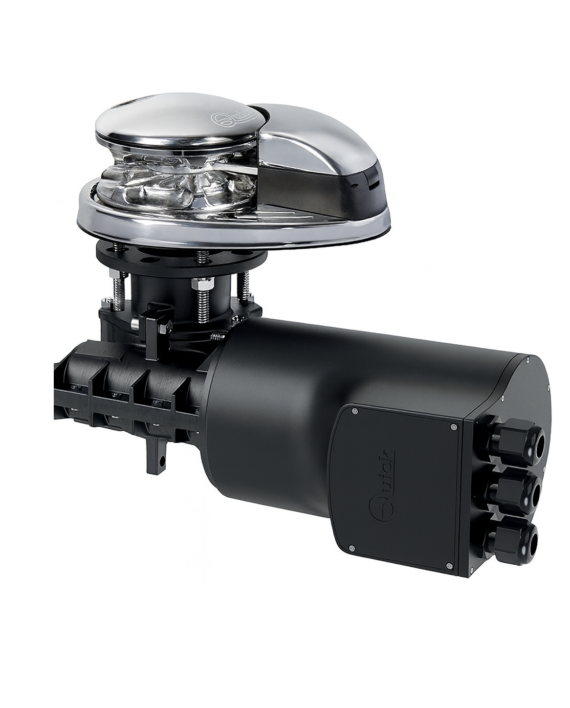

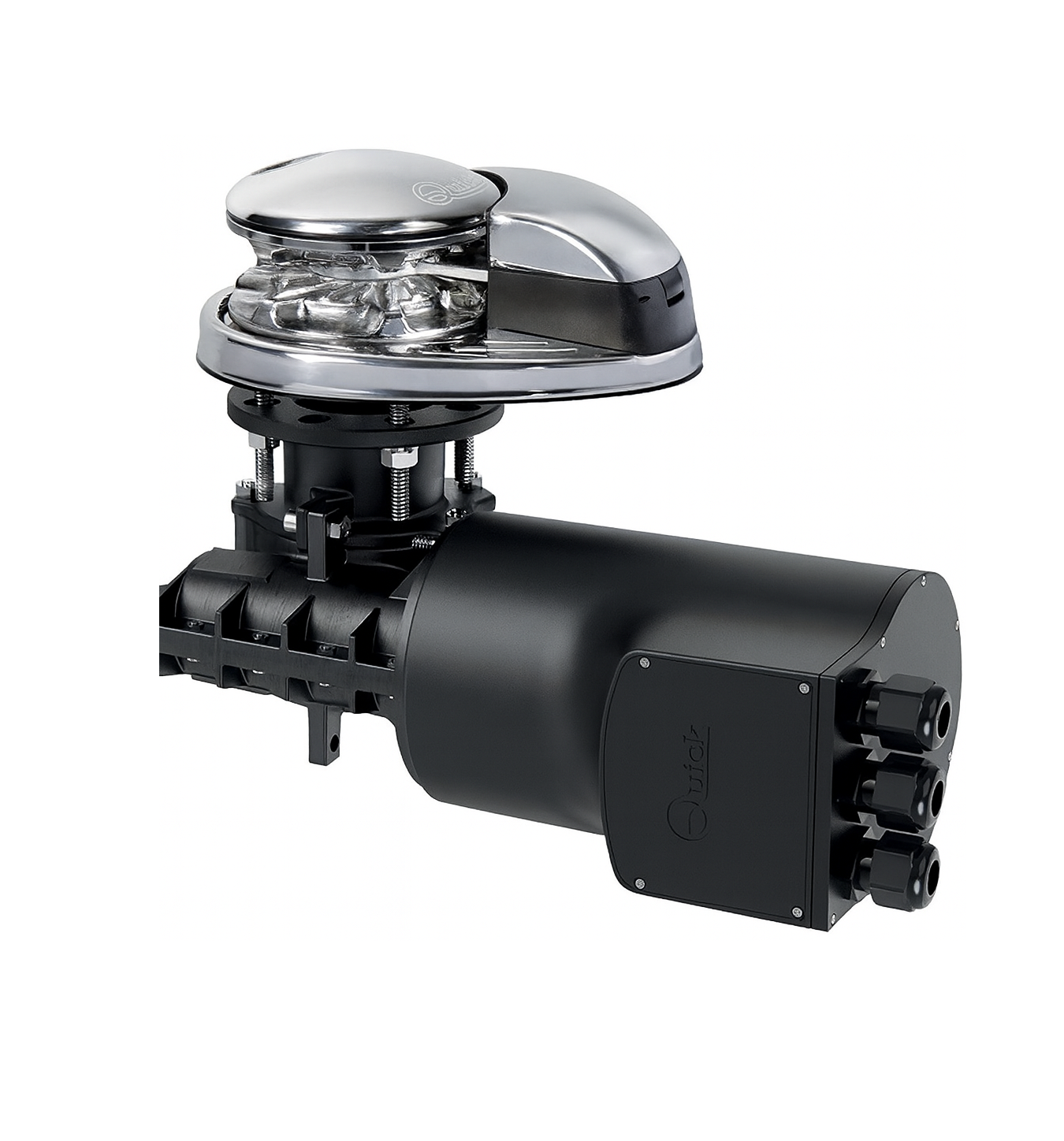

Prince Windlass Series – Vertical in anodized aluminium – Including solenoids unit
Prince – DP2
• Vertical windlasses
• Stainless steel Aisi 316 base
• With and without drum
• Rope and chain on a single gypsy
• Integrated sensor and magnet for chain counter
• Manual Free-Fall system
• Supplied with pressure lever
• Inspection lid
• IP67 Motor watertight
• Anodized aluminium gearbox
Gypsy and Drum
Ø 105 mm / 4″ 9/64
Gypsy
6 mm | 7 mm – 1/4″ | 8 mm | 5/16″
Rope
1/2″ (12,7 mm)
| Part No. | Description | Price ex. VAT 19% |
| DP2P_1012 | 1000 W – 12 V | € 1,265.50 |
| DP2P_1012D | 1000 W – 12 V – With drum Ø 105 mm | € 1,425.00 |
| DP2P_1024 | 1000 W – 24 V | € 1,298.00 |
| DP2P_1024D | 1000W – 24 V – With drum Ø 105 mm | €1,457.50 |
| General specifications | ||
|---|---|---|
| Models | DP2 1012 DP2 1012D |
DP2 1024 DP2 1024D |
| Motor Power | 1000 W | 1000 W |
| Motor Supply Voltage | 12 V | 24 V |
| Maximum Pull | 930Kg/2050lbs | 930Kg/2050lbs |
| Maximum Working Load | 420Kg/926lbs | 480Kg/1058lbs |
| Working Load | 140 Kg/309 lbs | 160 Kg/353 lbs |
| Current absorption at working load (after an initial period of use) | 130 A | 75 A |
| Maximum Chain Speed (measurements taken with a gypsy for a 6 mm chain) | 31,2 m/min 102.4 ft/min |
30,1 m/min 98.8 ft/min |
| Maximum Chain Speed at working load (measurements taken with a gypsy for a 6 mm chain) | 16,5 m/min 54.1 ft/min |
19,1 m/min 62.7 ft/min |
| Weight (without drum) | 16,7Kg/36.8lbs | 16,7Kg/36.8lbs |
| Weight (with drum) | 17,4Kg/38.4lbs | 17,4Kg/38.4lbs |
