€1,031.50–€1,189.00 ex. VAT 19%

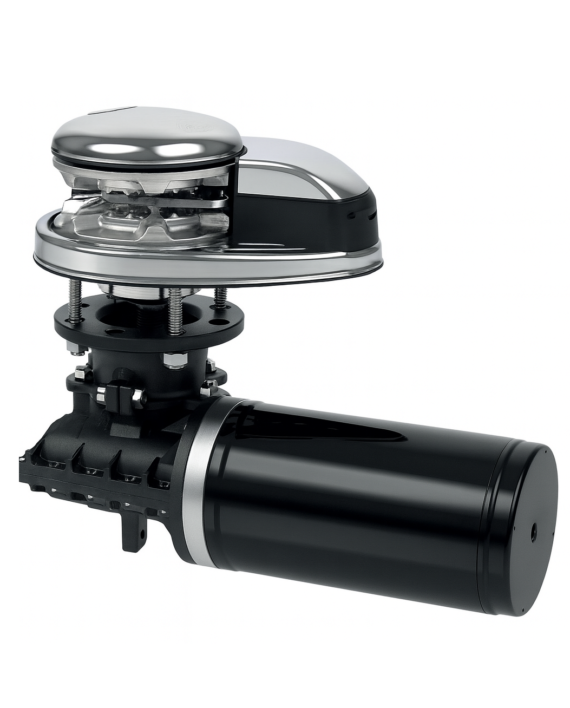

Prince Windlass Series – Vertical in anodized aluminium – Including solenoids unit
Prince – DP2
• Vertical windlasses
• Stainless steel Aisi 316 base
• With and without drum
• Rope and chain on a single gypsy
• Integrated sensor and magnet for chain counter
• Manual Free-Fall system
• Supplied with pressure lever
• Inspection lid
• IP66 Motor watertight
• Anodized aluminium gearbox
Gypsy and Drum
Ø 105 mm / 4″ 9/64
Gypsy
6 mm | 7 mm – 1/4″ | 8 mm | 5/16″
Rope
1/2″ (12,7 mm)
| Part No. | Description | Price ex. VAT 19% |
| DP2P_512 |
500 W – 12 V |
€ 1031.50 |
| DP2P_512D |
500 W – 12 V – With drum Ø 105 mm |
€ 1152.00 |
| DP2P_524 |
500 W – 24 V |
€ 1066.00 |
| DP2P_524D |
500W – 24 V – With drum Ø 105 mm |
€1,189.00 |
| General specifications | ||
|---|---|---|
| Models | DP2 512 DP2 512D |
DP2 524 DP2 524D |
| Motor Power | 500 W | 500 W |
| Motor Supply Voltage | 12 V | 24 V |
| Maximum Pull | 660Kg/1455lbs | 660Kg/1455lbs |
| Maximum Working Load | 200Kg/441lbs | 220Kg/485lbs |
| Working Load | 65Kg/143lbs | 70 Kg / 154 lbs |
| Current absorption at working load (after an initial period of use) | 80 A | 40 A |
| Maximum Chain Speed (measurements taken with a gypsy for a 6 mm chain) | 28,9 m/min 94.8 ft/min |
28,2 m/min 92.5 ft/min |
| Maximum Chain Speed at working load (measurements taken with a gypsy for a 6 mm chain) | 24,3 m/min 79.7 ft/min |
24,1 m/min 79.1 ft/min |
| Weight (without drum) | 9,8Kg/21.6lbs | 9,8Kg/21.6lbs |
| Weight (with drum) | 10,7Kg/23.6lbs | 10,7Kg/23.6lbs |
