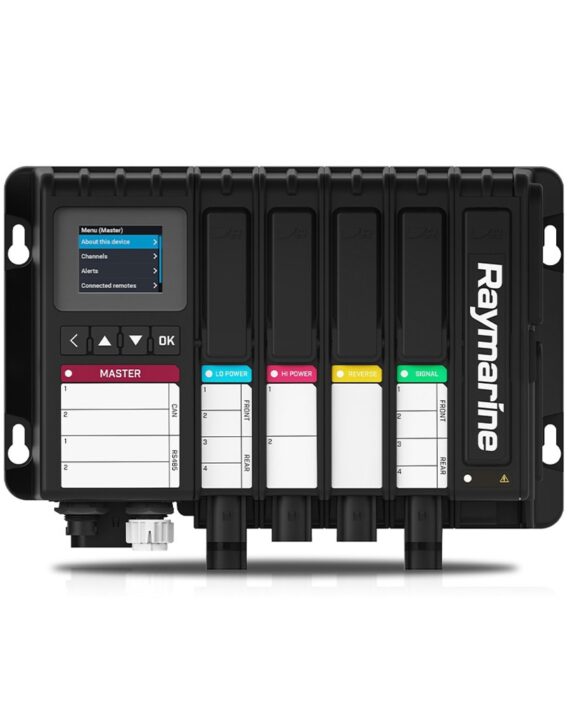

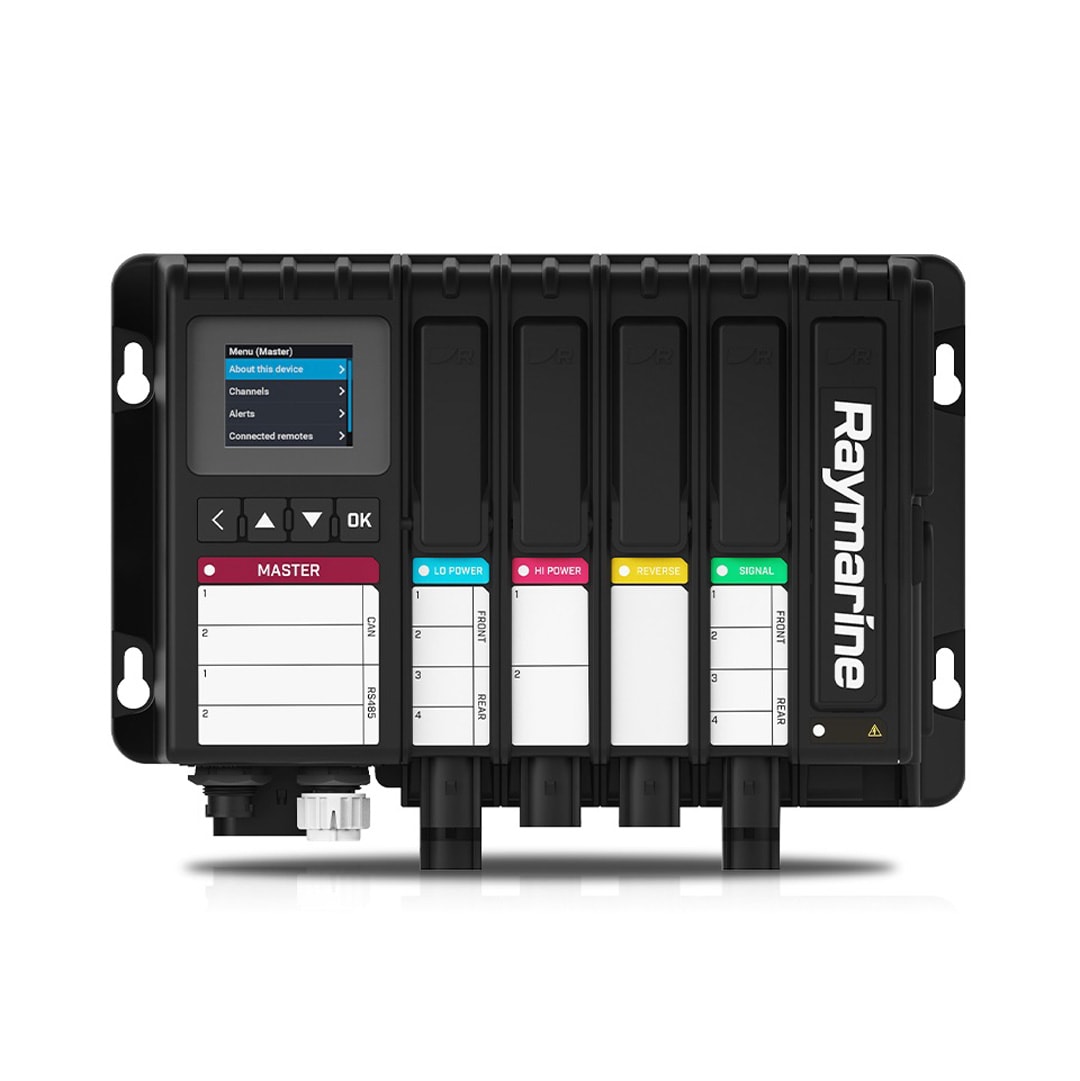

MODULAR DIGITAL CONTROL SYSTEM
YachtSense™ is an advanced digital control system affording total command and complete awareness of a vessel’s electrical systems. A modular and highly customizable digital switching solution, YachtSense defines the future of vessel automation for boat builders and system integrators. More than just digital switching. YachtSense digital control modules let you monitor vessel systems and support remote connectivity, so you are always in sync with your boat.
Master Module Technical Specifications
Part Number: E70592
- The Master module is required for all installation scenarios and is supplied with a power supply module.
- The Master module can be controlled using a networked Multifunction display (MFD).
- The Master module is connected to Remote modules via a connection to a SeaTalkng® backbone.
- The Master module includes 2 x J1939 connections, 2 x RS-485 connections
Remote Module Technical Specifications
Part Number: E70593
- Remote modules are supplied with a power supply module.
- Remote modules include 8 x digital or analog input / output channels.
- Remote modules are connected to a Master module via a connection to a SeaTalkng® backbone.
Lo Power Module Technical Specifications
Part Number: E70594
-
- The Lo power module provides 4 x 10 A output channels.
High Power Module Technical Specifications
Part Number: E70595
-
-
- The Hi power module provides 2 x 20 A output channels.
-
Signal Module Technical Specifications
Part Number: E70597
- The Signal module provides 4 x digital or analog input / output channels.
Reverse Power Module Technical Specifications
Part Number: E70596
- The Reverse power module provides 1x 20 A bidirectional channel.
