€1,266.00 ex. VAT 19%
Sinewave Inverter / Charger
Perfect combination of two key functions
When inverters are combined in one box together with a battery charger, and a shore – to – inverter transfer relay, we use the term Combi’s. The WhisperPower’s combi’s are compact, space saving, robust and extremely powerful.

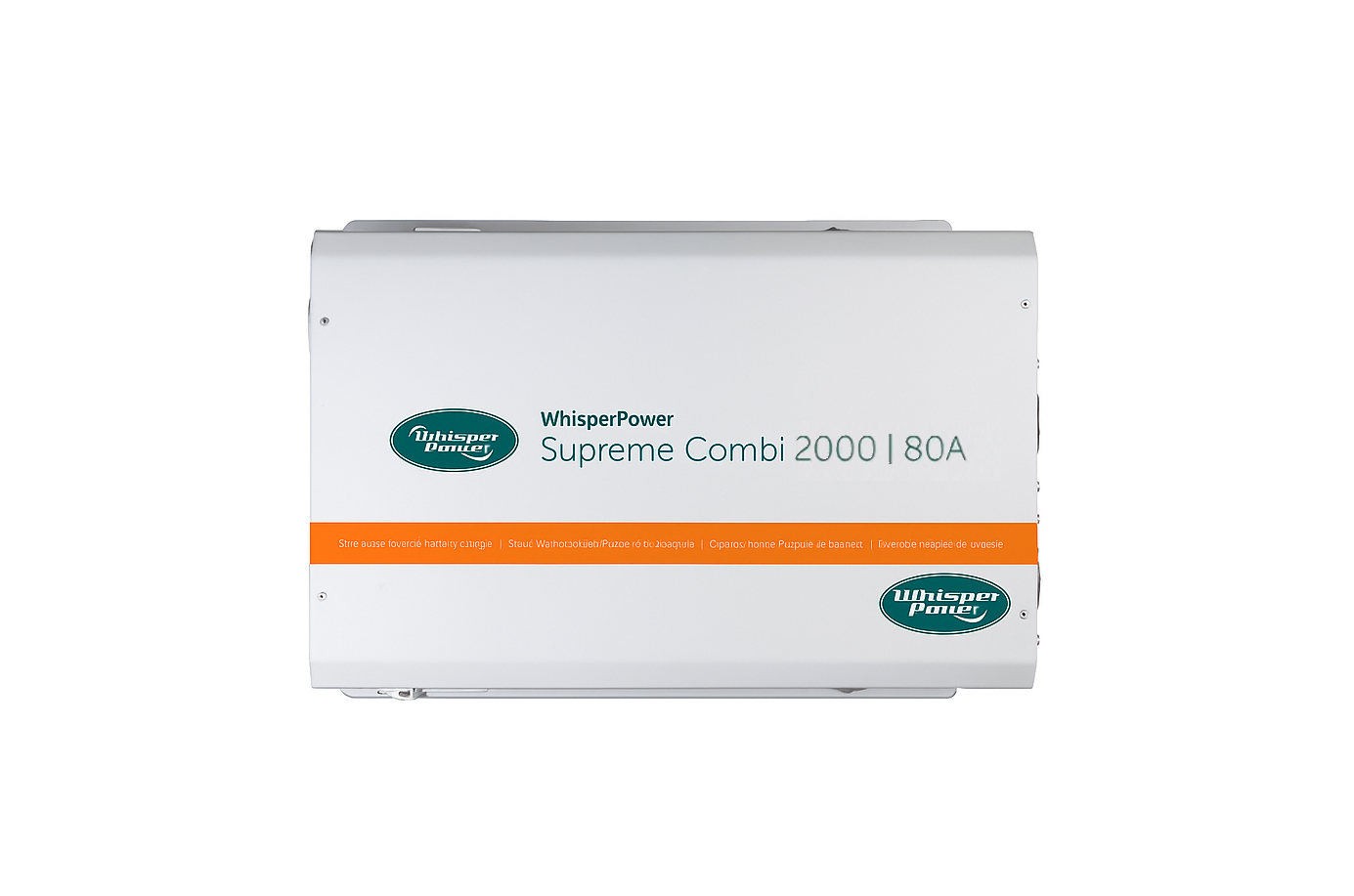

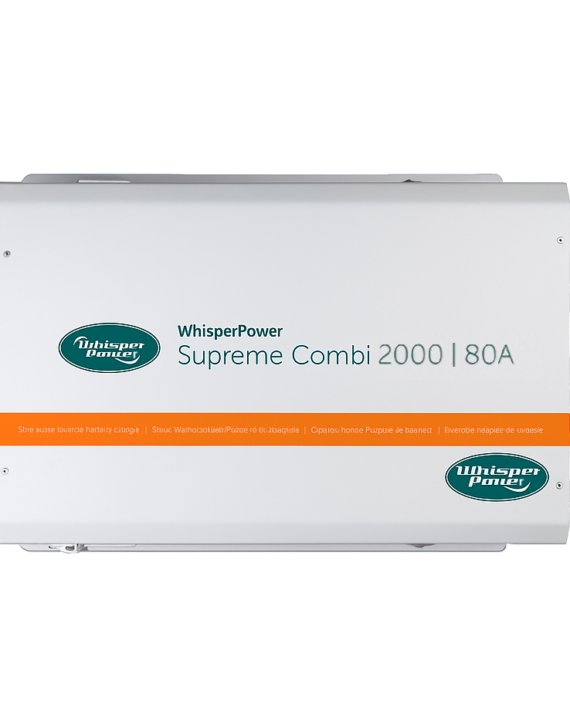

| 61122080 | WP Combi Supreme 12V / 2000 – 80A – 230V 50Hz Incl. transfer relay and remote control | € 1.329,00 |
| DIMENSIONS & WEIGHT | |
|---|---|
| Dimensions | 391 x 302 x 106 mm |
| Weight | 8 kg |
| INVERTER | |
|---|---|
| AC output power 25°C (continuous) | 2000 W |
| AC output current | 8.6 A |
| AC peak power (2 sec) | 4000 VA |
| AC output voltage/ Hz | 230 V – 50 Hz / 60 Hz |
| AC Voltage wave form | pure sine wave (<3% THD) |
| AC SWITCHING RELAY | |
|---|---|
| Switching time | <30 ms |
| Capacity switching relay | 16 A |
| DISPLAY | |
|---|---|
| Connection display | RJ12 |
| Inverter info | input voltage, output power |
| Charger info | status, battery voltage |
| CHARGER | |
|---|---|
| AC input voltage | 230 VAC – 50 Hz |
| Load Voltage Range | 13.8 – 14.8 VDC |
| Float Voltage Range | 13.0 – 14.4 VDC |
| Charge current (max) | 80 ADC |
| Charge current settings | 80 |
| Battery type | GEL, Flooded, AGM, Lithium, Programmable, Power Supply |
| Charge characteristics | bulk / absorption / float |
| Efficiency | >80% |
| SAFETY & ENVIRONMENT | |
|---|---|
| Conformity marking | CE |
| Operating temperature | 0°C to 40°C |
| Storage temperature | -20°C to 60°C |
| Relative humidity | 5 – 90% non-condensing |
| Usage height | up to 3.000 m above sea level |
| POWER SUPPLY | |
|---|---|
| Available plug sockets | EU – UK – AUS |
