Sine wave Inverters
WhisperPower’s sine wave inverters convert a 12 or 24 V battery voltage into high quality house hold electricity. Low power appliances such as vaccuum cleaners, computers, chargers for phones and tablets do not require a diesel or gasoline generator but can be operated by an inverter instead. On an inverter, any 230V / 50 Hz appliance can be used at any time, without the need of a running engine. WhisperPower inverters are often used in combination with DC BeltPower alternators, connected to the main engine.

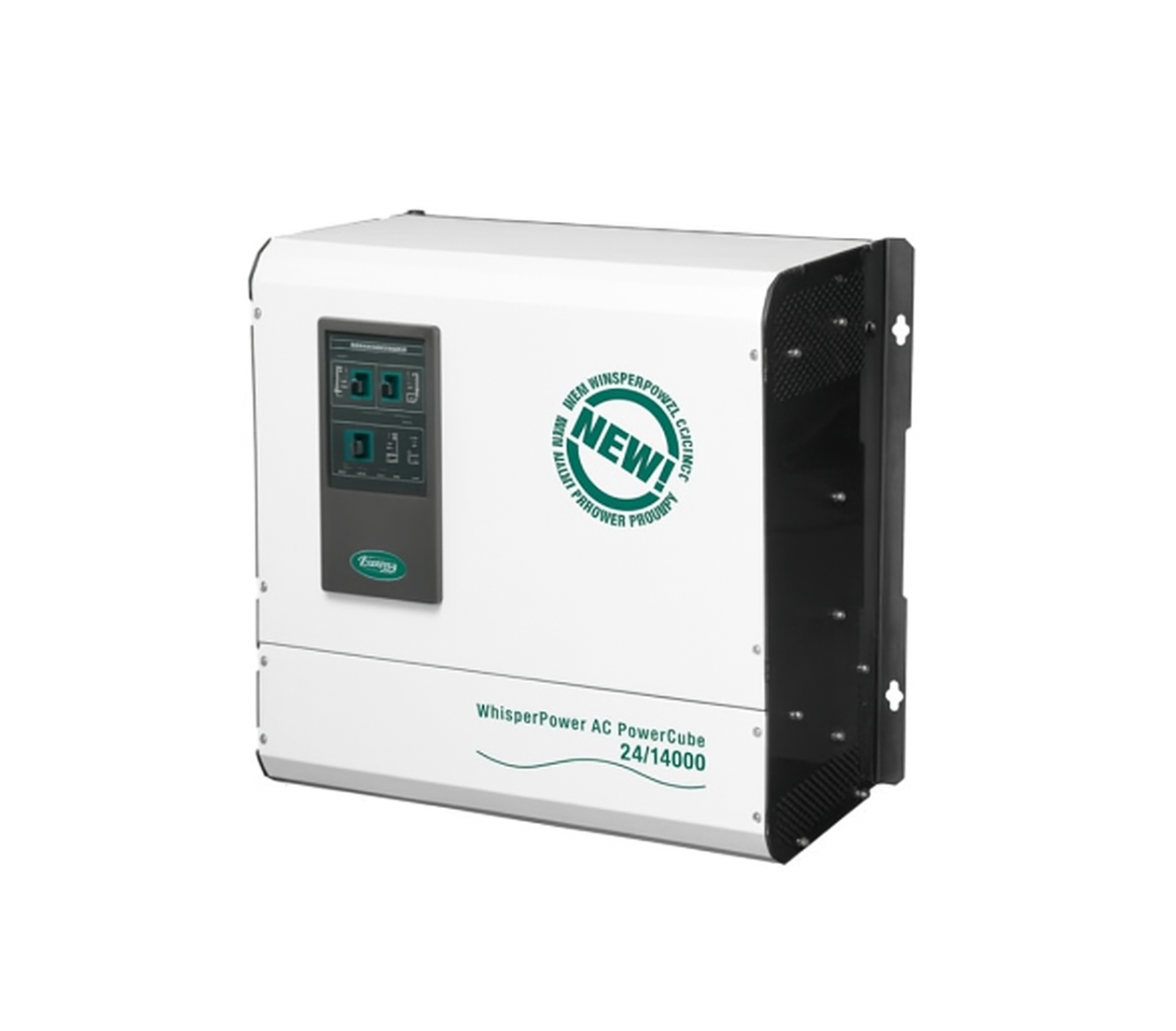

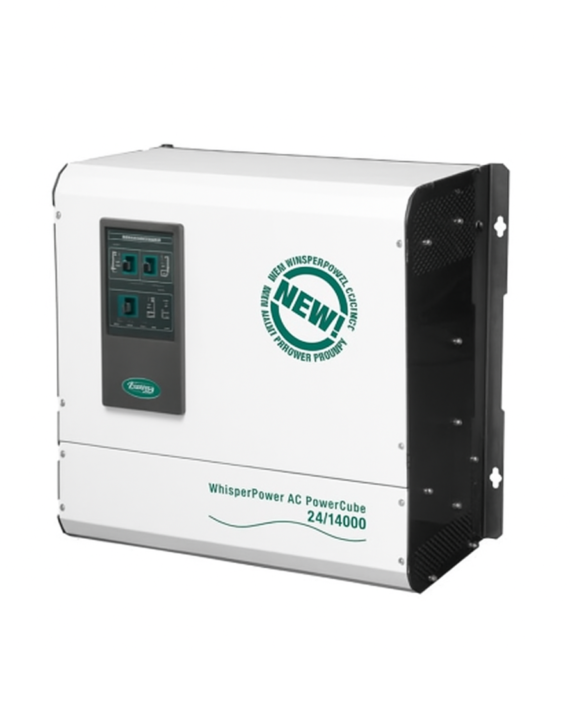

AC PowerCube
The AC PowerCube inverter is the ideal solution to combine compact and silenced diesel generator technology with professional high power inverter technology. This sine wave, switched mode inverter, with a CONTINUOUS power rating of 7 kVA, is designed for NON STOP operation, even under harsh environmental circumstances. In Whisper Power’s Hybrid power systems, the AC PowerCube is the prime power source, providing a high quality low distortion 230 V/50 Hz (120 V 60 Hz) to the various on- board AC appliances. The GENVERTER generator supports the AC load indirectly whilst also charging the battery at the same time. Unlike systems with non-stop running generators, the AC PowerCube system does not waste any energy: the system only takes the power from the battery that is actually needed to operate the AC appliances.
Features
– Powerful switch mode sine wave inverter for non-stop use
– 7kVA continuous output power, 14kVA max
– Can be extended to 2 x 7kVA = 14kVA, 28kVA peak
– Efficiency 93%, limited power loss in DC to AC conversion
– Heavy duty DC connections (2 x battery +, 2 x battery -)
– Heavy duty AC connections, all hard wiring
– WhisperConnect CAN connectivity
– Super silent, no humming – switched mode technology
