€1,769.00 ex. VAT 19%
Sinewave Inverter / Charger
Perfect combination of two key functions
When inverters are combined in one box together with a battery charger, and a shore – to – inverter transfer relay, we use the term Combi’s. The WhisperPower’s combi’s are compact, space saving, robust and extremely powerful.

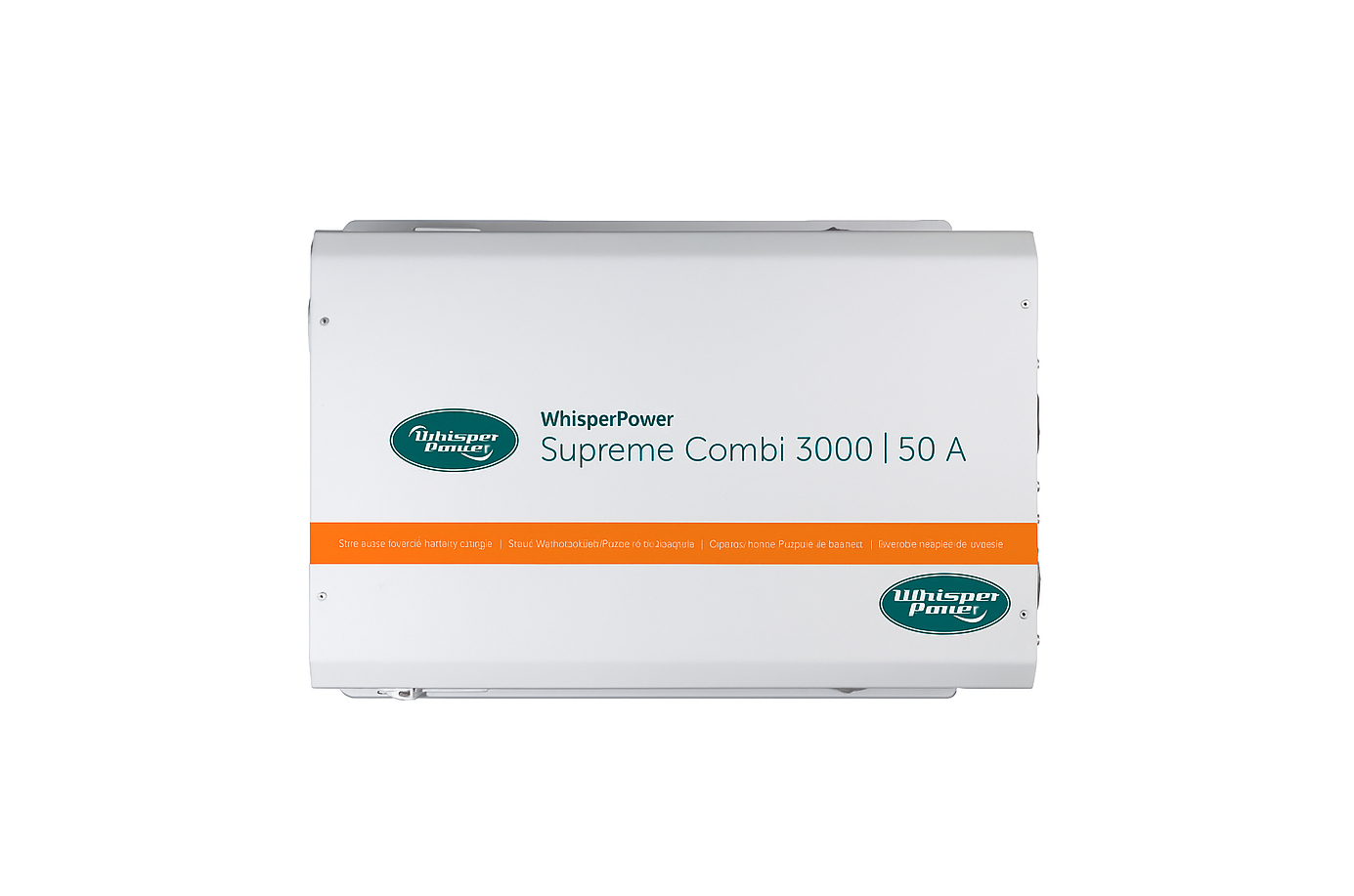

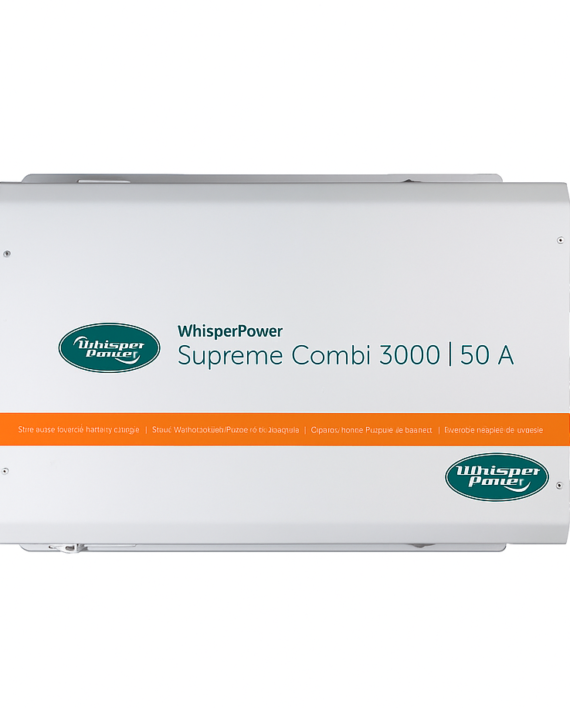

| 61124001 | WP Combi Supreme 24V / 3000 – 50A – 230V 50Hz – Incl. transfer relay and remote control | € 1.769,00 |
| General specifications | |
|---|---|
| Inverter | True Sine Wave |
| Nominal battery voltage | 24 VDC |
| Input voltage range | 20-32 VDC |
| Power at 25°C | 3000 W |
| Continuous Power at 40°C | 2600 W |
| Power 1 min at 25°C | 3300 W |
| Power 20 sec at 25°C | 4500 W |
| Maximum load | fully protected up to short circuit |
| Maximum a-symmetric load | 1500 W |
| Load detection (stand-by) | >20W |
| Power factor | up to 1 |
| Efficiency (at full load) | 92% |
| Zero load power | <25W |
| Standby power (load search) | <5W |
| Output voltage | 230VAC +/- 3% |
| Output frequency | 50Hz +/- 0.5% |
| Harmonic distortion (voltage) | THD<3% |
| Overload and short-circuit protection | auto disconnect after 3 start attempts |
| Overheat protection | Yes (The WP-Combi has to be restarted manually) |
| Battery Charger Specifications | |
| Charge Characteristic | IUU Multi step |
| Charge voltage – bulk | GEL 28.80V / AGM 28.80V / Open Lead 28.50V / Traction 29.20V |
| Charge voltage – absorption | Gel 28.50V / AGM 28.50V / Open Lead 28.50V / Traction 28.90V |
| Charge voltage – float | Gel 27.60V / AGM 27.60V / Open Lead 26.50V / Traction 26.50V |
| Equalizing voltage (for 30 minutes) | 31.0 VDC |
| Maximum charging current | Max 50A (adjustable) |
| Temperature Compensation | -60mV/°C (by external temperature sensor) |
| Slave charger | 24V / 3A |
| Power Factor Correction (PFC) | Yes |
| Input voltage range | 194-250Vac (UPS mode) 170-265Vac (GEN mode) |
| Input frequency range | 45-65Hz (UPS mode) 40-70Hz (GEN mode) |
| Input current max | 30A (protected by internal circuit breaker) |
| Charging input current (max charging current at 230Vac) | 6.6A (adjustable) |
| Transfer time | 10-15 ms (UPS mode) 2 sec (GEN mode) |
| Other Specifications | |
| Operating modes (front accessible) | On / Off / Charger only |
| Local user interface | State of load, state of charge, inverter on/off, charger only mode,AC present, current control, charger settings (capacity, battery type, low voltage detection settings, operation mode) |
| Remote panel (RJ12) | State of load, state of charge, inverter on/off, AC present |
| Weight | 23.5 kg |
| Dimension h x w x d [mm] | 458 x 200 x 190 mm |
| Protection degree | IP21 |
| Colour | RAL 9006 (White aluminum) and RAL 7016 (Anthracite grey) |
| Conformity | EN60950-1, EN55022, CE marking |
| Operating temperature range | -10 to 40°C (derating from 40 to 65°C) |
| Storage temperature | -40 to 70°C |
| Relative humidity (operational) | 0%-95%, non-condensing |
| Ventilation | Forced air |
| Battery connector | Two M6 screws |
| AC connectors | M4 screw terminal blocks |
