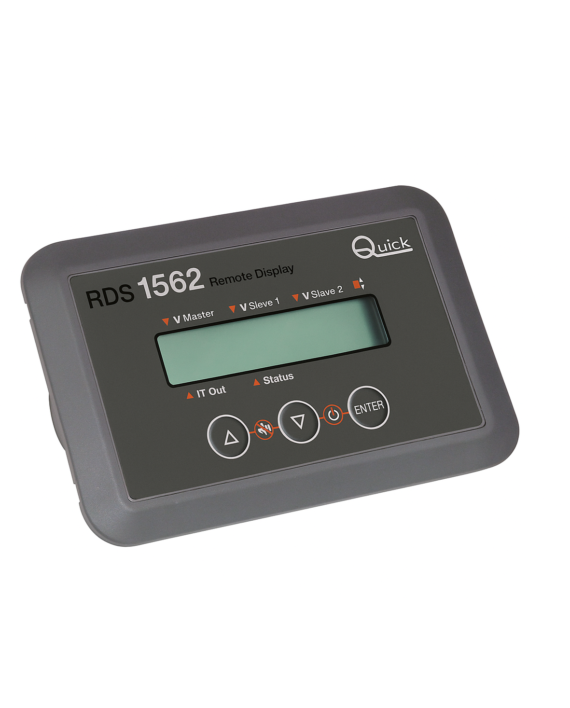

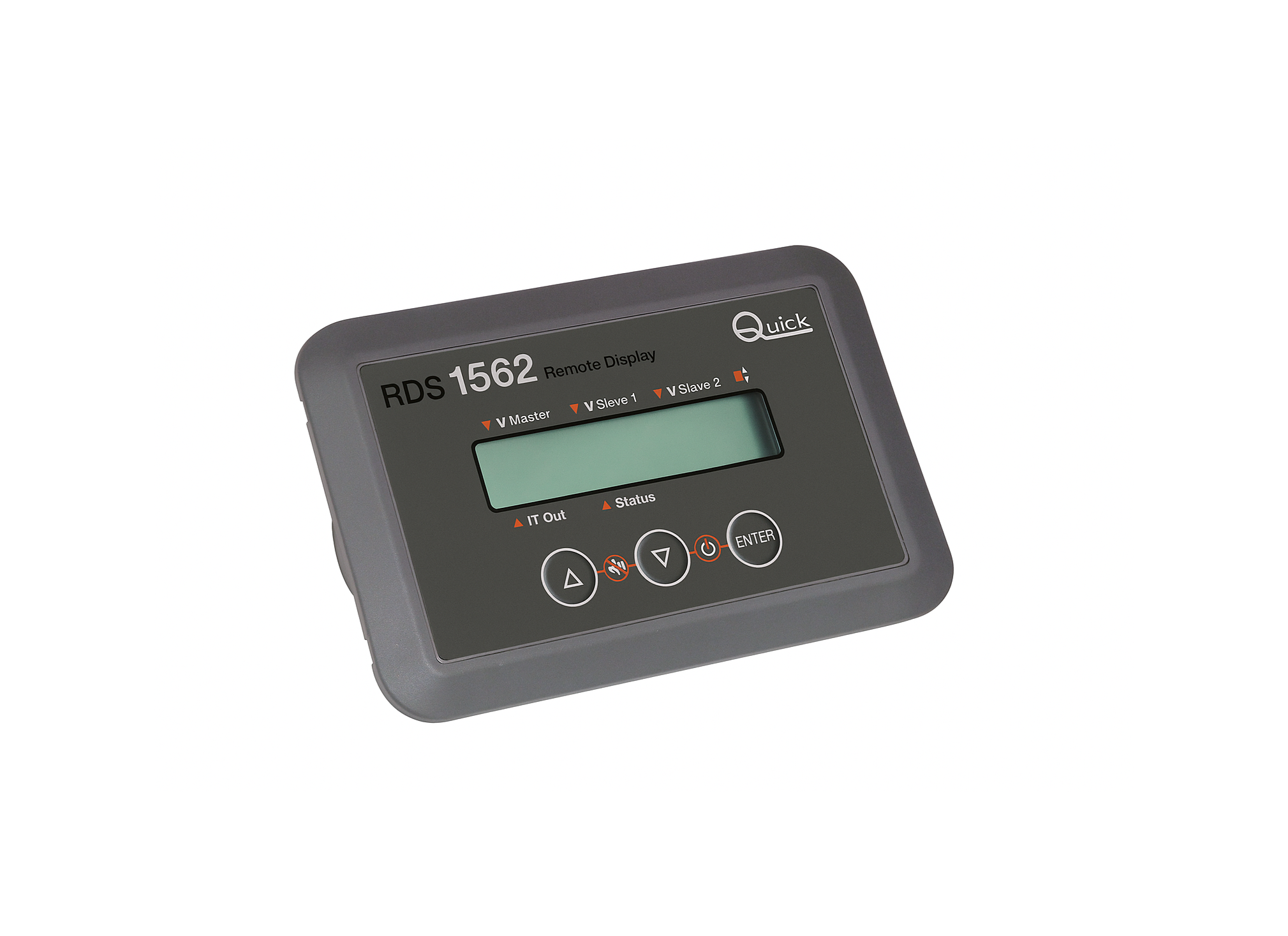

The RDS 1560 remote panel is an instrument which allows to monitor the status and to set some parameters of the SBC NRG series QUICK battery chargers by means of the CAN BUS communication interface.
Ordering Information
Remote display – LCD CAN – for NRG
Part No. |
Description |
Price ex. VAT 19% |
RDS1562 |
RDS1562 REMOTE PANEL SBC NRG+ LCD CAN |
€199,50 |
Specifications
General specifications | |
---|---|
Model | RDS 1560 |
Supply voltage (the instrument can reset itself at a voltage less than 8 Vdc) | 8 / 31 Vdc |
Max absorption (typical reading with backlighting on at high intensity) | 70 mA |
Operating temperature (at temperatures below +32°F the movement of the display crystals slows down) |
-20°C / +70°C -4°F / +158°F |
Communication interface | CAN BUS with differential transceiver |

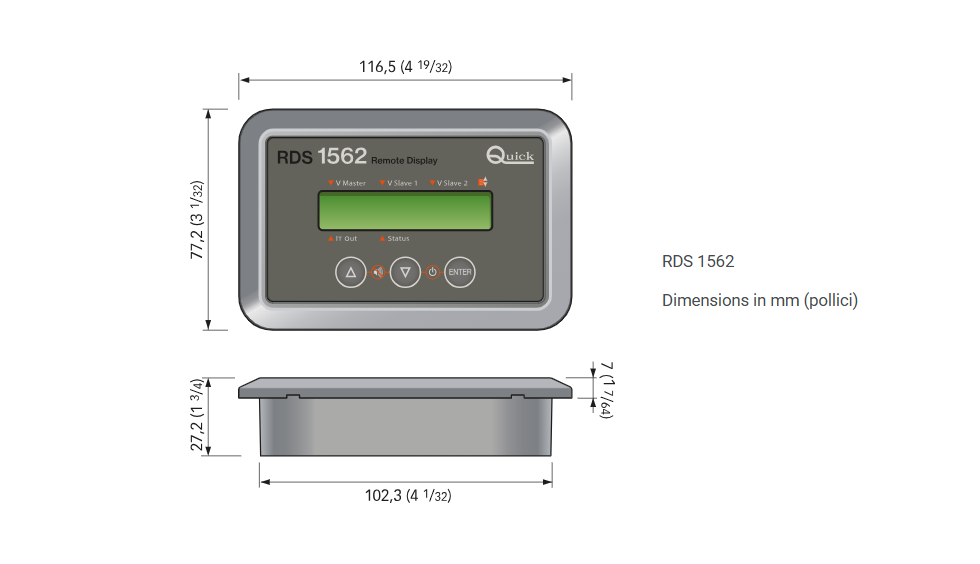

Dimensions W x W | 78 X 131 mm 3″1/16 x 5″5/32 |
Weight | 105 g / 0,23 lb |
