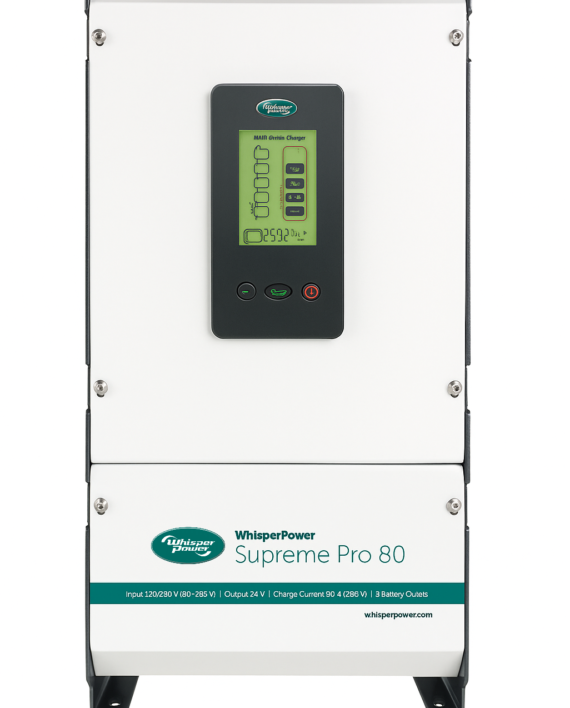

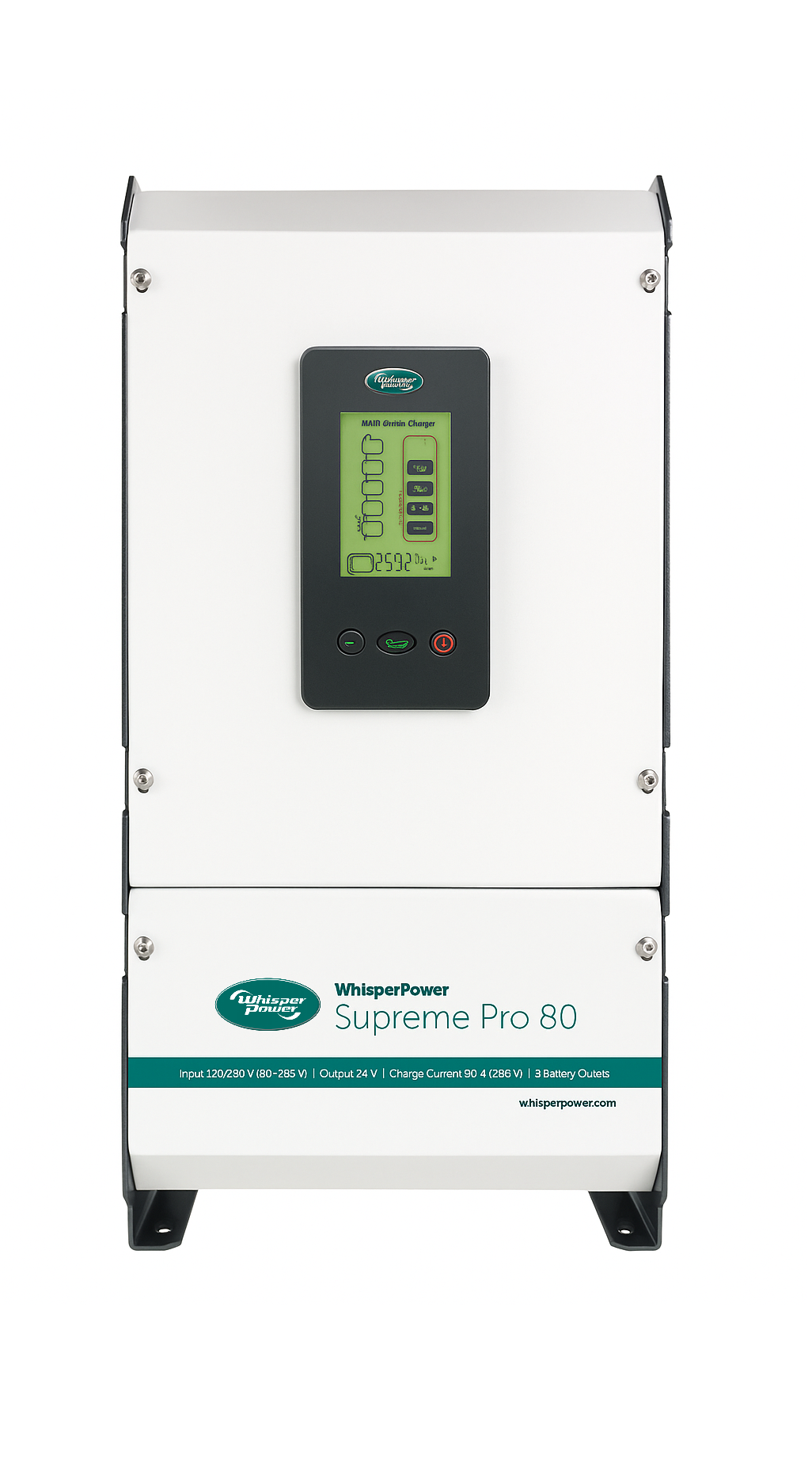

WP-BC Supreme Pro 24 V – 80 A – 3x output

€1,694.00 ex. VAT 19%

Commercial vessels, high-end recreational vessels and off-shore platforms carry an enormous
amount of electrical and electronic devices that require a safe and non-stop power provision.
WhisperPower’s Supreme professional battery chargers combine three vital functions. Smooth,
ripple free multiple step battery charging, a power supply function to buffer DC appliances in a direct
way and a complete alarm and monitoring device for the entire 24 VDC system. All models are
prepared to operate from 90-265 VAC/ 50-60 Hz input and are fitted with three separate outputs.

Perfect all-in-one solution
• Powerful battery charger, suitable for any type of battery
• Ripple free rectifier to operate DC appliances in a direct way
• 3 separate outputs to charge multiple battery banks
• Universal single phase input (90-260 VAC, 50-60 Hz, full power)
• Proven switched mode technology, cool operation, IUoUo charging
• Parallel use for high power central (DC-UPS) power systems possible

Standard features
• Compact, light weight, aluminium enclosure for bulk head or table top mounting
• Full functional LCD front display with backlight, on/off switch, read-out selector button. Battery monitor operational, at “on” or “off” position
• Charge protocol selection by dipswitch, USB and laptop, including Lithium ION
• Temperature sensor with 12 metre cable and plug

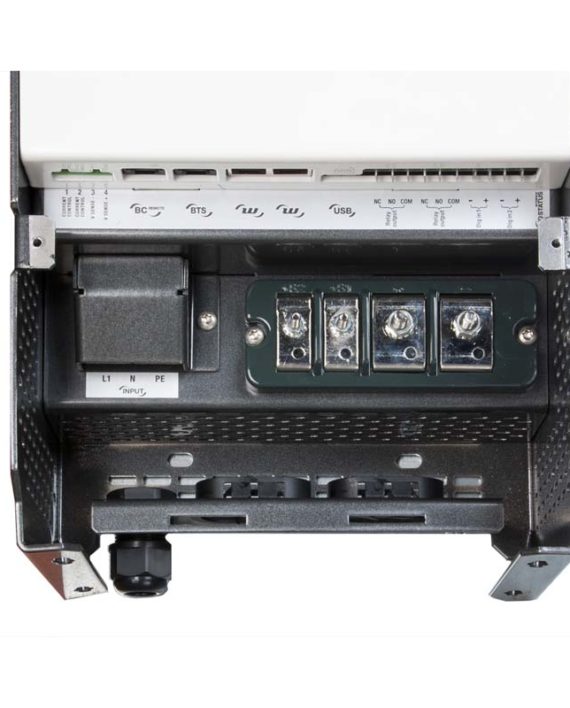

• Robust AC and DC M8 bold connections to connect 3 separate batteries
• Conformal coating protection of power module inside
• Perfectly suitable to back up GMDSS systems
• 5 Year Product Warranty

Ordering Information

WP-BC Supreme Pro 24/80 – 3

60205480 WP-BC Supreme Pro 24/80 – 3 € 1.694,00

Specifications



Charger Output
Nominal input voltage 120/230V (90-265V)
Nominal input frequency 50/60Hz (45-65Hz)
Nominal output voltage 24V
Total charge current 80A @ 28.8V
Number of battery outlets 3
Charge current second output 6A, ±1A
Charge current third output 6A, ±1A
Charge characteristic IUoUo, automatic / 3-step for GEL/AGM/wet/lead acid batteries
Charge voltage Bulk (25˚C) 28.8V
Charge voltage Absorption (25˚C) 28.5V
Charge voltage Float (25˚C) 26.5V
Max. Absobtion time 4 hour
Max. Bulk time (start @ 13.25/26.5V) 8 hour
Min. Absorption time 15 min
Enclosure type & dimensions (hxwxd in mm) 44,5 x 210 x 141
Enclosure type & dimensions (hxwxd in inch) 17,5 x 8,2 x 5,7
Weight 6.5 Kg / 14.33 lbs
Battery capacity (recommendation) 300-800Ah
Technical Specification
Power factor (cos phi) >_ 0.97
Full load consumption (230VAC) 2700VA
Temperature compensation Battery temperature sensor with 6 meter cable included
Voltage compensation Yes, automatic
DC consumption with connected battery < 5mA
Display Unit has a display for charge/voltage and charge indication
Temperature range 25 to +60˚C / 77 to 140˚F, above 45˚C derating
Cooling Fan and natural cooling to ensure optimized cooling
Sound level < 52dBA @ 1 m
Protection degree IP23
Approvals Fully CE and E-marking according to automotive directive 95/54/EG – ABYC
