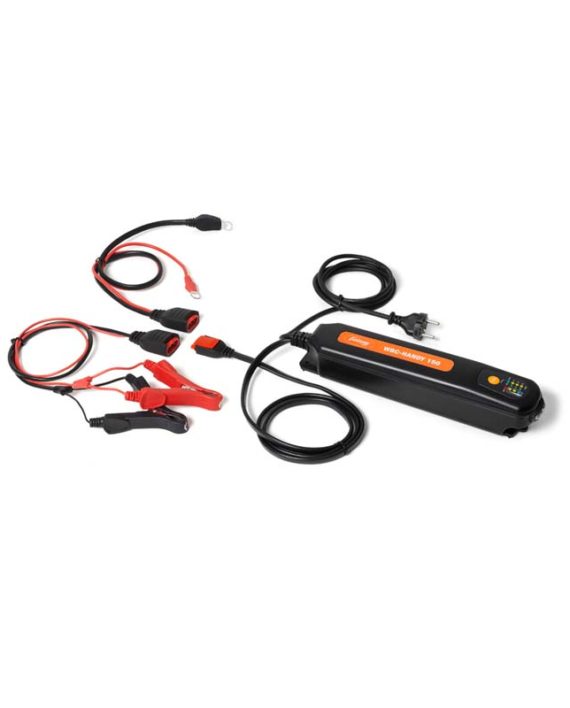

WBC-Handy 150 battery charger 12V / 15A

239.00 ex. VAT 19%

Fully automatic charger for all types of lead-acid batteries.
Suitable for cars, trucks, motor bikes, boats, caravans, campers etc.

– Advanced 5 step + charge algorithm: adapted charging for WET, AGM and GEL batteries, for a perfect charge of your battery.
– Self adjusted temperature compensation for hot and cold environment, assuring cold start in winter and preventing from overcharging during the summer.
– Easy battery size selection and power supply function enabling forced float charge.
– Equipped with Charging Status Interface, indicating charge phase at a glance.
– Reverse polarity protection with built-in flashlight (only 70&150), helpful when connecting the WBC charger in the dark.
– Standard supplied with permanent installation kit, for fixed installations.

Ordering Information

61112015 WBC-Handy 150 battery charger 12V / 15A  € 239,00

Specifications



General specifications
Input voltage 220-240 VAC ±10%
Input current 1,5 A
Back current ≤1mA
Charging Voltage 13,7 – 15,5 VDC at 25ºC
Charging Voltage Supply 13,7 VDC
Charging Current Max. 15A
Ripple voltage Max. 70 mV
Ambient temperature -40..+50ºC
Cooling Convection
Charge Characteristics 5 step IUIU + float
Forced Float 13.7 VDC (Maintenance charge)
Lead-acid battery types AGM/GEL, WET batteries
Battery capacity 20 .. 300 Ah (Max. 360 Ah)
Cabling Battery cable 1500 mm
Power cable 1400 mm
International Protection grade IP54
Weight 0.8 Kg
