€71.00–€437.00 ex. VAT 19%
Automatic 3-stage battery chargers for GEL, AGM and Lithium flooded lead acid
– Multiple outputs to charge 3 batteries
– Fully automatic 3-stage charge method
– Temperature sensor plus cable included
– Adjustable for GEL, AGM or Lithium flooded lead acid
– Auto ranging input from 90-260VAC, 50 / 60Hz
– Connectable to any AC generator
– Fully protected against short circuit, overtemperature, etc.

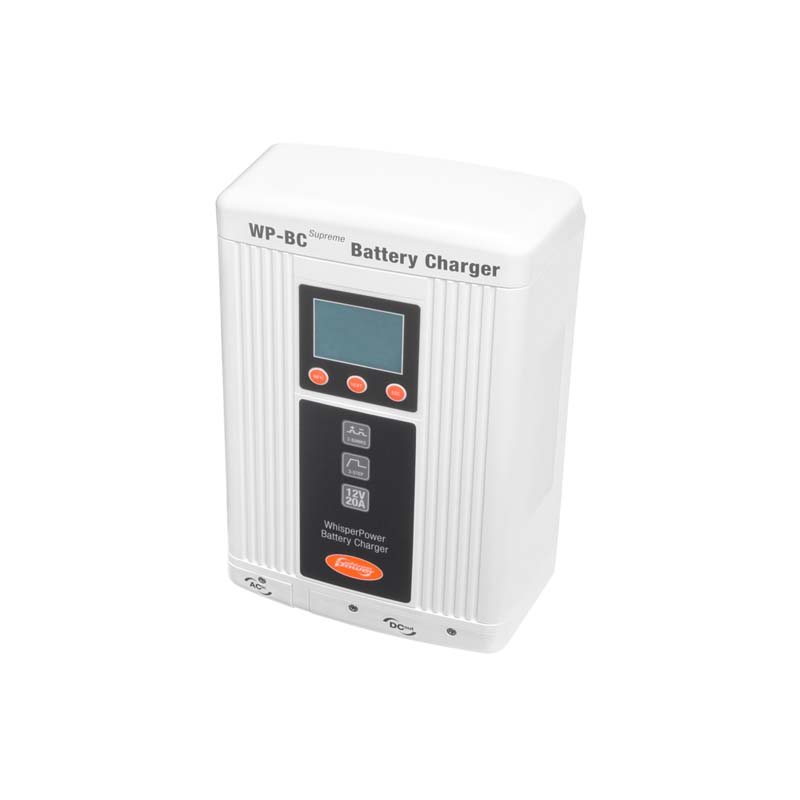

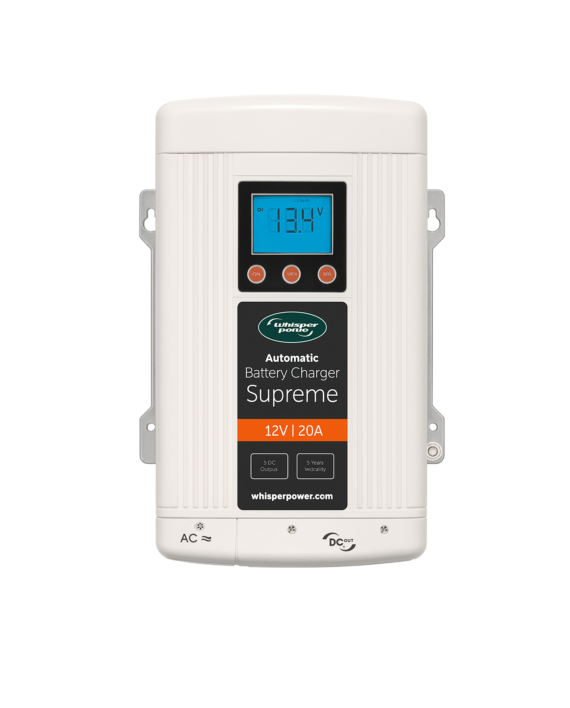

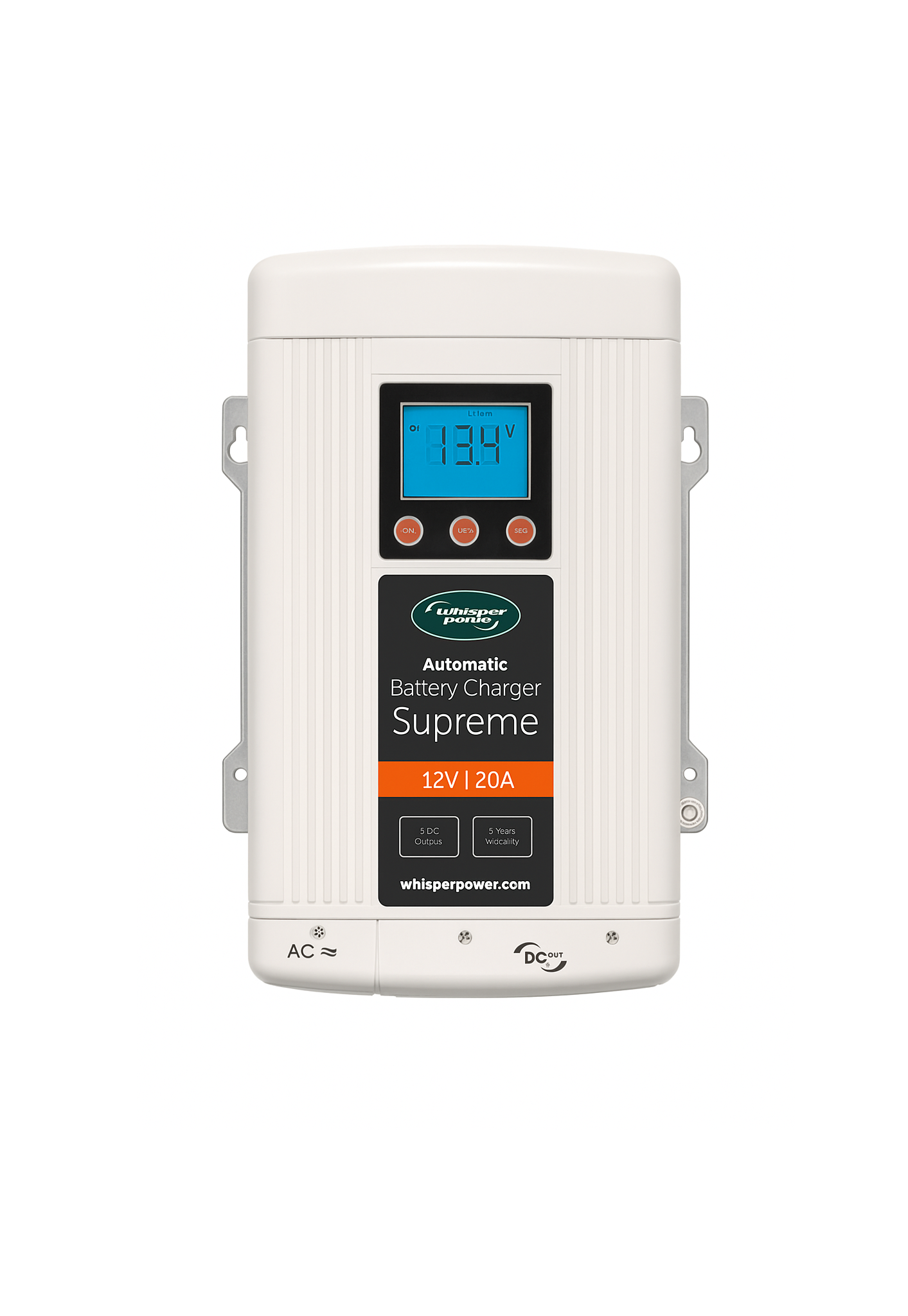

| 61112302 | WBC Battery charger 12V / 20A – 3x output | € 437,00 |
| 61112301 | WP-BCC Battery Charger Remote Control – Incl. 6mtr Remote cable | € 71,00 |
| Charger Output | |
|---|---|
| Output Current (Maximum) | 20 A |
| Output Voltage Bulk | 14.2 – 15.5 V |
| Output Voltage Float | 13.4 – 13.8 V |
| Output Voltage Equalize | 16.0 V |
| Charging Control | 3-step (Bulk/Absorption/Float) |
| DC Output Bank | 3 |
| Selectable Battery Type | GEL, AGM, WET, Lithium |
| Back Current | < 2 mA |
| Charger Input | |
| AC Input Voltage (Nominal) | 100, 120, 220, 230, 240 VAC |
| AC Input Operating Range | 90 – 265 VAC |
| AC Input Frequency Range | 47 – 63 Hz |
| Power Consumption (Full Load) | 350 W |
| Power Factor Correction | Yes |
| Charger Efficiency | > 82% |
| Protection and Features | |
| Reverse Battery | Yes, unit shutdown |
| Over Charge | Yes, unit shutdown |
| Over Heating | Yes, unit de-rated and shutdown |
| Output Short Circuit | Yes, unit shutdown |
| DC Fuse | 2*15A, 32V |
| Cooling | Force air ventilation |
| Temperature Setting | Hot, Normal, Cold (no sensor connected) |

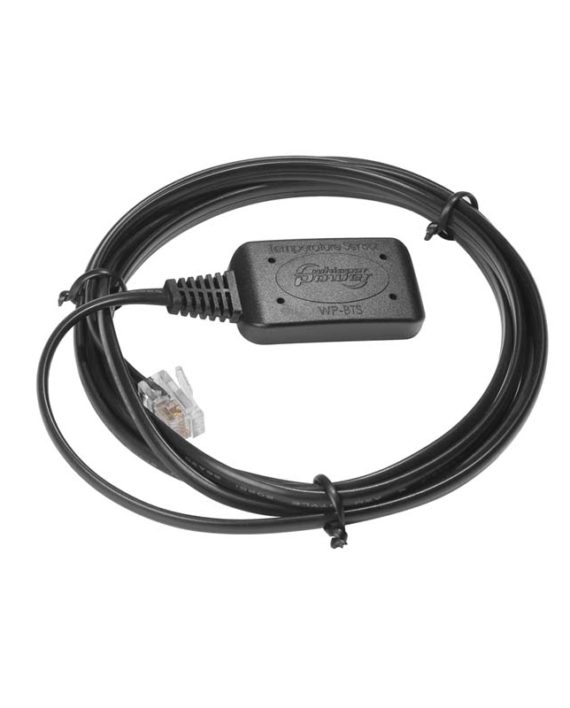

| Battery Temperature Sensor | Yes included with 1.5mtr cable |
| Battery Temperature Sensor Port | RJ12 (battery temp. sensor use) |
| Digital Display Port | RJ12 (optional display panel use) |
| Display | |
| LCD Display (with back lighting) | Charging status, Battery Voltage |
| Warning and Fault Code | A01-02, E01-09 |
| AC Input and DC Output Connection | |
| AC Input Connection | Hardwire or AC Cord |
| DC Output Connection | Heavy Duty Studs (3 banks) |
| DC Output Ground | Single Heavy Duty Common Ground Stud |
| Environmental and Operating Temperature | |
| Storage Range | -40° to 70°C |
| Operating Range | -20° to 60°C |
| Humidity | 5-95%, RH non-condensing |
| Ingress Protection | IP32 |
| Dimensions and Weight | |
| Dimensions | 295 x 206 x 86 mm |
| Weight | 2.4 Kg |
