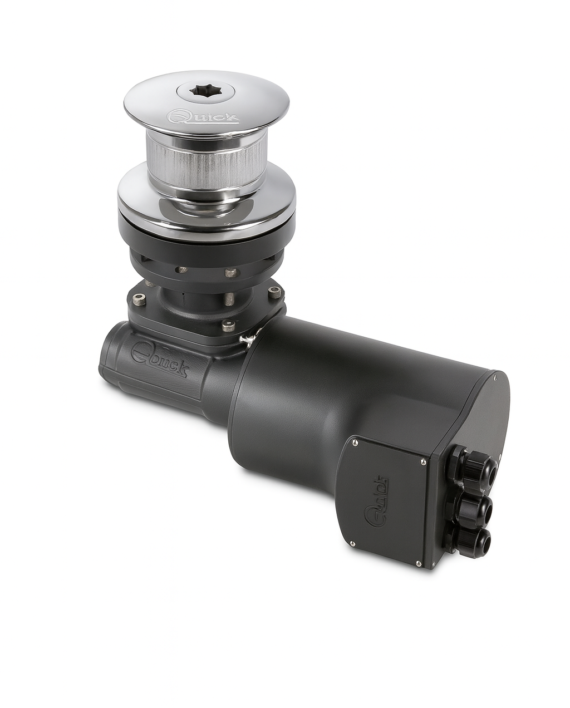

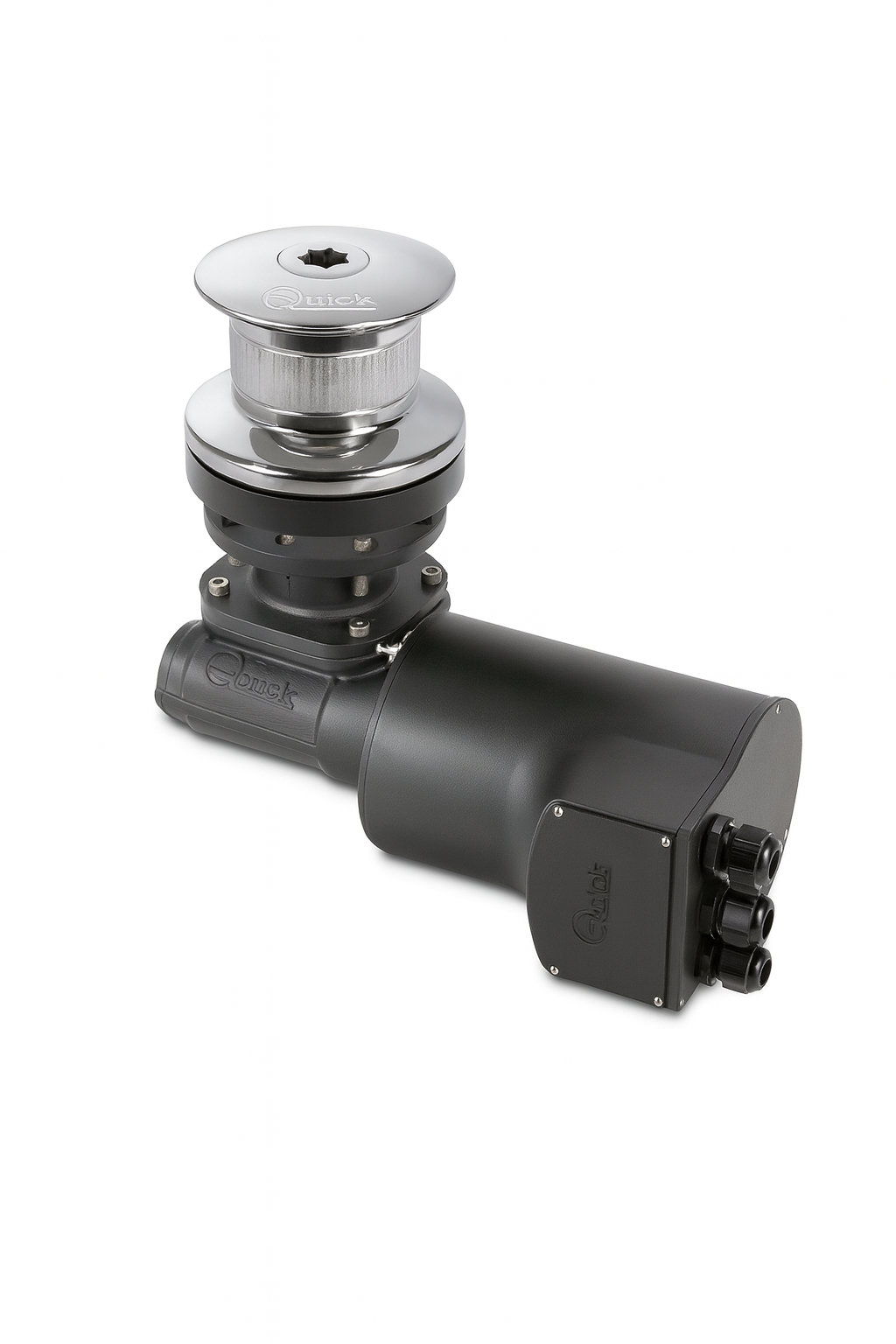

Tumbler – TB4
• Warping Winches
• AISI Stainless steel 316 base and drum
• IP67 Motor watertight
• Anodized aluminium gearbox
Drum
Ø 142 mm / 5″ 19/32
TUMBLER – TB4 – 12/24V 1500W for boats from 16 to 22 meters (52 – 72 ft)
€1,925.00–€1,953.00 ex. VAT 19%
Ordering Information
TUMBLER – TB4 – 12/24V 1500W for boats from 16 to 22 meters (52 – 72 ft)
| Part No. | Description | Price ex. VAT 19% |
|---|---|---|
| TB4 1512 | 1500 W – 12 V – Drum Ø 142 mm | € 1925.00 |
| TB4 1524 | 1500 W – 24 V – Drum Ø 142 mm | € 1953.00 |
Specifications
| General specifications | ||
|---|---|---|
| Motor Power | 1500 W | 1500 W |
| Motor Supply Voltage | 12 V | 24 V |
| Maximum Pull | 1200Kg/2425lbs | 1200Kg/2425lbs |
| Maximum Working Load | 450 Kg /992 lbs | 500 Kg/1102 lbs |
| Working Load | 150 Kg/331 lbs | 170 Kg/375 lbs |
| Current absorption at working load (after an initial period of use) | 155 A | 85 A |
| Maximum Chain Speed (measurements taken considering drum diameter) | 25 m/min 82 ft/min |
26 m/min 85 ft/min |
| Maximum Chain Speed at working load (measurements taken considering drum diameter) | 16,5 m/min 54 ft/min |
17 m/min 55.5 ft/min |
| Drum Ø | 142 mm 5″ 19/32 |
142 mm 5″ 19/32 |
| Weight | 21,2Kg/46.7lbs | 21,2Kg/46.7lbs |
