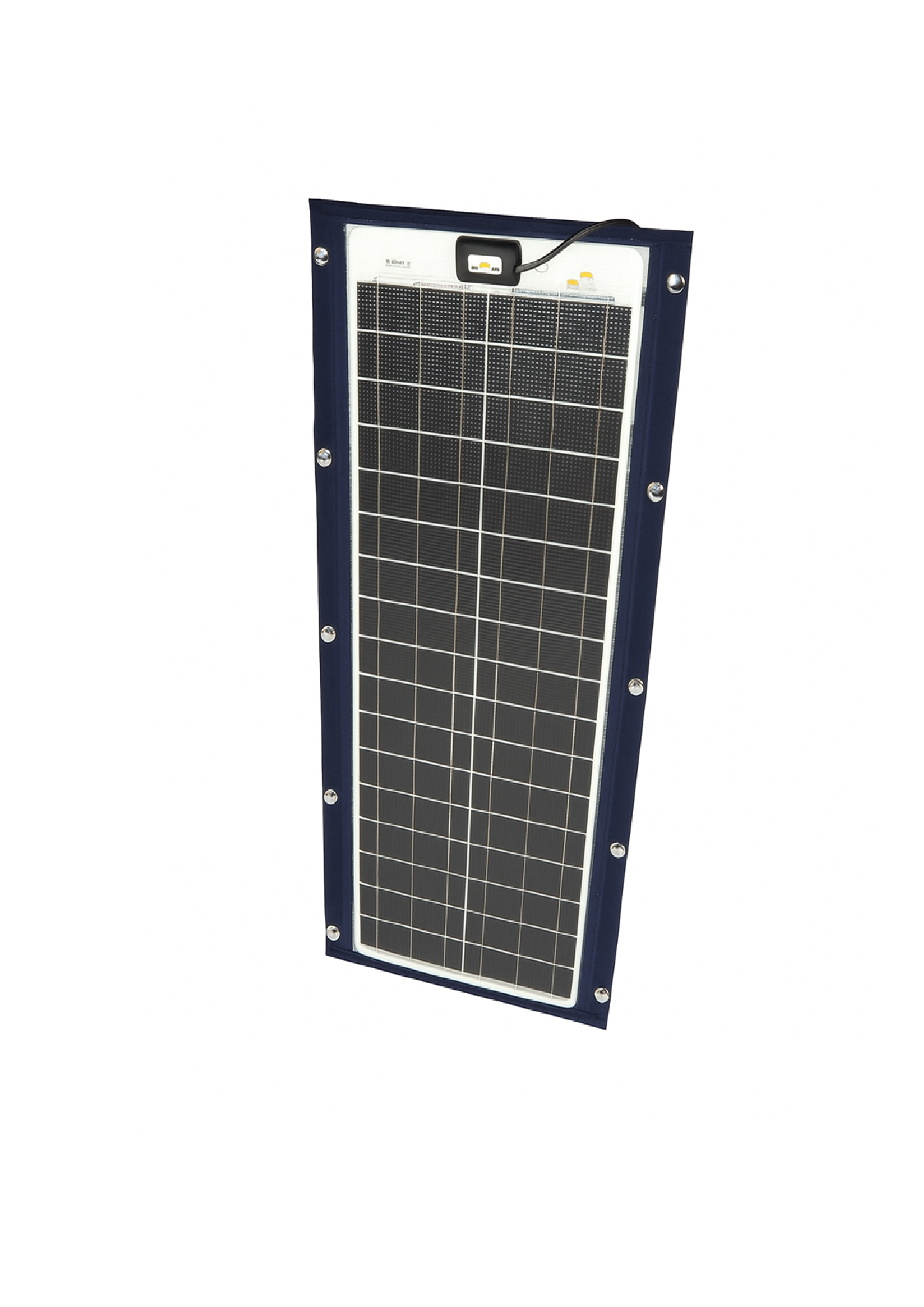

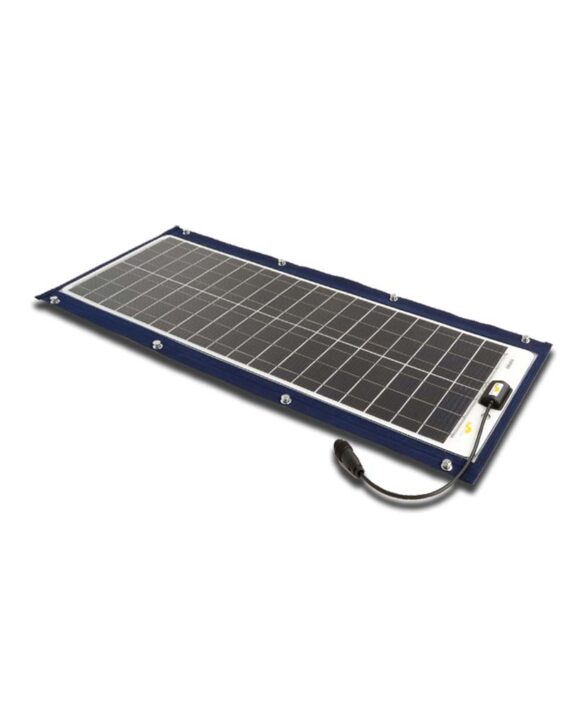

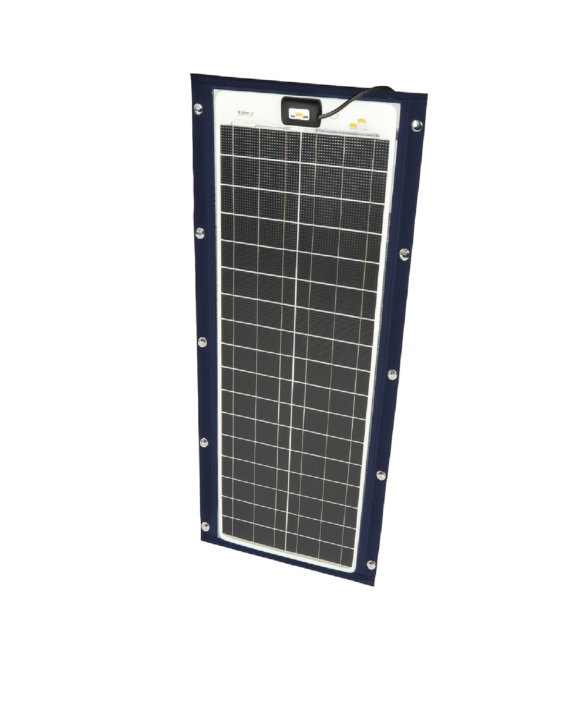

Solar Panel TX-12052 – 12V 50 Wp 1106 x 431 mm 2.6 kg 3.00A
€542.01 ex. VAT 19%
Ordering Information
| In Stock | Part No. | Description | Price ex. VAT 19% |
|---|---|---|---|
| TBA | TX-12052 | 12V 50 Wp 1106 x 431 mm 2.6 kg 3.00A | €542,01 |
Specifications
| Designation | Value |
|---|---|
| Pmax | 50 Wp |
| Imax | 2.7 A |
| Umax | 18.52 V |
| Uoc | 22.8 V |
| Isc | 3 A |
| No of cells | 36 Stck. |
| Cell size | 52.0 x 156.0 mm |
| Laminate | ETFE/EVA/ETFE |
| Length | 1106.0 mm |
| Width | 431.0 mm |
| Product weight | 2.6 kg |
| System Voltage | 12 V |
| Protection Class | IP68 |
| Base plate | Alu-Sandwich weiss/white |
| Cable outlet | Front side |
| Cable length | 1 m |
