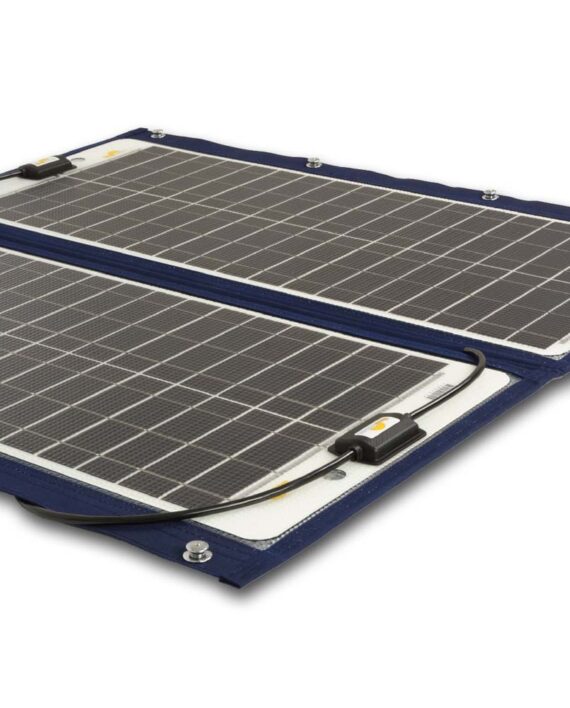

Solar Panel TX-22039 – 12V 90Wp, navy blue, Tenax, 873×826(413) mm
€970.59 ex. VAT 19%
Ordering Information
| In Stock | Part No. | Description | Price ex. VAT 19% |
|---|---|---|---|
| TBA | TX-22039 | 12V 90Wp, navy blue, Tenax, 873×826(413) mm | € 970,59 |
Specifications
| Designation | Value |
|---|---|
| Pmax | 76 Wp |
| Imax | 4 A |
| Umax | 19 V |
| Uoc | 22.8 V |
| Isc | 4.40 A |
| No of cells | 36 Stck. |
| Cell size | 39.0 x 156.0 mm |
| Laminate | ETFE/EVA/ETFE |
| Length | 873.0 mm |
| Width | 826.0 mm |
| Product weight | 4.2 kg |
| System Voltage | 12 V |
| Protection Class | IP68 |
| Base plate | Alu-Sandwich weiss/white |
| Cable outlet | Front side |
| Cable length | 1 m |
