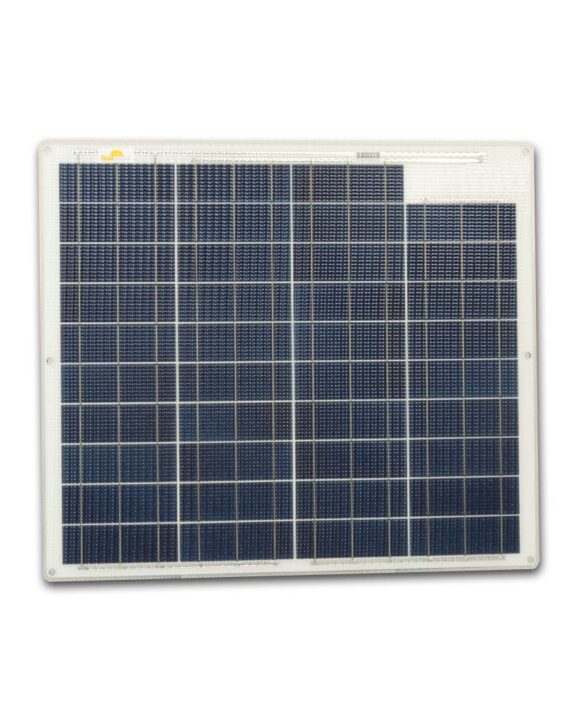

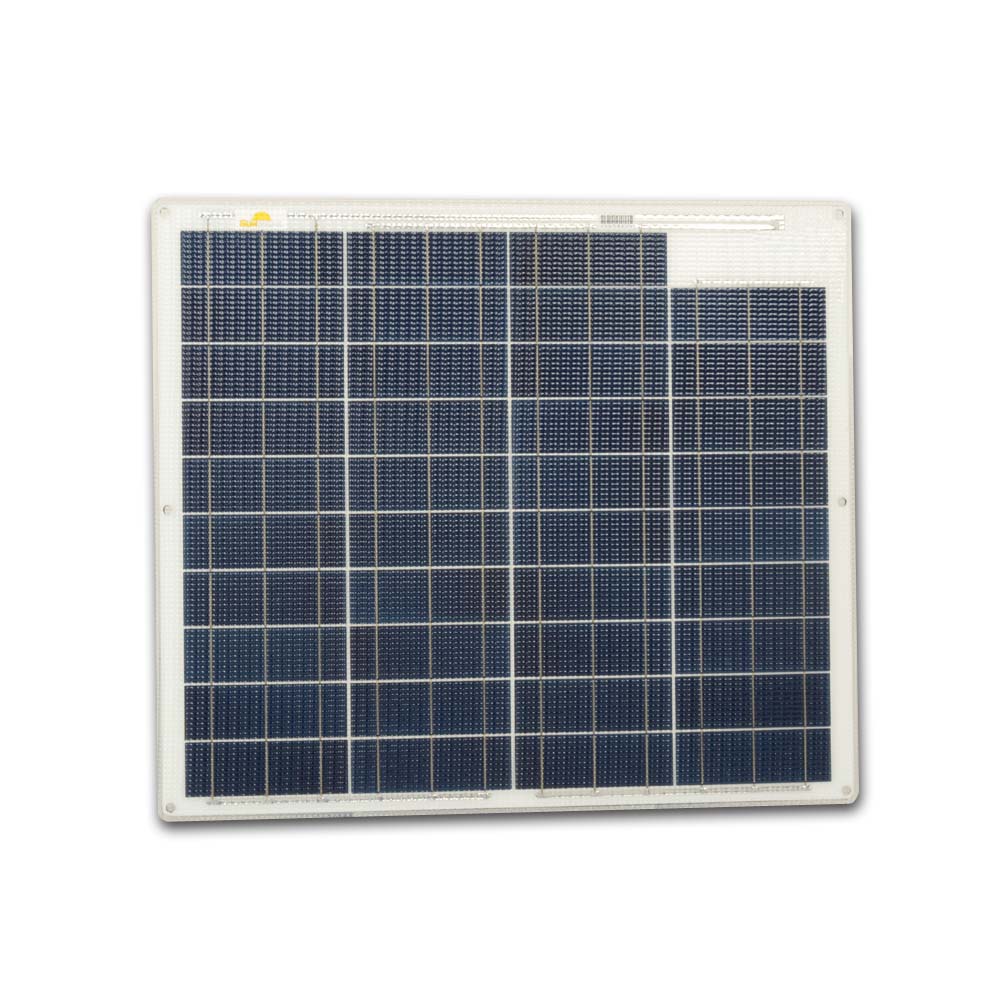

Solar Panel SW-40183 – 12V 68 Wp 599 x 689 x 6mm
€491.60 ex. VAT 19%
Ordering Information
| In Stock | Part No. | Description | Price ex. VAT 19% |
|---|---|---|---|
| TBA | SW-40183 | 12V 68 Wp 599 x 689 x 6mm | € 491,60 |
Specifications
| Designation | Value |
|---|---|
| Pmax | 55.0 Wp |
| Imax | 2.70 A |
| Umax | 20.37 V |
| Uoc | 24.6 V |
| Isc | 2.90 A |
| No of cells | 39 Stck. |
| Cell size | 52.0 x 156.0 |
| Laminate | ETFE/EVA/ETFE |
| Length | 599.0 mm |
| Width | 689.0 mm |
| Product weight | 3 kg |
| System Voltage | 12 V |
| Protection Class | IP68 |
| Base plate | ALU-Sandwich white |
| Cable outlet | Front side |
| Cable length | 3 m |
