Ordering Information
In Stock | Part No. | Description | Price ex. VAT 19% |
---|---|---|---|
TBA | SW-40166 | 12V 75 Wp 1119 x 481 mm 3.6 kg 3.84A | €649,00 |
Specifications
Designation | Value |
---|---|
Pmax | 75.0 Wp |
Imax | 3.62 A |
Umax | 20.72 V |
Uoc | 24.6 V |
Isc | 3.84 A |
No of cells | 39 Stck. |
Cell size | 104.0 x 104.0 |
Laminate | ETFE/EVA/ETFE |
Length | 1119.0 mm |
Width | 481.0 mm |
Product weight | 3.6 kg |
System Voltage | 12 V |
Protection Class | IP68 |
Base plate | ALU-Sandwich white |

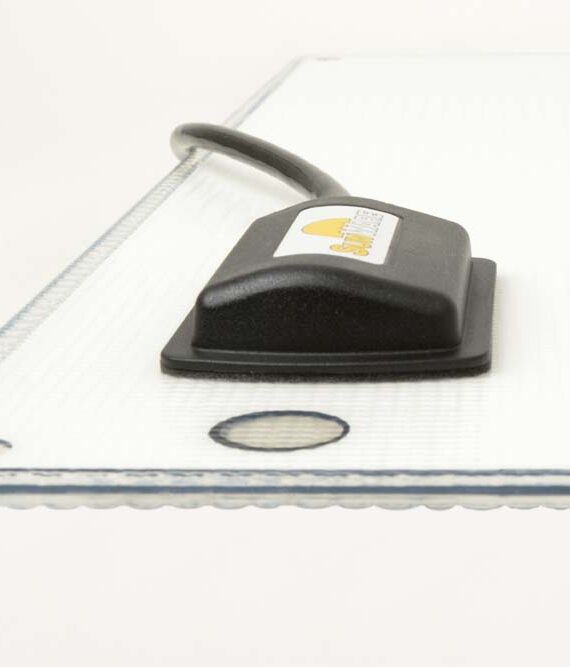

Cable outlet | Front side |
Cable length | 3 m |
