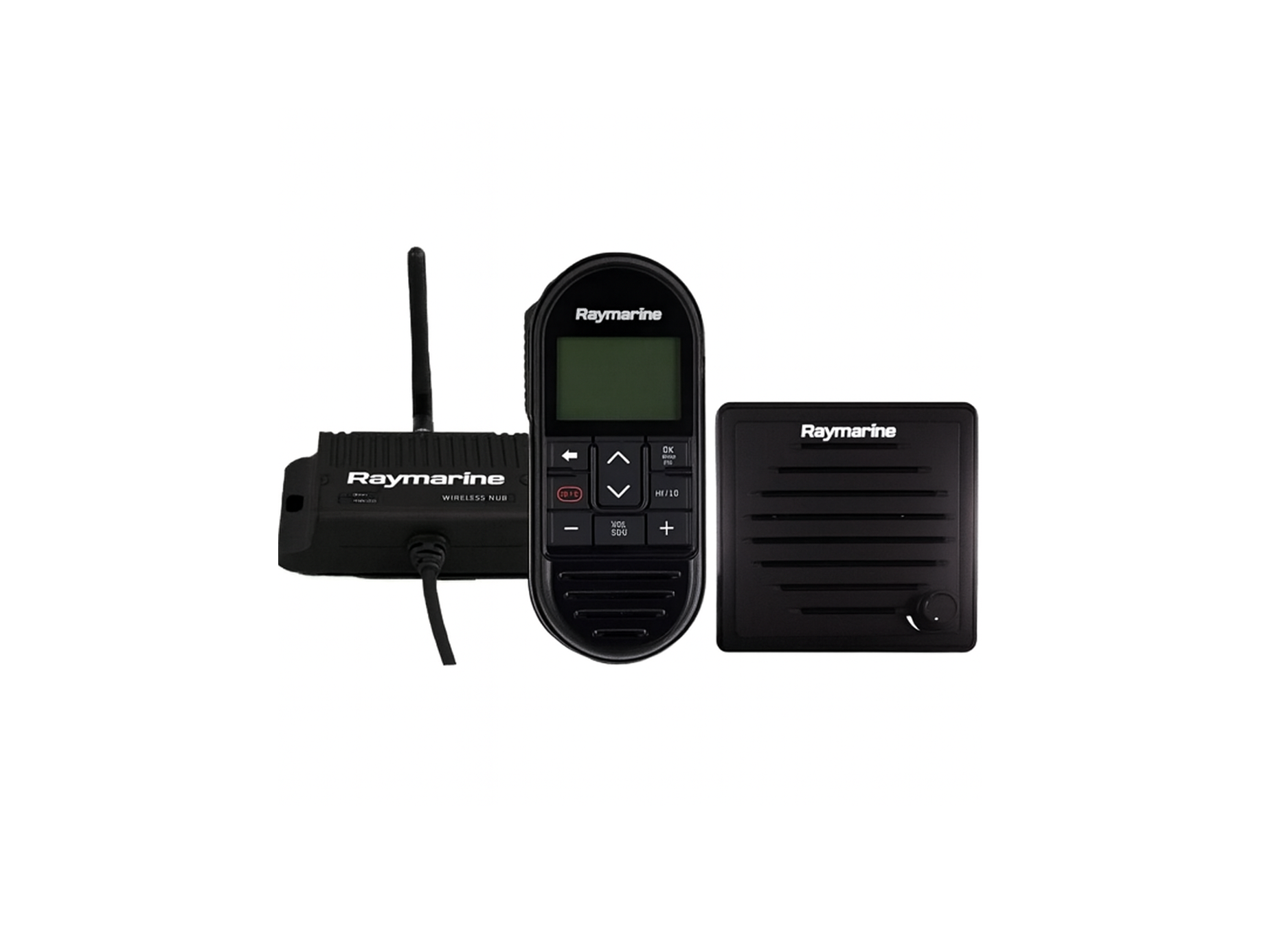

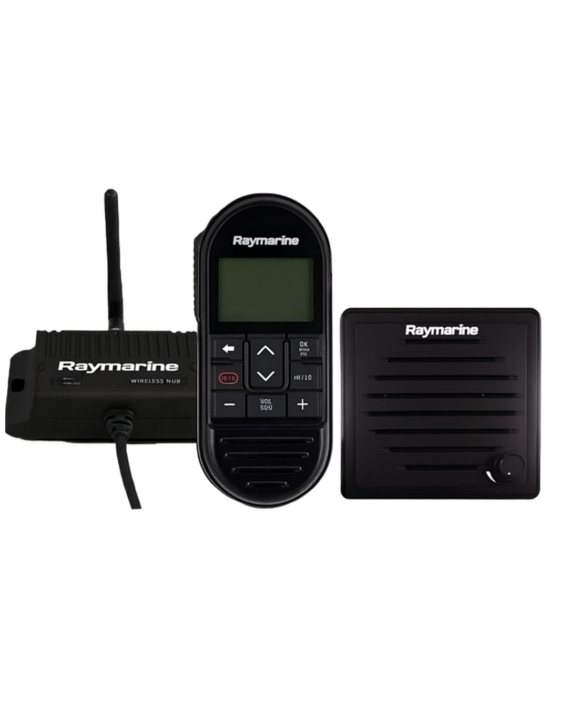

Ray 63, 73 & 90 Wireless 1st Station including Wireless Handset, Wireless Hub and Active Speaker

€655.00 ex. VAT 19%

Raymarine’s fixed mount Ray90 modular VHF radio brings multi-station communications to a whole new level of power, performance, and flexibility. The Ray90 is a black-box design with a transceiver that hides out of sight while the ergonomic RayMic handset and remote speaker provide full control of the radio with crystal clear audio.

RayMic Wireless Handset

A80540 RayMic Wireless Hub

Cut the cord and enjoy wireless freedom onboard your vessel! The Wireless Expansion Hub accessory for the Ray90 and Ray91 VHF radios connects directly to the system’s transceiver module and supports the addition of up to 3 wireless handset stations. The wireless hub can also be added to a Ray63 or Ray73 VHF simply by adding a wireless handset adapter cable (R70739). Using the latest encrypted digital networking technologies, the Wireless Expansion Hub carries both data and audio to and from your wireless handset stations. You can mount the ultra-compact unit just about anywhere onboard, out-of-sight, and enjoy crystal clear communications everywhere.

  • Wireless Hub with 5-meter interconnect cable
  • Mounting hardware
  • Installation guide and documentation kit

Ordering Information

T70469 Ray 63/73 Wireless 1st Station including Wireless Handset, Wireless Hub, Active Speaker & adaptor cable € 655,00

Specifications



General specifications
Description Ray 63, 73 & 90 Wireless 1st Station including Wireless Handset, Wireless Hub and Active Speaker
Size (HxWxD) Main Unit Height = 63mm (2.48 in)
Width – 235mm (9.25 in) max
Depth 160mm (6.30 in) max excl rear cables
Weight Main Unit 2.6 Kg (5.7 lbs)
Environmental
Water Integrity Complies with IPX6 & IPX7 | Complies with EN60945
Operating Temperature Range -25°C to 55°C
Storage Temperature Range -25°C to 70°C
Humidity up to 95%
Electrical
Communications Port NMEA 0183 (version 4.01); NMEA2000 (version 3.101)
Nominal Supply Voltage 12V DC. Reverse polarity and over voltage protected
Operating Voltage Range 9V DC to 16V DC
Current Consumption Less than 6A at High Power (13.6V) |Standby: 600 mA, Receive: 2 Amps
Transmitter
Channels All available US, International and Canadian VHF marine bands
Frequency Range 156.000 – 157.425 MHz , 155.500 to 161.425 MHz Private channels
Frequency Stability + / – 1.5 ppm
Channel Spacing 12.5 kHz
Power Output High Power = 25 Watt | Low Power = 1 Watt
Spurious emission Better than -36 dBm at 25W (Less than 0.25 µW)
Maximum Deviation +/- 5kHz
Antenna port impedance 50 ohms typical
Receiver
Receiver Type Double Conversion Super Heterodyne
Channels All available US, International and Canadian VHF marine bands
Frequency Range 156.000 – 157.425 MHz | 155.500 to 161.425 MHz Private channels
Sensitivity Better than 1 microvolt EMF @ 20dB SINAD
Squelch Sensitivity Less than -2 dBµ EMF
Hum & Noise Better than -40 dB
Audio Distortion Less than 10%
Receiver Sensitivity Distance -119 dBm (0.25uV)@12 dB SINAD ← Typical
Local -110 dBm (0.7uV)@12 dB SINAD ← Typical
Adjacent Channel Selectivity More than 70 dB
Spurious Response Rejection More than 70 dB
Inter Modulation Rejection More than 70 dB
Speakers
External Passive Speaker Power 5W (4Ω) / 2.5W (8Ω)
Hailer Speaker Power Output 24W (4Ω) / 12W (8Ω)
GPS
Number of Channels 72
Cold start 29s
Receiver IC Sensitivity -167 dBm (Tracking) / -148 dBM (Acquisition)
GNSS Compatibility GPS | GLONASS | *BeiDou
SBAS Compatibility WAAS | EGNOS | MSAS
Special Features Active jamming and interference reduction
Operating Frequencies GPS L1 C/A | GLONASS L10F | Beidou B1
Signal Acquisition Automatic
Almanac Update Automatic
Geodetic Datum WGS-84 (alternatives available through Raymarine MFD)
Refresh Rate 20 Hz (20 times per second concurrent GNSS)
Positional Accuracy Without SBAS: <2.5 metres 95% of the time
With SBAS: <2 metres 95% of the time
