- Full transmit and receive AIS for enhanced situational awareness and safety
- Latest SO-TDMA networking for longer range and faster performance
- Built-in antenna splitter simplifies installation with existing VHF radio antenna
- NMEA2000, NMEA0183, PC and SeaTalkng Compatible
- Software or hardware switchable Silent Mode for enhanced security when needed

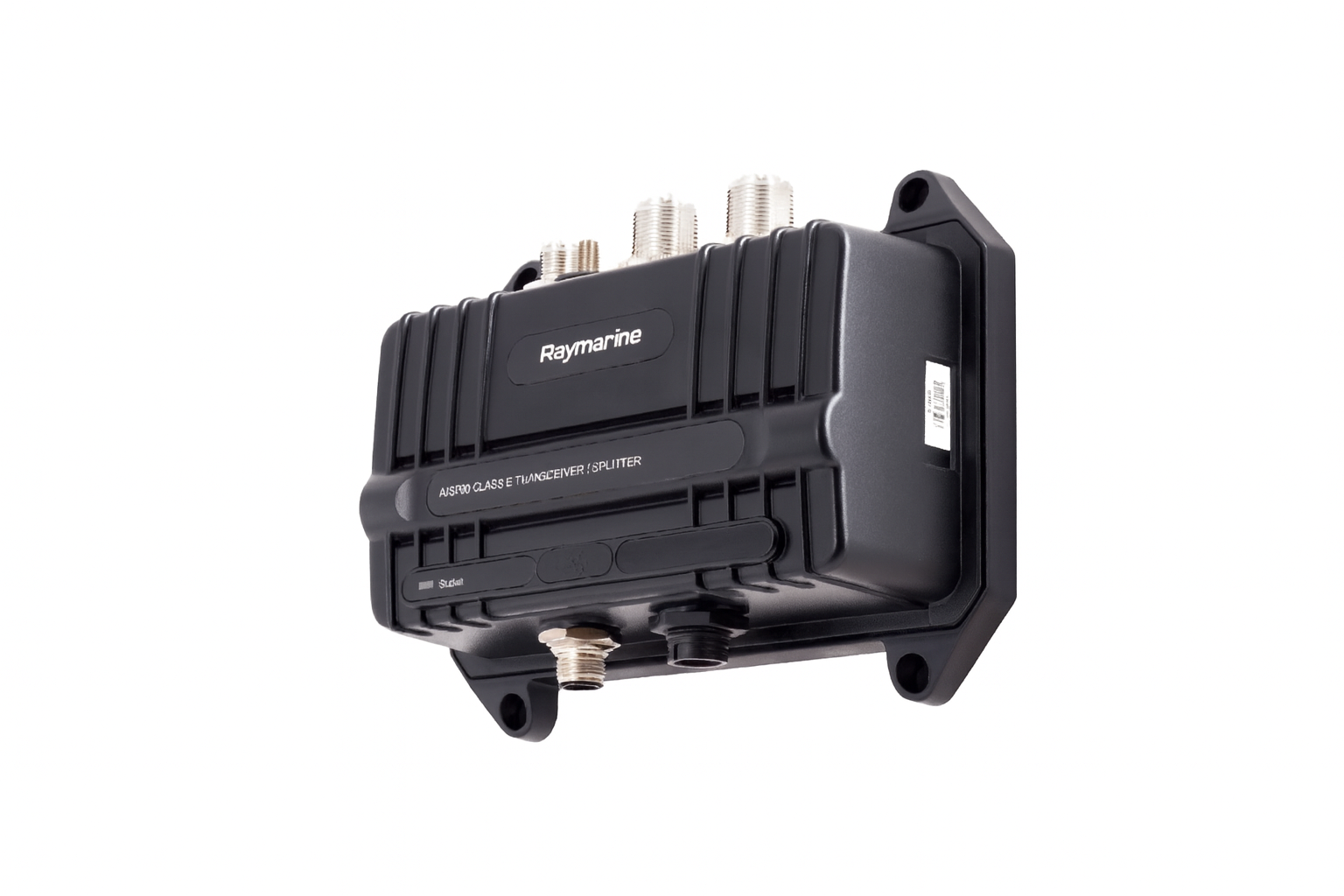

AIS700 Class B Transceiver with integrated antenna splitter
€1,195.00 ex. VAT 19%
The AIS700 from Raymarine is a Class B Automatic Identification System (AIS) transceiver designed for use with Raymarine multifunction navigation display systems. As a Class B AIS transceiver, the AIS700 not only receives broadcasts from other vessels, it also transmits your own boat’s information too helping you to be seen on other vessels’ systems.
Ordering Information
AIS700 Class B Transceiver with integrated antenna splitter
Automatic Identification Systems – AIS |
E70476 | AIS700 Class B Transceiver with integrated splitter | € 1.195,00 |
Specifications
ENVIRONMENTAL SPECIFICATIONS |
|
---|---|
Model | AIS700 Class B Transceiver with integrated antenna splitter E70476 |
Operating temperature | -15°C to +55°C |
Storage temperature | -20°C to +75°C |
Water ingress | IPX6 and IPX7 |
Humidity | Up to 93% @ 40°C |
POWER SPECIFICATIONS |
|
---|---|
Power Supply | 12v and 24 nominal |
Power Consumption | <3W |
Peak current | 3A |
Load Equivalency Number | 1 LEN |
RF SPECIFICATIONS SPECIFICATIONS |
|
---|---|
DSC Receiver | Implemented by time sharing with one TDMA receiver |
Receiver 1 band | 156.025 MHz to 162.025 MHz (in 25KHz steps) |
Receiver 2 band | 156.025 MHz to 162.025 MHz (in 25KHz steps) |
Transmitter band | 156.025 MHz to 162.025 MHz (in 25KHz steps) |
Transmitter specification | To meet IEC 62287-2 relevant sections |
Receiver specification | To meet IEC 62287-2 relevant sections |
Transceiver specification | To meet IEC 62287-2 relevant sections |
GPS receiver | u-blox MAX-M8W |
GPS receiver channels | 72 channels |
GPS Cold start acquisition time | 26s nominal |
Positional source | GPS & GLONASS |
AIS performance | 5W SOTDMA |
