WhisperPower Switched Mode technology ensures a minimal energy loss and the highest output quality.

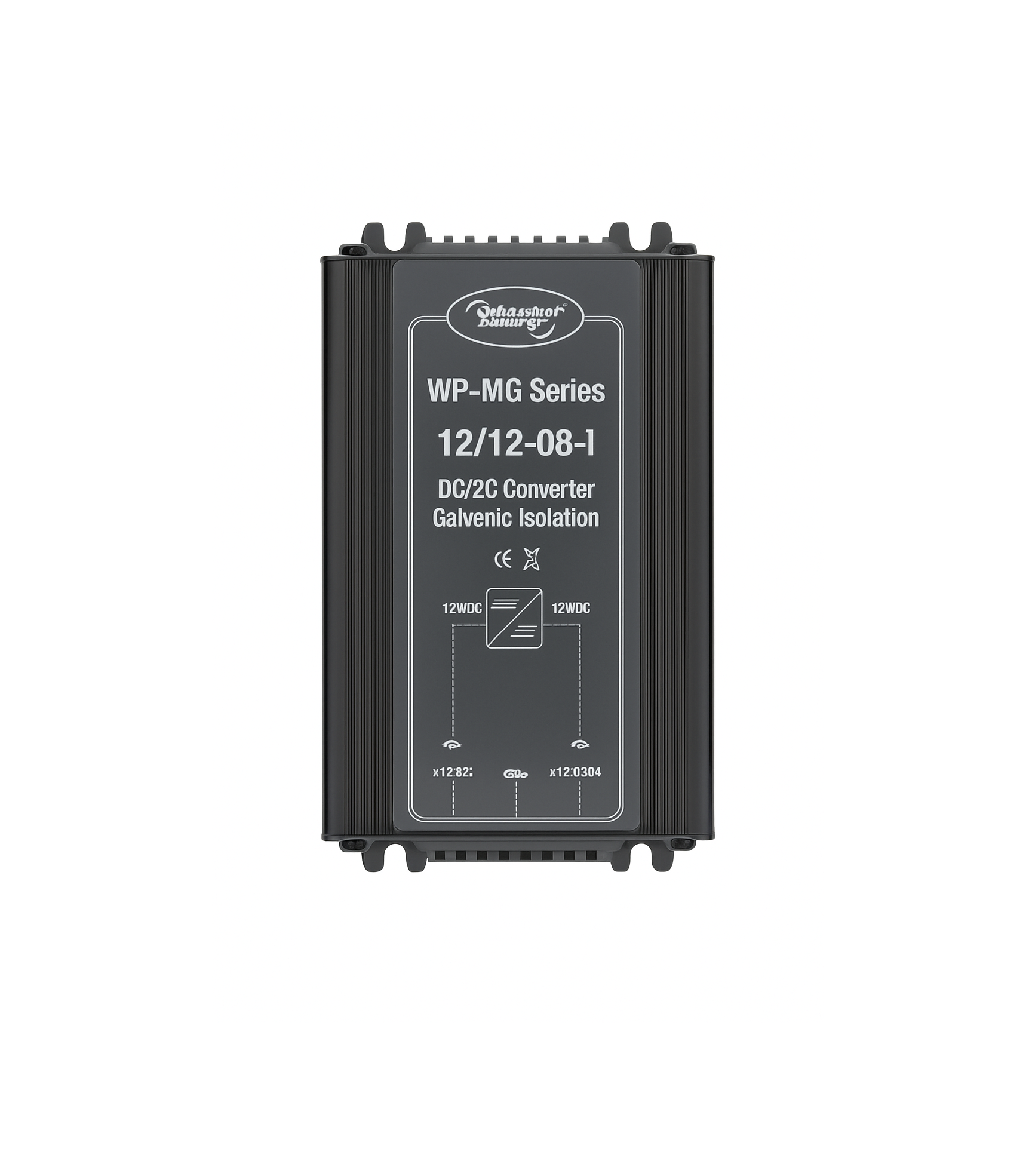

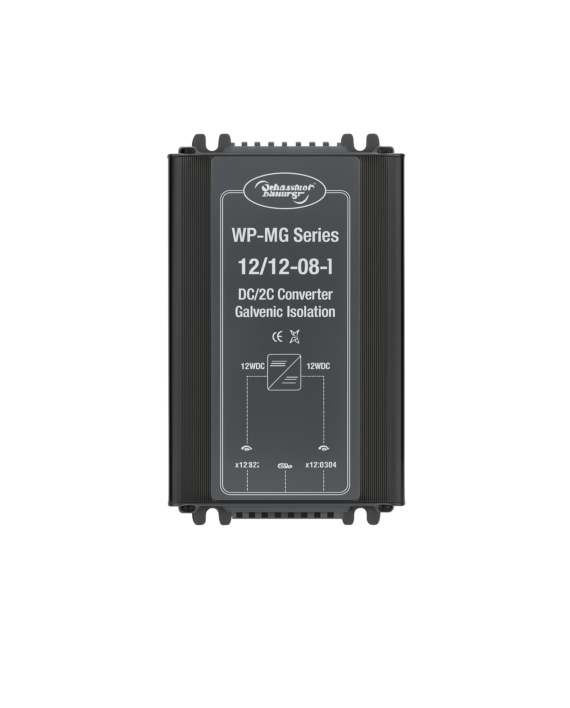

MG 12/12-08-I DC/DC converter, galvanic Isolated
€167.00 ex. VAT 19%
DC/DC voltage stabilizer MG 12-12 VDC 8 A -i. Delivers a constant output voltage to protect sensitive electronic equipment. Always 12 VDC and 8 A regardless of fluctuations in the supply voltage from your battery. Galvanic isolated, which means that the power circuits are separated.
Ordering Information
| 60110019 | MG 12/12-08-I DC/DC converter, galvanic Isolated | € 167,00 |
Specifications
| Specifications | |
|---|---|
| Converter type | Step up an voltage stabilizing |
| Input | |
| Nominal input voltage | 12 VDC |
| Input range, full output specifications | 9..18 VDC |
| Input range, no defects | 0..18 VDC |
| Output | |
| Nominal output voltage | 12.5 VDC |
| Voltage adjustment | Yes |
| Output accuracy | 3% |
| Output voltage ripple, peakpeak | 1% |
| Maximum output power | 110 W |
| Continue output power | 110 W |
| Maximum output current | 8 A |
| Continue output current at 40 C | 8 A |
| General | |
| Efficiency | >87% |
| No load consumption | <2 5mA |
| Ambient operating temperature | -10 °C .. + 40 °C |
| Storage temperature | -25 °C .. + 85 °C |
| Operating humidity | 95%, non-condensing |
| Galvanic insulation | Yes, 500 VAC |
| Cooling concept | Forced ventilation |
| Protections | |
| Overcurrent / short circuit | Limited by current sensing |
| Over heat, shutdown | Limited power by temperature sensing |
| Mechanical | |
| Connections input/output, Faston max wire |
6 mm² |
| Enclosure Dimensions (HxWxD) | 50 x 151 x 88 mm |
| Mounting holes footprint | Dia 4 mm 58 x 143 |
| Weight | 1.4Kg |
| Protection class | IP20 |
| Enclosure no. | Frame 8 |
| Enclosure Material | Anodized aluminium, ABS end covers |
| Enclosure Colour | RAL 9011 |
| Comply to the following standards | EN61000-6-3 (EN55022) EN61000-6-2 (EN61000-2/3/4, EN61000-4- 3) LVD 73/23/EEC (EN60335-1), e4-95/54/EC, RoHS 2002/95/EC |
